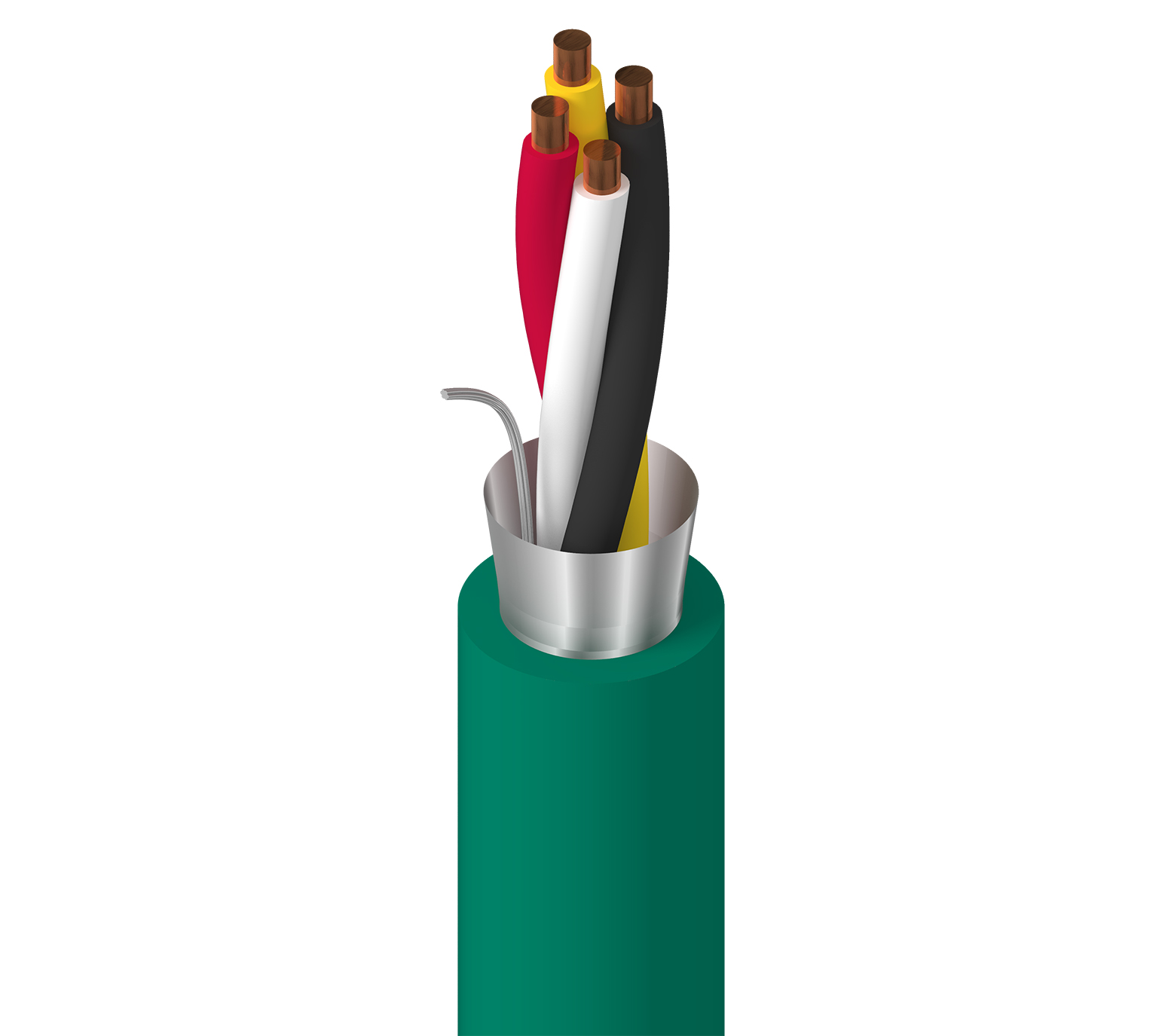

77906ELV

KNX, 2PR 0.8mm Sol BC, LSZH ins, OS, LSZH Jkt, B2ca

...
KNX, 2 Pairs, 0.8 mm cond diameter, Bare Copper - Solid,LSZH insulation, Overall Beldfoil® shielding, LSZH / FRNC jacket , CPR B2ca
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

KNX, EIB cable for building management

Physical Characteristics (Overall)
Conductor
Stranding Material Nominal Diameter No. of Pairs
Solid BC - Bare Copper 0.8 mm 2

Conductor Count

4

Insulation
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.6 mm 0.05 mm 0.4 mm
Color Chart
Number Color
Quad 1 White & Red & Yellow & Black
Outer Shield
Type Material Material Trade Name Coverage [%] Thickness of Foil Drainwire Material Drainwire Diameter
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% 9 µm TC - Tinned Copper 0.4 mm
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.3 mm 1.2 mm
Construction and Dimensions
Cabling
Description
1 quad covered with a polyester foil
Electrical Characteristics
Conductor DCR
Max. Conductor DCR
37.5 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
70 pF/m
Voltage
Voltage Rating [V]
300 V

Electrical Characteristics Notes

Testvoltage 4 kV, 1 min

Temperature Range

Storage Temperature Range

-30°C to +70°C

Operating Temperature Range

-20°C To +70°C

Mechanical Characteristics

Min. Bend Radius During Installation

63 mm

Min Setting Radius

31 mm
Standards

CPR Euroclass

B2ca-s1,d1,a1

Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass B2ca
Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2, IEC 60332-3-24

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

Product Notes

Notes

KNX REG 109/16282/19

History

Update and Revision

Revision Number: 0.63 Revision Date: 06-28-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
77906ELV.00500
77906ELV.0500 Green Reel 500 m 8719605193513
