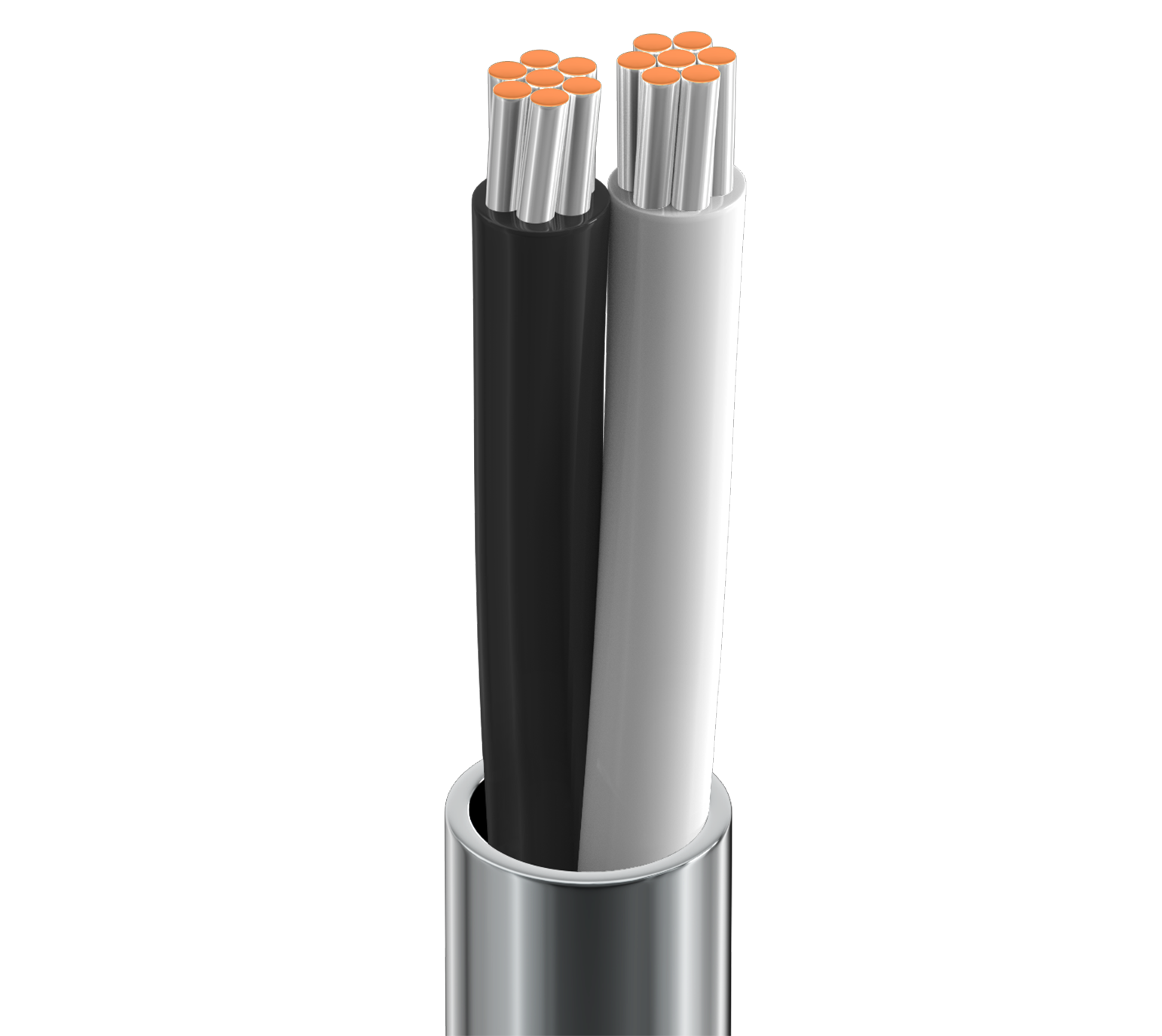

8461

Electronic, 2 C #18 Str TC, PVC Ins, PVC Jkt, CMG

...
Electronic, 2 Conductor 18AWG (7x26) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG

Regions Available: Global
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 18 AWG 7x26 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC - Polyvinyl Chloride 0.022 in (0.56 mm) 0.090 in (2.3 mm) Black & White
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.027 in (0.69 mm) 0.234 in (5.94 mm)

Overall Cable Diameter (Nominal)

0.234 in (5.94 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Pair(s) 7.2 Ohm/1000ft 22 pF/ft (72 pF/m) 14 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V (CMG), 300 V (CL3)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
2.3 in (58 mm) 2.3 in (58 mm)

Max. Pull Tension

45 lbs (20 kg)

Bulk Cable Weight

26 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL 1685 UL loading , FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, Article 800, CMG, CL3

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.518 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
8461 060100 Chrome Reel 100 ft 612825208167
8461 060500 Chrome Reel 500 ft 612825208181 C
8461 060U500 Chrome UnReel 500 ft 612825208150
8461 0601000 Chrome Reel 1,000 ft 612825208174 C
8461 060U1000 Chrome UnReel 1,000 ft 612825208143
8461 0605000 Chrome Reel 5,000 ft 612825208198
