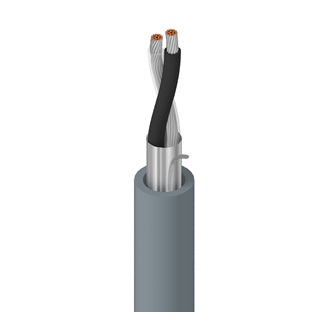

Product Number: 8760PE
Electronic, 2 C #18 Str TC, PE Ins, OS, PE Jkt
Electronic, 2 Conductor 18AWG (16x30) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PE Outer Jacket
-
Availability:
Global
-
Global inventory:
Capability
Specifications
Product Overview
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 18 | 16x30 | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PE - Polyethylene | 0.0175 in (0.445 mm) | 0.082 in (2.1 mm) | Black & White |
Inner Shield
| Drainwire Type |
|---|
| 20 AWG (7x28) TC |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
Outer Jacket
| Nom. Thickness | Nom. Diameter |
|---|---|
| 0.89 mm (0.035 in) | 6.0 mm (0.24 in) |
|
Overall Cable Diameter (Nominal) |
6.0 mm (0.24 in) |
|---|
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|
| 21.3 Ohm/km (6.49 Ohm/1000ft) | 98 pF/m (30 pF/ft) | 144 pF/m (43.9 pF/ft) | 4.9 Amps per Conductor at 25ºC |
Voltage
| Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| Operating | Installation | Storage |
|---|---|---|
| -45°C To +70°C | -15°C To +70°C | -45°C To +70°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.22 in (56.4 mm) | 2.22 in (56.4 mm) |
|
Max. Pull Tension |
41.6 lbs (18.9 kg) |
|---|
Standards and Compliance
|
Environmental Suitability |
Water Exposure/Below-Grade Conduit, Indoor, Non-Halogenated, Sunlight Resistance |
|---|---|
|
European Halogen Free Standards |
IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
|
European Directive Compliance |
EU CE Mark |
|
UK Regulation Compliance |
UKCA Mark |
Product Notes
|
Notes |
This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 6km for the first order. This product will have Black as standard color and 305mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 8760NH. Please liaise with your Belden representative for confirmation. |
|---|
History
|
Update and Revision |
Revision Number: 0.4 Revision Date: 03-19-2025 |
|---|
