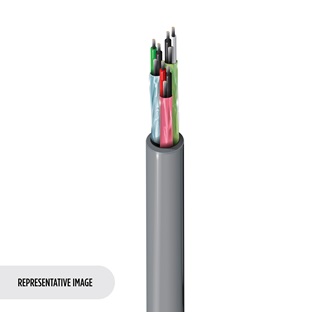

Product Number: 8777ELW
Audio, Control & Instrument, #22-3pr, PP, Indiv. Foil, LSZH Jkt, Cca
Audio, Control & Instrument Cable, 3-Pair, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, individually shielded pairs (100% coverage), 22 AWG stranded tinned copper drain wire, LSZH jacket, CPR Cca
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|
| 22 | 7x30 | TC - Tinned Copper | 0.03 mm | 3 |
|
Conductor Count |
6 |
|---|
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| PP - Polypropylene | 1.27 mm | 0.05 mm | 0.01 in |
Color Chart
| Number | Color |
|---|---|
| Pair 1 | Black & Red |
| Pair 2 | Black & White |
| Pair 3 | Black & Green |
|
Table Notes |
Shielded pairs |
|---|
Color Chart 2
| Number | Color |
|---|---|
| Pair 1 | Red |
| Pair 2 | Green |
| Pair 3 | Blue |
Inner Shield
| Type | Layer | Material | Material Trade Name | Coverage [%] | Thickness of Foil | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|---|---|
| Tape | 1 | Bi-Laminate (Alum+Poly) | Beldfoil® (Z-Fold®) | 100% | 9 / 12 µm | TC - Tinned Copper | AWG22/7 |
| Polyester |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 7.00 mm | 0.89 mm |
Construction and Dimensions
Stranding
| Twists |
|---|
| 6.86 twist/ft |
Cabling
| Description |
|---|
| 3 wires twisted to cable core |
Electrical Characteristics
Conductor DCR
| Individual Pair Nominal Shield DCR | Nominal Conductor DCR | Nominal Inner Shield DCR |
|---|---|---|
| 10.6 Ohm/1000ft | 49.2 Ohm/km | 34.8 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 98.4 pF/m | 180.4 pF/m |
Inductance
| Nominal Inductance | Nominal Pair Inductance |
|---|---|
| 0.18 µH/ft | 0.59 µH/m |
Impedance
| Nominal Characteristic Impedance |
|---|
| 50 Ohm |
Delay
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66% |
Current
| Element | Max. Recommended Current [A] |
|---|---|
| Conductor(s) | 2 A |
Voltage
| Voltage Rating [V] |
|---|
| 300 V |
Temperature Range
|
Installation Temperature Range |
-15°C To +80°C |
|---|---|
|
Storage Temperature Range |
-45°C To +80°C |
|
Operating Temperature Range |
-20°C To +80°C |
|
Operating Temp Range (Flexible Install) |
-15°C To +80°C |
|
Operating Temp Range (Fixed Install) |
-45°C To +80°C |
Mechanical Characteristics
|
Oil Resistance |
IEC 60811-404 |
|---|---|
|
Max. Pull Tension |
180 N |
|
Min. Bend Radius During Installation |
70 mm |
|
Min. Bend Radius/Minor Axis |
2.75 in |
Standards
|
CPR Euroclass |
Cca-s1,d1,a1 |
|---|---|
|
CENELEC Compliance |
EN 50290-2-20 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Euroclass Cca |
|---|---|
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Non-Halogenated |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
|
IEC 61034-2 - Smoke Density Min. Transmittance |
60% |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
History
|
Update and Revision |
Revision Number: 0.43 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.43 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # |
|---|
| 8777ELW.00305 |
| 8777ELW.01305 |
