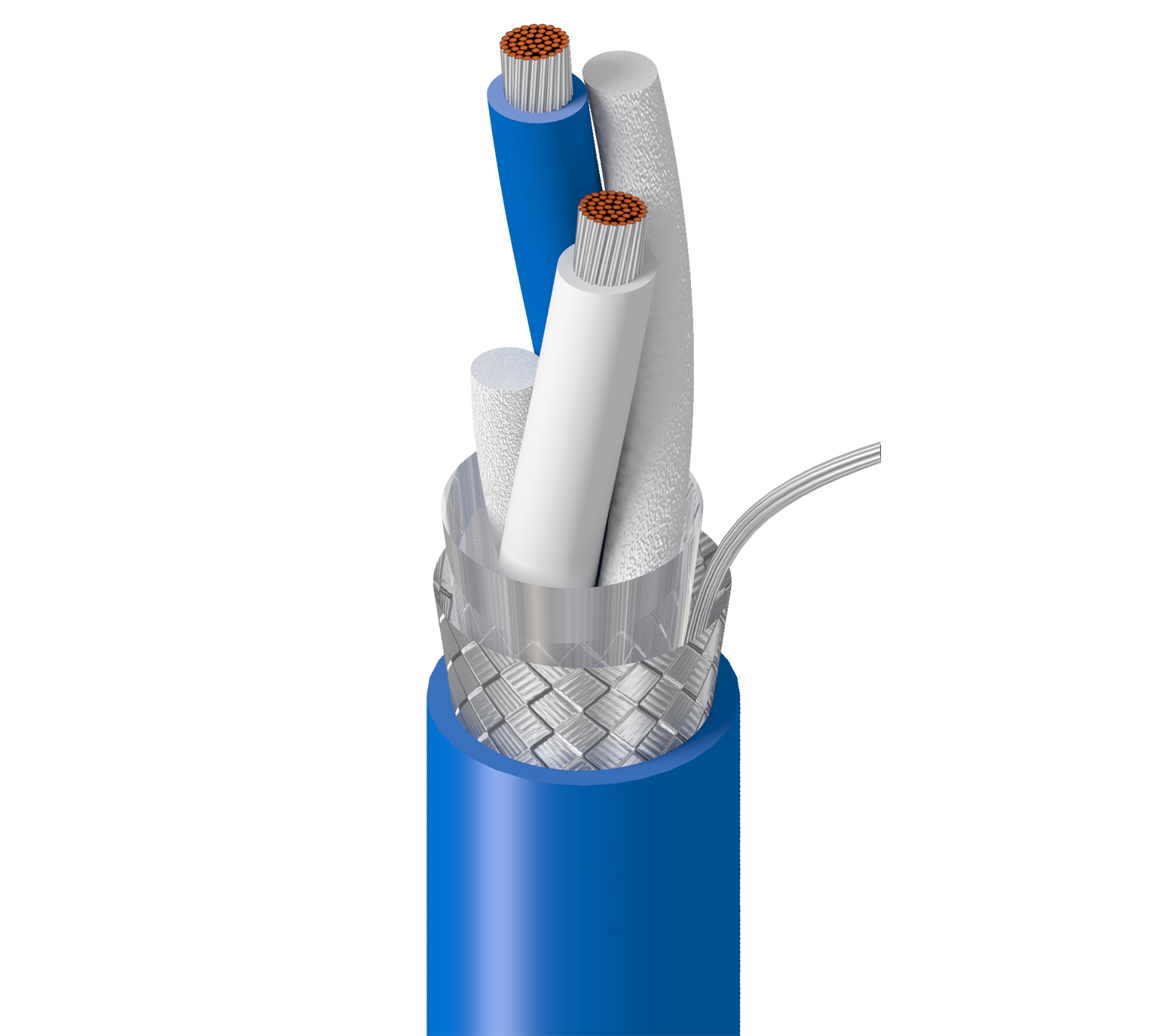

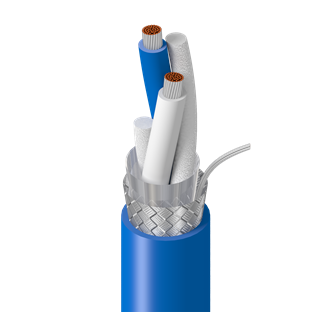

Blue Hose®, 1 Pr #20 Str TC, PE Ins Blu, Clr, Foil+TC Brd, PVC Jkt, CM
|
Suitable Applications |
harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc. |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 20 AWG | 7x28 | TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|---|
| Pair(s) | PE - Polyethylene | 0.019 in (0.48 mm) | 0.0755 in (1.92 mm) | Clear & Blue | Twinax with rod fillers |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
| Braid | Tinned Copper (TC) | 60% |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.037 in (0.94 mm) | 0.238 in (6.05 mm) |
|
Table Notes |
Jacket OD +/- 0.003 |
|---|---|
|
Overall Cable Diameter (Nominal) |
0.238 in (6.05 mm) |
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. |
|---|---|---|---|---|---|---|
| Pair(s) | 9.5 Ohm/1000ft | 19.7 pF/ft (64.6 pF/m) | 37 pF/ft | 36 pF/ft | 78 Ohm | 66% |
|
Nom. Outer Shield DCR |
4.1 Ohm/1000ft (13 Ohm/km) |
|---|
| Element | Frequency [MHz] | Nom. Insertion Loss (Attenuation) |
|---|---|---|
| Pair(s) | 1 | 0.6 dB/100ft |
| 10 | 2.1 dB/100ft | |
| 50 | 5.0 dB/100ft | |
| 100 | 7.5 dB/100ft | |
| 200 | 11.0 dB/100ft | |
| 400 | 16.0 dB/100ft |
| UL Voltage Rating |
|---|
| 300 V (CM, CL2), 300 V (UL AWM 2464) |
| UL Temperature | Operating | Installation | Storage |
|---|---|---|---|
| 80°C | -40°C to +80°C | -40°C To +80°C | -40°C to +80°C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.4 in (61 mm) | 2.4 in (61 mm) |
|
Max. Pull Tension |
48 lbs (22 kg) |
|---|---|
|
Bulk Cable Weight |
36 lbs/1000ft |
|
Environmental Suitability |
Indoor, Outdoor, Sunlight Resistance |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 UL Loading, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 725, Article 800, CM, CL2 |
|
AWM Compliance |
AWM 2464 |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
Other Standard Compliance(s) |
P-7K-SC-182141-MSHA, Allen Bradley Part No. 1770-CD |
|
Plenum Number |
89463 |
|
Update and Revision |
Revision Number: 0.613 Revision Date: 04-30-2024 |
|---|
