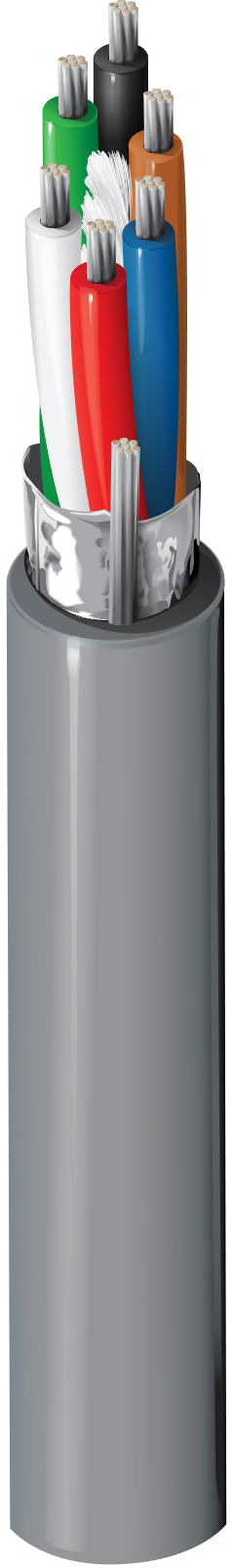

9536ELV

RS-232, 6C #24 Str TC, PO ins, OS, LSZH Jkt, 300V, B2ca

...
24 AWG stranded (7x32) tinned copper conductors, 6 conductors cabled, PE insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, LSZH jacket, Flame resistance IEC 60332-1-2, B2ca
Life Cycle Status: Capability
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Instrumentation and computer cable; For EIA RS-232 data transmission applications

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
24 7x32 TC - Tinned Copper 6

Conductor Count

6

Insulation
Material Nominal Diameter Diameter +/- Tolerance
PE - Polyethylene (Foam) 1.12 mm 0.05 mm
Color Chart
Number Color
Wire 1 Black
Wire 2 White
Wire 3 Red
Wire 4 Green
Wire 5 Brown
Wire 6 Blue
Outer Shield
Type Material Material Trade Name Thickness of Foil Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® 9 / 12 µm TC - Tinned Copper AWG24/7
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.0 mm 1.2 mm
Construction and Dimensions
Cabling
Description Filler
1 center filler and 6 wires twisted to cable core Cotton (White)
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
82 Ohm/km 59.1 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
108.3 pF/m 213.3 pF/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance
N/A 75 Ohm
Current
Element Max. Recommended Current [A]
Conductor(s) 1.75 Amps per Conductor
Voltage
Voltage Rating [V]
300 V
Temperature Range

Installation Temperature Range

-15°C To +80°C

Storage Temperature Range

-45°C To +80°C

Operating Temp Range (Flexible Install)

-15°C To +80°C

Operating Temp Range (Fixed Install)

-45°C To +80°C

Mechanical Characteristics

Oil Resistance

IEC 60811-404

Max. Pull Tension

150 N

Min. Bend Radius During Installation

55 mm

Standards

CPR Euroclass

B2ca-s1,d1,a1

CENELEC Compliance

EN 50290-2-20
Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass B2ca
Suitability

Suitability - Indoor

Yes

Suitability - Non-Halogenated

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

IEC 61034-2 - Smoke Density Min. Transmittance

60%

Product Notes

Notes

This is a preliminary Technical Design Specification (TDS). The minimum business quantity to offer is 3km for the first order. This product will have Chrome as standard color and 305mt or 500mt as standard put-ups. Additional options for colors and put-ups are available on special request. The estimated production lead time for the first order will be similar to the production lead time of 9536ELW. Please liaise with your Belden representative for confirmation.

History

Update and Revision

Revision Number: 0.32 Revision Date: 06-19-2024
