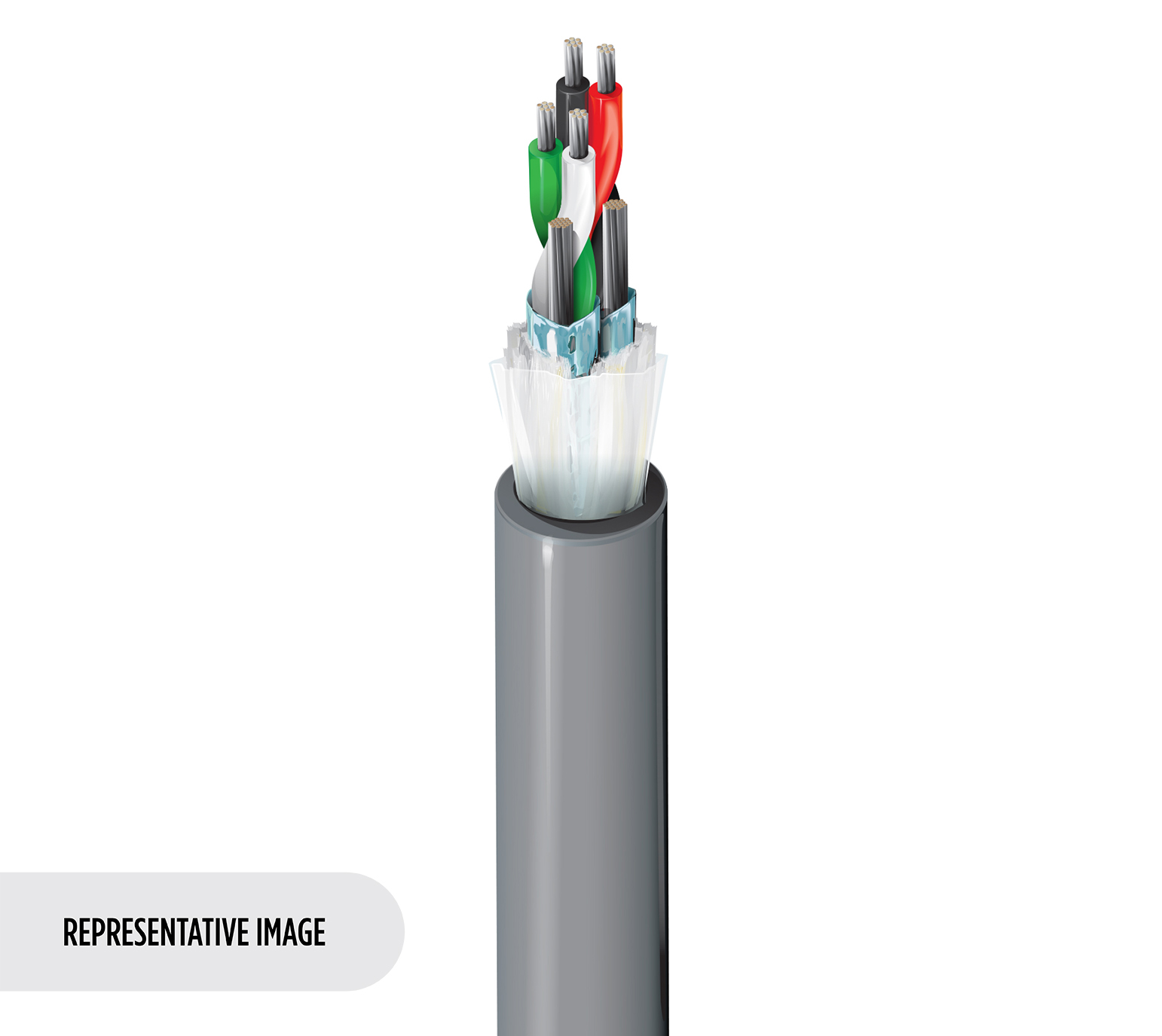

9729ELW

RS232/422 Low Cap, #24-2pr, FPO, Indiv. Foil, LSZH Jkt, 100Ω, Cca

...
Computer EIA RS-232/422, Digital Audio Cable, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, 2 twisted pairs each individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire each pair, LSZH jacke, CPR Cca
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
24 7x32 TC - Tinned Copper 2

Conductor Count

4

Insulation
Material Material Trade Name Nominal Diameter Diameter +/- Tolerance
PE - Polyethylene (Foam) Datalene® 1.55 mm 0.06 mm
Color Chart
Number Color
Pair 1 Black & Red
Pair 2 Black & White

Table Notes

Shielded pairs

Color Chart 2
Number Color
Pair 1 Red
Pair 2 Green
Inner Shield
Type Material Material Trade Name Coverage [%] Thickness of Foil Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 100% 9 / 12 µm TC - Tinned Copper AWG24/7 7x32
Outer Jacket
Material Nominal Diameter Min. Wall Thickness Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 8.10 mm 0.9 mm 1.3 mm
Construction and Dimensions
Stranding
Twists
10.9 twist/ft
Cabling
Description
2 pairs twisted to cable core
Electrical Characteristics
Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR Nominal Inner Shield DCR
15 Ohm/1000ft 78.7 Ohm/km 59.1 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
41 pF/m 76.1 pF/m
Inductance
Nominal Inductance Nominal Pair Inductance
0.23 µH/ft 0.49 µH/m
Impedance
Nominal Characteristic Impedance
100 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]
0.384 MHz
0.7056 MHz
0.768 MHz
1.024 MHz
1.4112 MHz
1.536 MHz
2.048 MHz
2.8224 MHz
3.072 MHz
4.096 MHz
5.6448 MHz
6.144 MHz
8.192 MHz
11.2896 MHz
12.288 MHz
24.576 MHz
Delay
Nominal Velocity of Propagation (VP) [%]
76%
High Frequency
Frequency [MHz]
0.384 MHz
0.7056 MHz
0.768 MHz
1.024 MHz
1.4112 MHz
1.536 MHz
2.048 MHz
2.8224 MHz
3.072 MHz
4.096 MHz
5.6448 MHz
6.144 MHz
8.192 MHz
11.2896 MHz
12.288 MHz
24.576 MHz
Current
Element Max. Recommended Current [A]
Conductor(s) 1 A
Voltage
Voltage Rating [V]
300 V
Temperature Range

Installation Temperature Range

-15°C To +80°C

UL Temp Rating

80°C

Storage Temperature Range

-45°C To +80°C

Operating Temperature Range

-20°C To +80°C

Operating Temp Range (Flexible Install)

-15°C To +80°C

Operating Temp Range (Fixed Install)

-45°C To +80°C

Mechanical Characteristics

Oil Resistance

IEC 60811-404

Max. Pull Tension

22 lbs

Min. Bend Radius During Installation

79 mm

Min. Bend Radius/Minor Axis

3.25 in
Standards

CPR Euroclass

Cca-s1,d1,a1

CENELEC Compliance

EN 50290-2-20
Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass Cca

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Non-Halogenated

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

IEC 61034-2 - Smoke Density Min. Transmittance

60%

Plenum/Non-Plenum

Plenum (Y/N)

No

Product Notes

Notes

Datalene« insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

History

Update and Revision

Revision Number: 0.38 Revision Date: 06-28-2024

Show All Specifications
Hide Specifications
Part Numbers
Item #
9729ELW.00500
