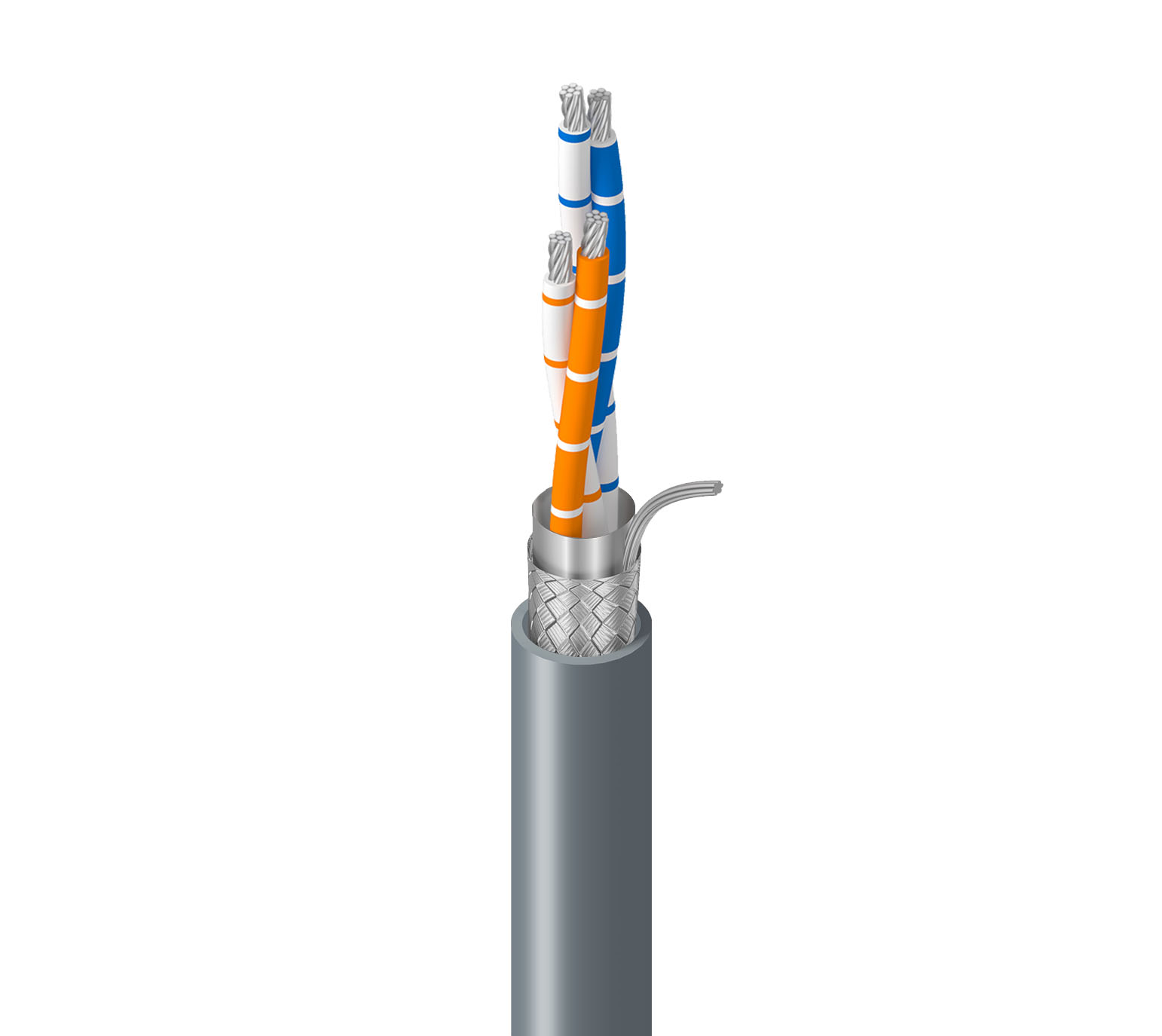

RS-485, 2 Pr #24 Str TC, PO Ins, OS+TC Brd, LSZH Jkt, Dca
|
Suitable Applications |
RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc. |
|---|
| Size | Stranding | Material |
|---|---|---|
| 24 | 7x32 | TC - Tinned Copper |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene | 1.73 mm (0.0681 in) | White/Blue & Blue/White, White/Orange & Orange/White |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Braid | Tinned Copper (TC) | 90% |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.9 mm (0.035 in) | 8.65 mm (0.341 in) |
|
Table Notes |
UV Stabilised |
|---|---|
|
Overall Cable Diameter (Nominal) |
8.65 mm (0.341 in) |
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|
| 78.7 Ohm/km (24.0 Ohm/1000ft) | 42 pF/m (13 pF/ft) | 75.5 pF/m | 120 Ohm | 66% | 2.1 Amps per Conductor |
|
Nom. Outer Shield DCR |
7.2 Ohm/km (2.2 Ohm/1000ft) |
|---|
| Frequency [MHz] | Nom. Insertion Loss (Attenuation) |
|---|---|
| 1 | 1.97 dB/100m |
| Operating | Installation | Storage |
|---|---|---|
| -45°C To +80°C | -15°C To +80°C | -45°C To +80°C |
| Stationary Min. | Installation Min. |
|---|---|
| 43 mm (1.7 in) | 86 mm (3.4 in) |
|
Max. Pull Tension |
395 N (88.8 lbf) |
|---|---|
|
Bulk Cable Weight |
49 lbs/1000ft |
|
Environmental Suitability |
Indoor - Euroclass Dca, Indoor, Non-Halogenated, Sunlight Resistance, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
IEC 60332-1-2, IEC 60332-3-24 |
|
CPR Compliance |
CPR Euroclass: Dca-s2,d2,a1; CPR UKCA Class: Dca-s2,d2,a1 |
|
ISO/IEC Compliance |
IEC 61034-2 - Smoke Density Min Transmittance = 60% |
|
CENELEC Compliance |
EN 50290-2-20 |
|
European Halogen Free Standards |
IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
|
European Directive Compliance |
EU CE Mark |
|
UK Regulation Compliance |
UKCA Mark |
|
Other Standard Compliance(s) |
DMX-512 |
|
Update and Revision |
Revision Number: 0.509 Revision Date: 06-28-2024 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 9842NH.02500 | Black | Reel | 500 m | 8719605023308 | |
| 9842NH.02520 | Black | Reel | 520 m | 8719605172129 | |
| 9842NH.021000 | Black | Reel | 1,000 m | 8719605155405 | |
| 9842NH.022500 | Black | Reel | 2,500 m | 8719605023292 | |
| 9842NH.00152 | Chrome | Reel | 152 m | 8719605023230 | |
| 9842NH.00305 | Chrome | Reel | 305 m | 8719605023254 | |
| 9842NH 060500 | Chrome | Reel | 500 ft | 612825259572 | |
| 9842NH.00500 | Chrome | Reel | 500 m | 8719605023261 | |
| 9842NH 0601000 | Chrome | Reel | 1,000 ft | 612825259565 | C |
| 9842NH 0601000 | Chrome | Reel | 1,000 ft | 612825259565 | C |
| 9842NH.001000 | Chrome | Reel | 1,000 m | 8719605023223 | |
| 9842NH.002500 | Chrome | Reel | 2,500 m | 8719605023247 | |
| 9842NH.01305 | White | Reel | 305 m | 8719605023285 | |
| 9842NH.01500 | White | Reel | 500 m | 8719605184795 | |
| 9842NH.011000 | White | Reel | 1,000 m | 8719605023278 |
