Audio, Control & Instrument, #20-6pr, PO, Indiv. Foil, HDPE Jkt, Direct Burial

...

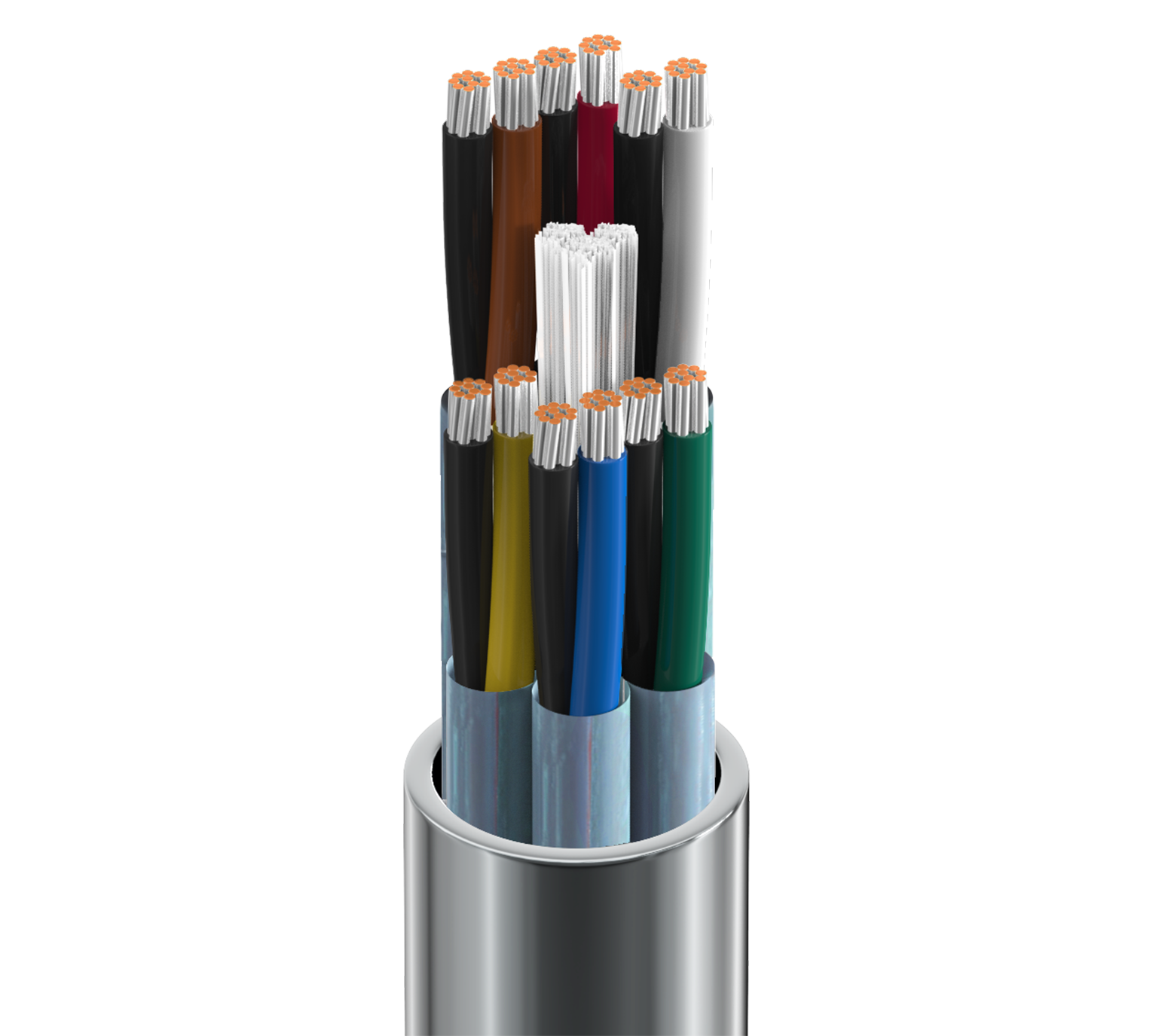

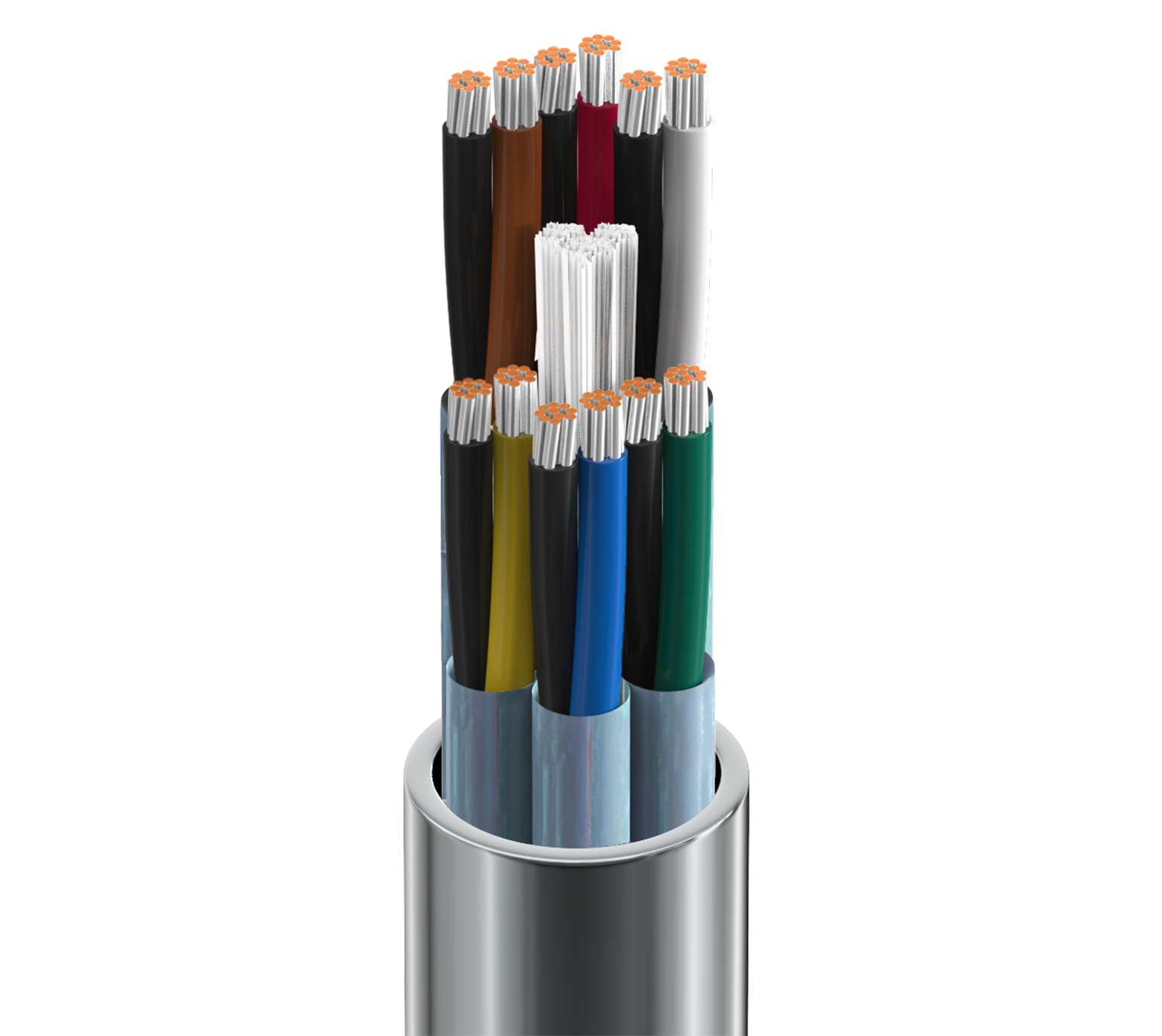

Audio, Control & Instrument Cable, 20 AWG stranded (10x30) tinned copper conductors, polypropylene insulation, 6 twisted pairs, individually shielded with Beldfoil® (100% coverage), 22 AWG stranded tinned copper drain wire, high-density polyethylene jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Computer Communication; Panel Wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 6 20 AWG 10x30 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP - Polypropylene 0.013 in (0.33 mm) 0.063 in (1.6 mm) Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown
Inner Shield
Element Shield Type Material Coverage Drainwire Type Notes
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (19x34) TC each pair
Outer Jacket
Material Nom. Thickness Nom. Diameter
PE - Polyethylene 0.045 in (1.1 mm) 0.455 in (11.6 mm)

Table Notes

HDPE

Overall Cable Diameter (Nominal)

0.455 in (11.6 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 11.3 Ohm/1000ft 11 Ohm/1000ft (36 Ohm/km) 30 pF/ft (98 pF/m) 55 pF/ft (180 pF/m) 50 Ohm 66% 2.7 Amps per Conductor at 25ºC
Voltage
Voltage Rating
350 V
Mechanical Characteristics
Temperature
Operating
-40°C to +80°C
Bend Radius
Stationary Min. Installation Min.
4.6 in (120 mm) 4.6 in (120 mm)

Max. Pull Tension

213 lbs (96.6 kg)

Bulk Cable Weight

97 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Burial

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.488 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC Footnote
9886 0101000 Black 612825260004 C
9886 010500 Black 612825260011 C
