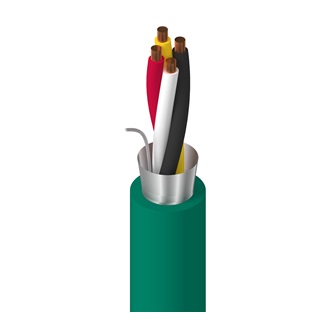

YE00820

KNX, 2PR 0.8mm Sol BC, PE ins,OS, PVC jkt, Eca

...
KNX, 2 Pair, 0.8 mm cond diameter, Bare Copper - Solid, PE insulation, Overall Beldfoil® shielding, PVC jacket , CPR Eca
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

KNX, EIB cable for building management

Physical Characteristics (Overall)
Conductor
Stranding Material Cross Section Nominal Diameter No. of Conductors No. of Pairs
Solid BC - Bare Copper 0.5 mm² 0.8 mm 4 2

Conductor Count

4

Total Number of Pairs

2

Insulation
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
PE - Polyethylene 1.4 mm 0.05 mm 0.3 mm
Color Chart
Number Color
Quad 1 White & Red & Yellow & Black
Outer Shield
Type Material Material Trade Name Coverage [%] Thickness of Foil Drainwire Material Drainwire Diameter
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% 9 µm TC - Tinned Copper 0.4 mm
Outer Jacket
Material Nominal Diameter Diameter - Tolerance Nominal Wall Thickness
PVC - Polyvinyl Chloride 6.1 mm 0.3 mm 1.2 mm
Construction and Dimensions
Cabling
Description
1 quad covered with a polyester foil
Electrical Characteristics
Conductor DCR
Max. Conductor DCR
37.5 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
50 pF/m
Voltage
Voltage Rating [V]
300 V

Electrical Characteristics Notes

Testvoltage 4 kV, 1 min

Temperature Range

Storage Temperature Range

-30°C to +70°C

Operating Temperature Range

-20°C To +70°C

Mechanical Characteristics

Min. Bend Radius During Installation

61 mm

Min Setting Radius

30 mm
Standards

CPR Euroclass

Eca

Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass Eca
Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2
History

Update and Revision

Revision Number: 0.191 Revision Date: 12-19-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
YE00820.00100 Green Reel 100 m 8719605112606
YE00820.00500 Green Reel 500 m 8719605112637
YE00820.001000 Green Reel 1,000 m 8719605112613
YE00820.001525 Green Reel 1,525 m 8719605112620
