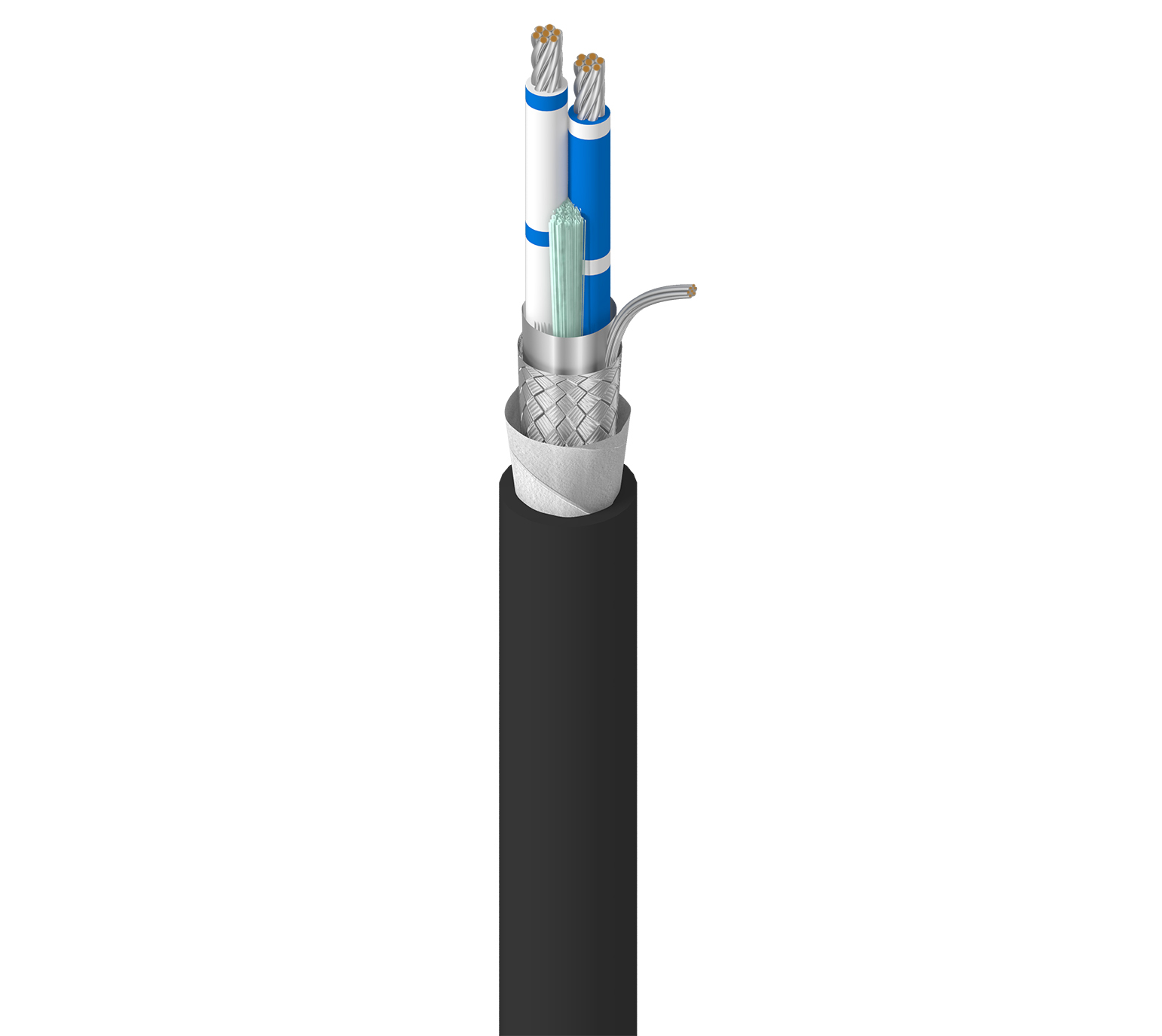

3105DB

RS-485, 1 Pr, 22AWG, Str TC, PE Ins, OS+TC Brd, CPE Jkt, CM, PLTC, Sun Res, Dir Bur, Oil Resistant

...
RS-485, 120 Ohm, 1 pair 22AWG (7x30) tinned copper Datalene® insulaton, Overall Foil + 65% Tinned Copper Braid, CPE jacket, CM, PLTC, SUN RES DIR BUR and oil-resistant
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

direct burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG 7x30 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Pair(s) PE - Polyethylene (Foam) 0.029 in (0.74 mm) 0.087 in (2.2 mm) White/Blue Stripe & Blue/White Stripe HDPE
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC
Braid Tinned Copper (TC) 65%

Waterblocking

Waterblock Tape

Outer Jacket
Material Nom. Thickness Nom. Diameter
CPE - Chlorinated Polyethylene 0.053 in (1.3 mm) 0.339 in (8.61 mm)

Overall Cable Diameter (Nominal)

0.339 in (8.61 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 18.2 Ohm/1000ft 11 pF/ft (36 pF/m) 20.9 pF/ft 120 Ohm 78% 6 Amps per Conductor at 30ºC

Nom. Outer Shield DCR

4.685 Ohm/1000ft (15.37 Ohm/km)

High Frequency (Nominal/Typical)
Element Frequency [MHz] Nom. Insertion Loss (Attenuation)
Pair(s) 1 0.5 dB/100ft
Voltage
UL Voltage Rating
300 V (CM, PLTC)
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
4.068 in (103.3 mm) 4.068 in (103.3 mm)

Max. Pull Tension

53.34 lbs (24.19 kg)

Bulk Cable Weight

49 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, Oil Resistance

Flammability / Reaction to Fire

UL 1685 UL Loading, IEC 60332-1-2

NEC / UL Compliance

Article 725, Article 800, CM, PLTC

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Oil Resistance: Passes Oil Res I & II Per UL1277, Table 10.17

History

Update and Revision

Revision Number: 0.217 Revision Date: 05-31-2024
