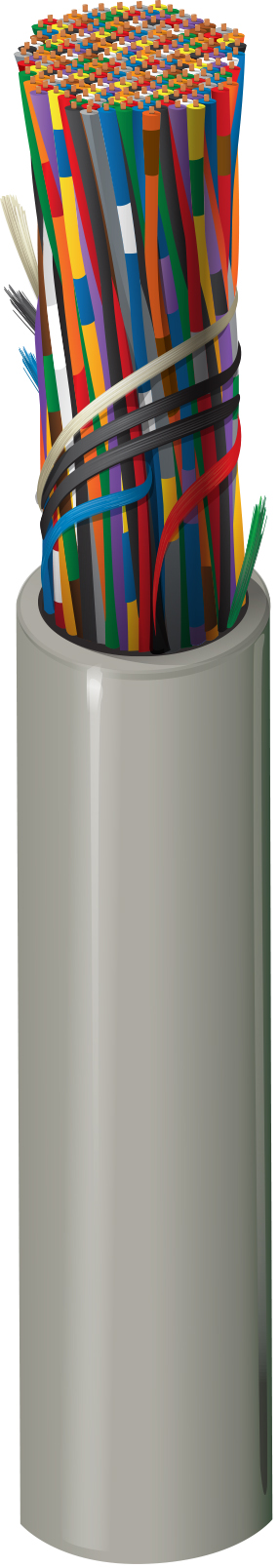

Product Number: DPLN300
CAT3 Backbone, 300pr, UTP, LS-PVC Jkt, CMP
CAT3, DIW 300-Pair, U/UTP-unshielded, Plenum-CMP, Premise Backbone Cable, 24 AWG solid bare copper conductors, LS-PVC insulation, ripcord, LS-PVC jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Premise Backbone Cable |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 300 |
|
Conductor Count |
600 |
|---|---|
|
Total Number of Pairs |
300 |
Insulation
| Material |
|---|
| PVC - Polyvinyl Chloride |
|
Bonded-Pair |
N/A |
|---|
Color Chart
| Number | Color |
|---|---|
| 1 | White/Blue & Blue/White |
| 2 | White/Orange & Orange/White |
| 3 | White/Green & Green/White |
| 4 | White/Brown & Brown/White |
| 5 | White/Slate & Slate/White |
| 6 | Red/Blue & Blue/Red |
| 7 | Red/Orange & Orange/Red |
| 8 | Red/Green & Green/Red |
| 9 | Red/Brown & Brown/Red |
| 10 | Red/Slate & Slate/Red |
| 11 | Black/Blue & Blue/Black |
| 12 | Black/Orange & Orange/Black |
| 13 | Black/Green & Green/Black |
| 14 | Black/Brown & Brown/Black |
| 15 | Black/Slate & Slate/Black |
| 16 | Yellow/Blue & Blue/Yellow |
| 17 | Yellow/Orange & Orange/Yellow |
| 18 | Yellow/Green & Green/Yellow |
| 19 | Yellow/Brown & Brown/Yellow |
| 20 | Yellow/Slate & Slate/Yellow |
| 21 | Violet/Blue & Blue/Violet |
| 22 | Violet/Orange & Orange/Violet |
| 23 | Violet/Green & Green/Violet |
| 24 | Violet/Brown & Brown/Violet |
| 25 | Violet/Slate & Slate/Violet |
| Group One Binder | White/Blue |
| Group Two Binder | White/Orange |
| Group Three Binder | White/Green |
| Group Four Binder | White/Brown |
| Group Five Binder | White/Slate |
| Group Six Binder | Red/Blue |
| Group Seven Binder | Red/Orange |
| Group Eight Binder | Red/Green |
| Group Nine Binder | Red/Brown |
| Group Ten Binder | Red/Slate |
| Group Eleven Binder | Black/Blue |
| Group Twelve Binder | Black/Orange |
Color Chart 2
| Number | Color |
|---|---|
| 1 | Blue/White |
| 2 | Orange/White |
| 3 | Green/White |
| 4 | Brown/White |
| 5 | Gray/White |
| 6 | Blue/Red |
| 7 | Orange/Red |
| 8 | Green/Red |
| 9 | Red/Brown |
| 10 | Red/Gray |
| 11 | Black/Blue |
| 12 | Black/Orange |
Outer Jacket
| Material | Material Trade Name | Nominal Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 1.350 in | Yes |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 93.8 Ohm/km | 5 % |
Capacitance
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 330 pF/100m | 17 pF/ft |
Delay
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|---|
| 16 MHz | 543 ns/100m | 45 ns/100m | 61% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. RL (Return Loss) [dB] | Max./Min. Fitted Impedance |
|---|---|---|---|---|---|---|---|
| 0.772 MHz | 2.2 dB/100m | 47.0 dB | 43.0 dB | 50.1 dB | 46.1 dB | ||
| 1 MHz | 2.6 dB/100m | 45.0 dB | 41.0 dB | 47.8 dB | 43.8 dB | 12.0 dB | 100 ± 15 Ohm |
| 4 MHz | 5.6 dB/100m | 36.0 dB | 32.0 dB | 36.0 dB | 32.0 dB | 12.0 dB | 100 ± 15 Ohm |
| 8 MHz | 8.5 dB/100m | 31.0 dB | 28.0 dB | 28.3 dB | 24.3 dB | 12.0 dB | 100 ± 15 Ohm |
| 10 MHz | 9.7 dB/100m | 30.0 dB | 26.0 dB | 26.2 dB | 22.3 dB | 12.0 dB | 100 ± 15 Ohm |
| 16 MHz | 13.1 dB/100m | 27.0 dB | 23.0 dB | 20.1 dB | 16.1 dB | 10.0 dB | 100 ± 15 Ohm |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
Installation Temperature Range |
0°C To +50°C |
|---|---|
|
Non-UL Temp Rating |
+60°C |
|
Storage Temperature Range |
-30°C To +60°C |
|
Operating Temperature Range |
-30°C To +60°C |
Mechanical Characteristics
|
Bulk Cable Weight |
1220 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
1800 lbs |
|
Min. Bend Radius During Installation |
27.0 in |
|
Min. Bend Radius/Minor Axis |
13.5 in |
Standards
|
NEC/(UL) Compliance |
CMP |
|---|---|
|
CEC/C(UL) Compliance |
CMP |
|
CPR Euroclass |
Eca |
|
Data Category |
Category 3 |
|
ANSI Compliance |
S-90-661-2012 Category 3, ANSI/NEMA WC-63.1 Category 3 |
|
TIA/EIA Compliance |
ANSI/TIA-568-C.2 Category 3 |
Applicable Environmental and Other Programs
|
Environmental Space |
Plenum |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
Yes |
|
EU CE Mark |
Yes |
|
EU REACH SVHC Compliance (yyyy-mm-dd) |
2017-07-10 |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Aerial |
No |
|---|---|
|
Suitability - Burial |
No |
|
Suitability - Hazardous Locations |
No |
|
Suitability - Indoor |
Yes |
|
Suitability - Non-Halogenated |
No |
|
Suitability - Oil Resistance |
No |
|
Suitability - Outdoor |
No |
|
Suitability - Sunlight Resistance |
No |
Flammability, LS0H, Toxicity Testing
|
CSA/C(UL) Flammability |
FT6 |
|---|---|
|
UL Flammability |
NFPA 262 Plenum (UL 910) |
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
Yes |
|---|
Related Part Numbers
|
Non-Plenum Number |
DIW300 |
|---|
Product Notes
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings. |
|---|
History
|
Update and Revision |
Revision Number: 0.413 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.413 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| DPLN300 732CUT | Olive | Cut to Length | 612825061038 | |
| DPLN300 732CUT | Olive | Cut to Length | 1 ft | 612825061038 |
