Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMP

...

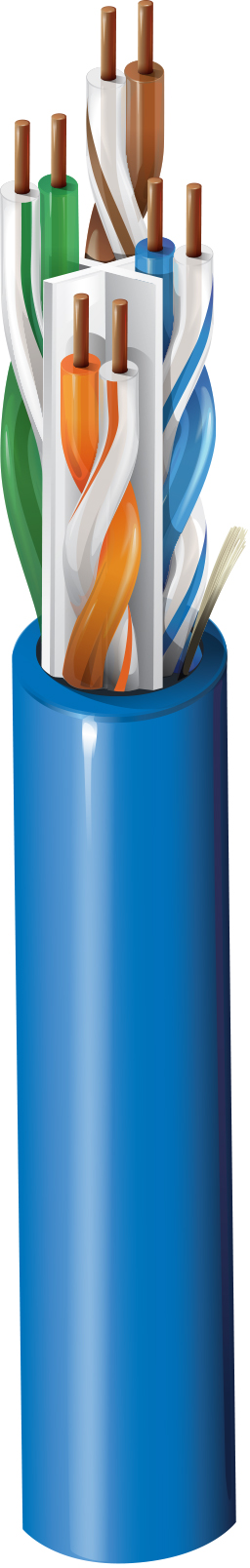

Category 6+ Enhanced Premise Horizontal Cable (600MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details
Conductor
Size Stranding Material No. of Pairs
23 AWG Solid BC - Bare Copper 4
Insulation
Material Color Code
PO+FEP - Polyolefin + Fluorinated Ethylene Propylene White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Outer Jacket
Separator Material Material Trade Name Nom. Diameter Ripcord
Center Member (Patented X-Spline®) PVC - Polyvinyl Chloride Flamarrest® 0.258 in (6.55 mm) Yes

Overall Cable Diameter (Nominal)

0.258 in (6.55 mm)

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Capacitance Unbalance
67 Ohm/km (20 Ohm/1000ft) 90 pF/100m
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm] Min. TCL [dB] Min. ELTCTL [dB]
0.772 1.7 dB/100m 83.0 82.0 81.3 80.3 77.0 75.0 102 ± 15 40.0 37.2
1 1.9 dB/100m 81.3 80.3 79.4 78.4 74.8 72.8 20.0 100 ± 15 100 ± 15 40.0 35.0
4 3.5 dB/100m 72.3 71.3 68.8 67.8 62.8 60.8 23.0 100 ± 15 100 ± 15 40.0 23.0
8 4.9 dB/100m 67.8 66.8 62.8 61.8 56.7 54.7 24.5 100 ± 15 100 ± 15 40.0 16.9
10 5.5 dB/100m 66.3 65.3 60.8 59.8 54.8 52.8 25.0 100 ± 15 100 ± 15 40.0 15.0
16 7.0 dB/100m 63.2 62.2 56.3 55.3 50.7 48.7 25.0 100 ± 15 100 ± 15 38.0 10.9
20 7.8 dB/100m 61.8 60.8 54.0 53.0 48.8 46.8 25.0 100 ± 15 100 ± 15 37.0 9.0
25 8.7 dB/100m 60.3 59.3 51.6 50.6 46.8 44.8 25.0 100 ± 15 100 ± 15 36.0 7.0
31.25 9.8 dB/100m 58.9 57.9 49.1 48.1 44.9 42.9 24.3 100 ± 15 100 ± 15 35.1
62.5 14.1 dB/100m 54.4 53.4 40.3 39.3 38.9 36.9 22.2 100 ± 15 100 ± 15 32.0
100 18.0 dB/100m 51.3 50.3 33.3 32.3 34.8 32.8 20.8 100 ± 15 100 ± 15 30.0
155 22.8 dB/100m 48.4 47.4 25.7 24.7 31.0 29.0 19.5 100 ± 22 100 ± 15 28.1
200 26.2 dB/100m 46.8 45.8 20.6 19.6 28.8 26.8 18.7 100 ± 22 100 ± 15 27.0
250 29.6 dB/100m 45.3 44.3 15.8 14.8 26.8 24.8 18.0 100 ± 32 100 ± 15 26.0
300 32.7 dB/100m 44.1 43.1 11.4 10.4 25.3 23.3 17.5 100 ± 32 100 ± 15
350 35.6 dB/100m 43.1 42.1 7.5 6.5 23.9 21.9 17.0 100 ± 32 100 ± 15
400 38.4 dB/100m 42.3 41.3 3.9 2.9 22.8 20.8 16.6 100 ± 32 100 ± 15
450 41.0 dB/100m 41.5 40.5 0.5 21.7 19.7 16.2 100 ± 32 100 ± 15
500 43.6 dB/100m 40.8 39.8 20.8 18.8 15.9 100 ± 32 100 ± 15
550 46.0 dB/100m 40.2 39.2 20.0 18.0 15.6 100 ± 32 100 ± 15
600 48.4 dB/100m 39.6 38.6 19.2 17.2 15.4 100 ± 32 100 ± 15
650 50.6 dB/100m 39.1 36.1 18.5 15.5 15.1
750 55.0 dB/100ft 38.2 35.2 17.3 14.3 14.7
860 59.6 dB/100ft 37.3 34.3 16.1 13.1 14.3
Voltage
UL Voltage Rating
300 V (CMP), 300 V (CL3P)
Mechanical Characteristics
Temperature
UL Temperature Operating Installation Storage
90°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.0 in (25 mm) 2.75 in (69.9 mm)

Max. Pull Tension

25 lbs (11 kg)

Bulk Cable Weight

33 lbs/1000ft

Standards and Compliance

Environmental Suitability

Plenum, Indoor

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Reaction to Fire

NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca; CPR UKCA Class: Eca

NEC / UL Compliance

Article 800, CMP, CMP-LP (0.6A), CL3P-LP (0.6A)

CEC / C(UL) Compliance

CMP

ICEA Compliance

S-116-732

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

Third Party Performance Verification

Category 6

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

CENELEC Compliance

Segregation class according EN50174-2 = a

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

4812

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 600 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.

History

Update and Revision

Revision Number: 0.540 Revision Date: 02-03-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
