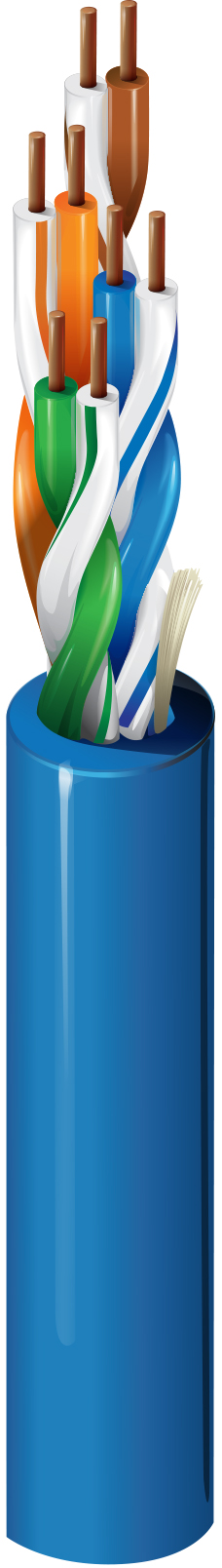

7814A

CAT 6 4P 24AWG, U/UTP, PVC Jkt, Indoor,CM

...
CAT 6 4PR x 24AWG, Solid Bare Copper Conductor, U/UTP, PE Insulation, CM,PVC Jacket, Indoor

Regions Available: Asia Pacific
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, 250MHz Category 6

Construction Details
Conductor
Size Stranding Material No. of Pairs
24 Solid BC - Bare Copper 4
Insulation
Material Nom. Insulation Diameter Color Code
PE - Polyethylene 0.97 mm (0.038 in) Blue & White with Blue Stripe, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe
Outer Jacket
Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 5.8 mm (0.23 in) Yes
Electrical Characteristics
Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km (28.6 Ohm/1000ft) 56 pF/m (17 pF/ft) 330 pF/100m 100 Ohm
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 538 ns/100m 45 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 2.0 dB/100m 74.3 72.3 72.3 70.3 67.8 64.8 20.0 40.0 35.0
4 3.8 dB/100m 65.3 63.3 61.5 59.5 55.8 52.8 23.0 40.0 23.0
8 5.3 dB/100m 60.8 58.8 55.5 54.5 49.7 46.7 24.5 40.0 16.9
10 6.0 dB/100m 59.3 57.3 53.3 50.3 47.8 44.8 25.0 40.0 15.0
16 7.6 dB/100m 56.2 54.2 48.7 46.7 43.7 40.7 25.0 38.0 10.9
20 8.5 dB/100m 54.8 52.8 46.3 44.3 41.8 38.8 25.0 37.0 9.0
25 9.5 dB/100m 53.3 51.3 43.8 41.8 39.8 36.8 24.3 36.0 7.0
31.25 10.7 dB/100m 51.9 49.9 41.4 39.4 37.9 34.9 23.6 35.1
62.5 15.4 dB/100m 47.4 45.4 32.0 30.0 31.9 28.9 21.5 32.0
100 19.8 dB/100m 44.3 42.3 24.5 22.5 27.8 24.8 20.1 30.0
200 29.0 dB/100m 39.8 37.8 10.8 8.8 21.8 18.8 18.0 27.0
250 32.8 dB/100m 38.3 36.3 5.5 3.5 19.8 16.8 17.3 26.0

Table Notes

Third party verified to TIA 568.2-D, Category 6. Typical Values are for reference only

Mechanical Characteristics
Temperature
Operating
-20°C to +75°C
Bend Radius
Installation Min.
23.2 mm (0.913 in)

Max. Pull Tension

110 N (25 lbf)

Bulk Cable Weight

36.0 kg/km (24.2 lbs/1000ft)

Standards and Compliance

Environmental Suitability

Indoor, Indoor

Flammability / Reaction to Fire

UL1685

NEC / UL Compliance

CM

CEC / C(UL) Compliance

CM

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA 568.2-D

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Jacket sequentially marked

History

Update and Revision

Revision Number: 0.51 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length
7814A 010A1000 Black Reel in Box 1,000 ft
7814A 010U1000 Black Box 1,000 ft
7814A 006A1000 Blue Reel in Box 1,000 ft
7814A 006U1000 Blue Box 1,000 ft
7814A 005A1000 Green Reel in Box 1,000 ft
7814A 005U1000 Green Box 1,000 ft
7814A 008A1000 Grey Reel in Box 1,000 ft
7814A 008U1000 Grey Box 1,000 ft
7814A 003A1000 Orange Reel in Box 1,000 ft
7814A 003U1000 Orange Box 1,000 ft
7814A 002A1000 Red Reel in Box 1,000 ft
7814A 002U1000 Red Box 1,000 ft
7814A 007A1000 Violet Reel in Box 1,000 ft
7814A 007U1000 Violet Box 1,000 ft
7814A 009A1000 White Reel in Box 1,000 ft
7814A 009U1000 White Box 1,000 ft
7814A 004A1000 Yellow Reel in Box 1,000 ft
7814A 004U1000 Yellow Box 1,000 ft
