7852A

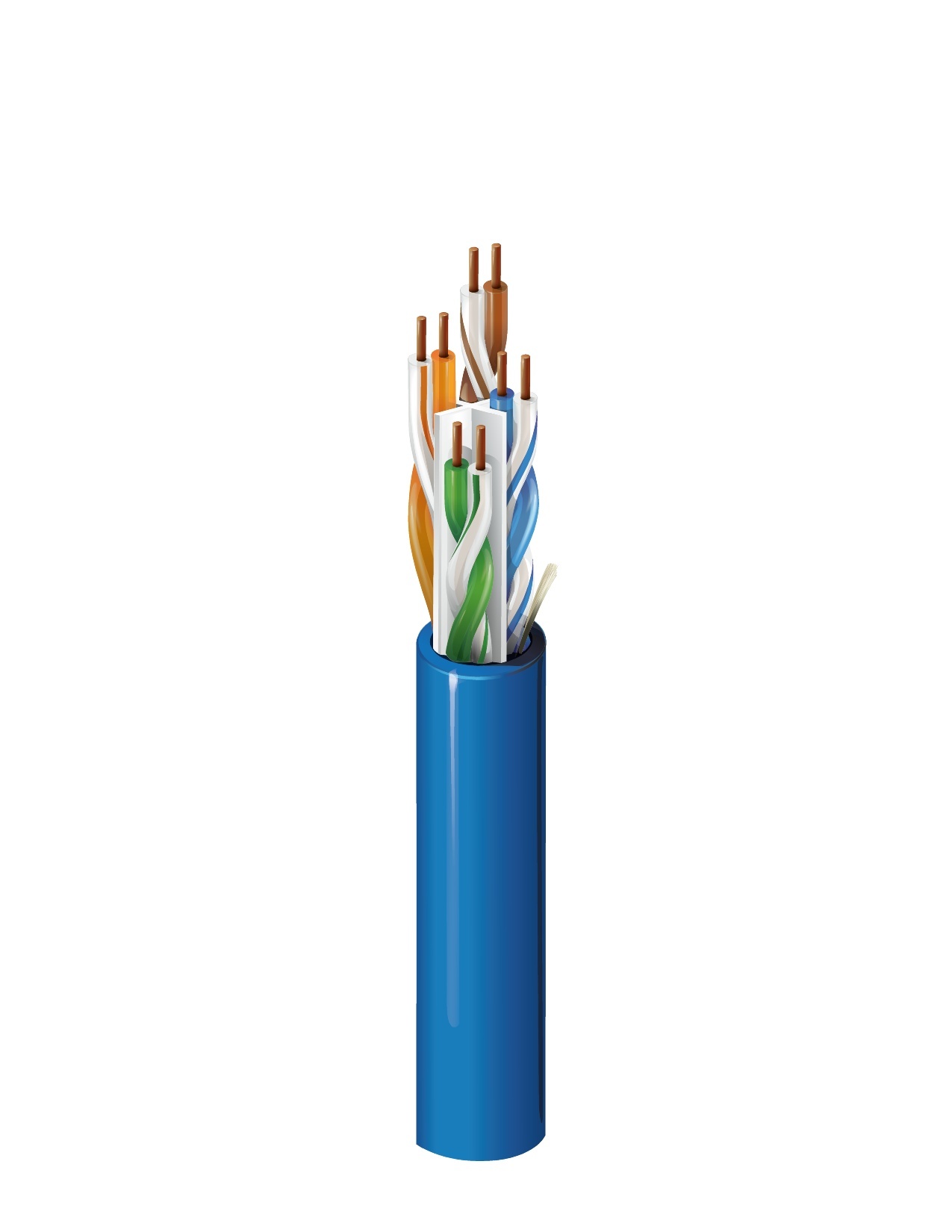

Category 6+ Enhanced Cable, 4 Bonded-Pairs, U/UTP, CMP

...
Category 6+ Enhanced Premise Horizontal Cable (600MHz), 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details
Conductor
Size Stranding Material No. of Pairs
23 AWG Solid BC - Bare Copper 4
Insulation
Material Color Code
FEP - Fluorinated Ethylene Propylene White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Outer Jacket
Separator Material Material Trade Name Nom. Diameter Ripcord
Center Member (Patented E-Spline®) PVC - Polyvinyl Chloride Flamarrest® 0.266 in (6.76 mm) Yes

Overall Cable Diameter (Nominal)

0.266 in (6.76 mm)

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Capacitance Unbalance
82 Ohm/km (25 Ohm/1000ft) 90 pF/100m
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 38 ns/100m 67%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm] Min. TCL [dB] Min. ELTCTL [dB]
1 1.8 dB/100m 82.3 80.3 80.5 78.5 74.8 72.8 20.0 100 ± 12 100 ± 15 40.0 35.0
4 3.5 dB/100m 73.3 71.3 69.7 67.7 62.8 60.8 23.0 100 ± 12 100 ± 10.4 40.0 23.0
8 5.0 dB/100m 68.8 66.8 63.7 61.7 56.7 54.7 24.5 100 ± 12 100 ± 8 40.0 16.9
10 5.7 dB/100m 67.3 65.3 61.6 59.6 54.8 52.8 25.0 100 ± 12 100 ± 7.3 40.0 15.0
16 7.2 dB/100m 64.2 62.2 57.0 55.0 50.7 48.7 25.0 100 ± 12 100 ± 5.7 38.0 10.9
20 8.1 dB/100m 62.8 60.8 54.7 52.7 48.8 46.8 25.0 100 ± 12 100 ± 5 37.0 9.0
25 9.1 dB/100m 61.3 59.3 52.3 50.3 46.8 44.8 25.0 100 ± 15 100 ± 5 36.0 7.0
30 10.0 dB/100m 60.1 58.1 50.2 48.2 45.3 43.3 25.0 100 ± 15 100 ± 5 35.2 5.5
31.25 10.2 dB/100m 59.9 57.9 49.7 47.7 44.9 42.9 25.0 100 ± 15 100 ± 5 35.1
62.5 14.7 dB/100m 55.4 53.4 40.7 38.7 38.9 36.9 25.0 100 ± 15 100 ± 5 32.0
100 18.9 dB/100m 52.3 50.3 33.4 31.4 34.8 32.8 25.0 100 ± 15 100 ± 5 30.0
155 23.9 dB/100m 49.4 47.4 25.5 23.5 31.0 29.0 22.8 100 ± 15 100 ± 5 28.1
200 27.5 dB/100m 47.8 45.8 20.3 18.3 28.8 26.8 21.6 100 ± 15 100 ± 5 27.0
240 30.5 dB/100m 46.6 44.6 16.1 14.1 27.2 25.2 20.6 100 ± 20 100 ± 5 26.2
250 31.2 dB/100m 46.3 44.3 15.2 13.2 26.8 24.8 20.5 100 ± 20 100 ± 5 26.0
300 34.5 dB/100m 43.1 43.1 8.6 8.6 25.3 23.3 20.1 100 ± 20 100 ± 5
310 35.2 dB/100m 42.9 42.9 7.8 7.8 25.0 23.0 20.0 100 ± 20 100 ± 5
350 37.7 dB/100m 42.1 42.1 4.5 4.5 23.9 21.9 19.8 100 ± 22 100 ± 5
400 40.6 dB/100m 41.3 41.3 0.6 0.6 22.8 20.8 19.5 100 ± 22 100 ± 5
436 42.7 dB/100m 40.7 40.7 22.0 20.0 19.1 100 ± 22 100 ± 5
450 43.5 dB/100m 40.5 40.5 21.7 19.7 18.9 100 ± 22 100 ± 5
460 44.0 dB/100m 40.4 40.4 21.5 19.5 18.8 100 ± 22 100 ± 5
500 46.2 dB/100m 39.8 39.8 20.8 18.8 18.4 100 ± 22 100 ± 5
550 48.8 dB/100m 39.2 39.2 20.0 18.0 18.0 100 ± 22 100 ± 5
600 51.4 dB/100m 38.6 38.6 19.2 17.2 17.6 100 ± 22 100 ± 5
Voltage
UL Voltage Rating
300 V (CMP), 300 V (CL3P)
Mechanical Characteristics
Temperature
UL Temperature Operating Installation Storage
105°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
0.5 in (13 mm) 2.25 in (57.2 mm)

Max. Pull Tension

40 lbs (18 kg)

Bulk Cable Weight

38 lbs/1000ft

Standards and Compliance

Environmental Suitability

Plenum, Indoor

Sustainability

Product Lens™, Environmental Product Declaration (EPD) Available

Flammability / Reaction to Fire

NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMP, CMP-LP (0.6A), CL3P-LP (0.6A)

CEC / C(UL) Compliance

CMP

ICEA Compliance

S-116-732

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

NEMA Compliance

ANSI/NEMA WC-66

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

Third Party Performance Verification

Category 6

ISO/IEC Compliance

ISO/IEC 11801-1, IEC 61156-5

CENELEC Compliance

Segregation class according EN50174-2 = a

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

7851A

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 600 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0.
