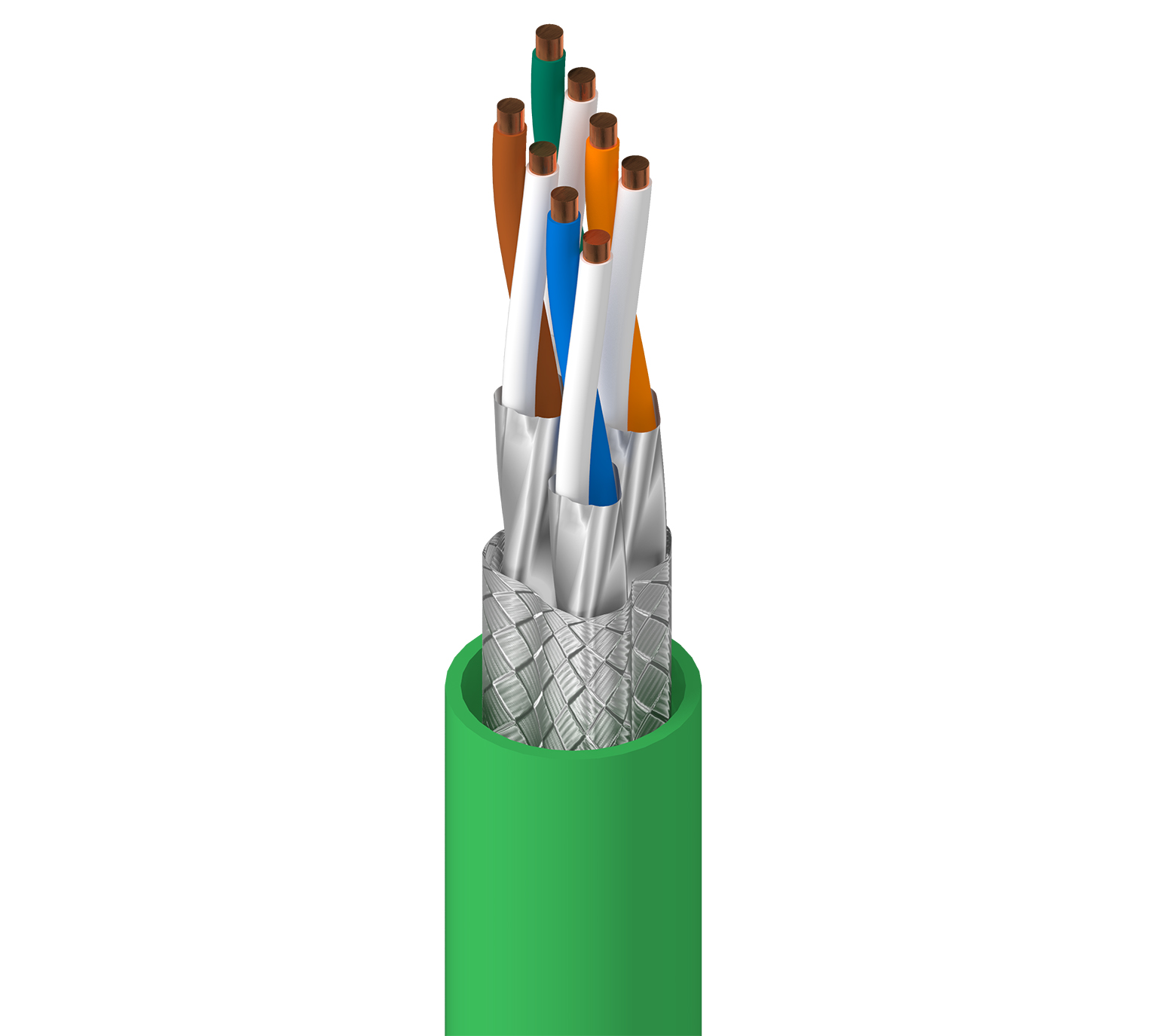

DataTuff® 6A, 4PR #22 Sol BC, PO ins, S/FTP, PVC jkt, PROFINET Type A, AWM 20726
|
Suitable Applications |
PROFINET Cat6A, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
| Element | Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|---|
| Individual Shielded Pair | 22 AWG | Solid | BC - Bare Copper | 4 | 8 |
| Element | Material | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| Individual Shielded Pair | PE - Polyethylene (Foam) | 1.60 mm (0.0630 in) | White & Blue, White & Orange, White & Green, White & Brown |
| Description |
|---|
| 4 pairs twisted to cable core |
| Element | Shield Type | Material | Coverage |
|---|---|---|---|
| Individual Shielded Pair | Tape | Bi-Laminate (Alum+Poly) | 100% |
|
Table Notes |
Aluminum outside |
|---|
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 80% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 8.7 mm (0.34 in) |
|
Overall Cable Diameter (Nominal) |
8.7 mm (0.34 in) |
|---|
| Max. Conductor DCR | Max. Mutual Capacitance | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|---|
| 59.1 Ohm/km | 56 pF/m (17 pF/ft) | 160 pF/100m | 100 Ohm |
| Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|
| 25 ns/100m | 78% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. RL (Return Loss) [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|
| 1 | 2 dB/100m | 78 | 76 | 73 | 78 | 20 | 35 |
| 4 | 3.7 dB/100m | 78 | 74.3 | 71.3 | 78 | 23 | 23 |
| 10 | 5.9 dB/100m | 78 | 72.1 | 69.1 | 75.3 | 25 | 15 |
| 16 | 7.4 dB/100m | 78 | 70.6 | 67.6 | 71.2 | 25 | 10.9 |
| 31.2 | 10.4 dB/100m | 78 | 67.6 | 64.6 | 65.4 | 23.6 | 5.1 |
| 62.5 | 14.9 dB/100m | 75.5 | 60.6 | 57.6 | 59.4 | 21.5 | |
| 100 | 19 dB/100m | 72.4 | 53.4 | 50.4 | 55.3 | 20.1 | |
| 125 | 21.4 dB/100m | 70.9 | 49.6 | 46.6 | 53.4 | 19.4 | |
| 200 | 27.5 dB/100m | 67.9 | 40.4 | 37.4 | 49.3 | 18 | |
| 250 | 31 dB/100m | 66.4 | 35.5 | 32.5 | 47.3 | 17.3 | |
| 300 | 34.2 dB/100m | 65.2 | 31.1 | 28.1 | 45.8 | 17.3 | |
| 500 | 50.1 dB/100m | 60.7 | 10.6 | 7.6 | 39.7 | 17.3 |
|
Table Notes |
Limits below 4MHz are for information only |
|---|
|
Transfer Impedance Class |
Grade 1 |
|---|
|
Screening Class |
Type I |
|---|---|
|
Table Notes |
Coupling Attenuation |
| UL Voltage Rating | Voltage Rating |
|---|---|
| 30 V RMS | 30 V AC |
| Operating | Storage |
|---|---|
| -40°C to +80°C | -40°C to +80°C |
| Stationary Min. | Installation Min. |
|---|---|
| 45 mm (1.8 in) | 90 mm |
|
Environmental Suitability |
Indoor - Euroclass Eca, Indoor, Sunlight Resistance - Black only, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
AWM Compliance |
AWM 20276 |
|
Data Category |
Category 6A |
|
ISO/IEC Compliance |
ISO/IEC 11801-1 |
|
CENELEC Compliance |
EN 50173-1, Segregation class according EN50174-2 = d |
|
European Directive Compliance |
EU CE Mark |
|
UK Regulation Compliance |
UKCA Mark |
|
Update and Revision |
Revision Number: 0.243 Revision Date: 05-22-2024 |
|---|
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| 74010E.00100 | Green | Reel | 100 m | 8719605129741 |
| 74010E.00500 | Green | Reel | 500 m | 8719605127587 |
