Product Number: 50106AH1

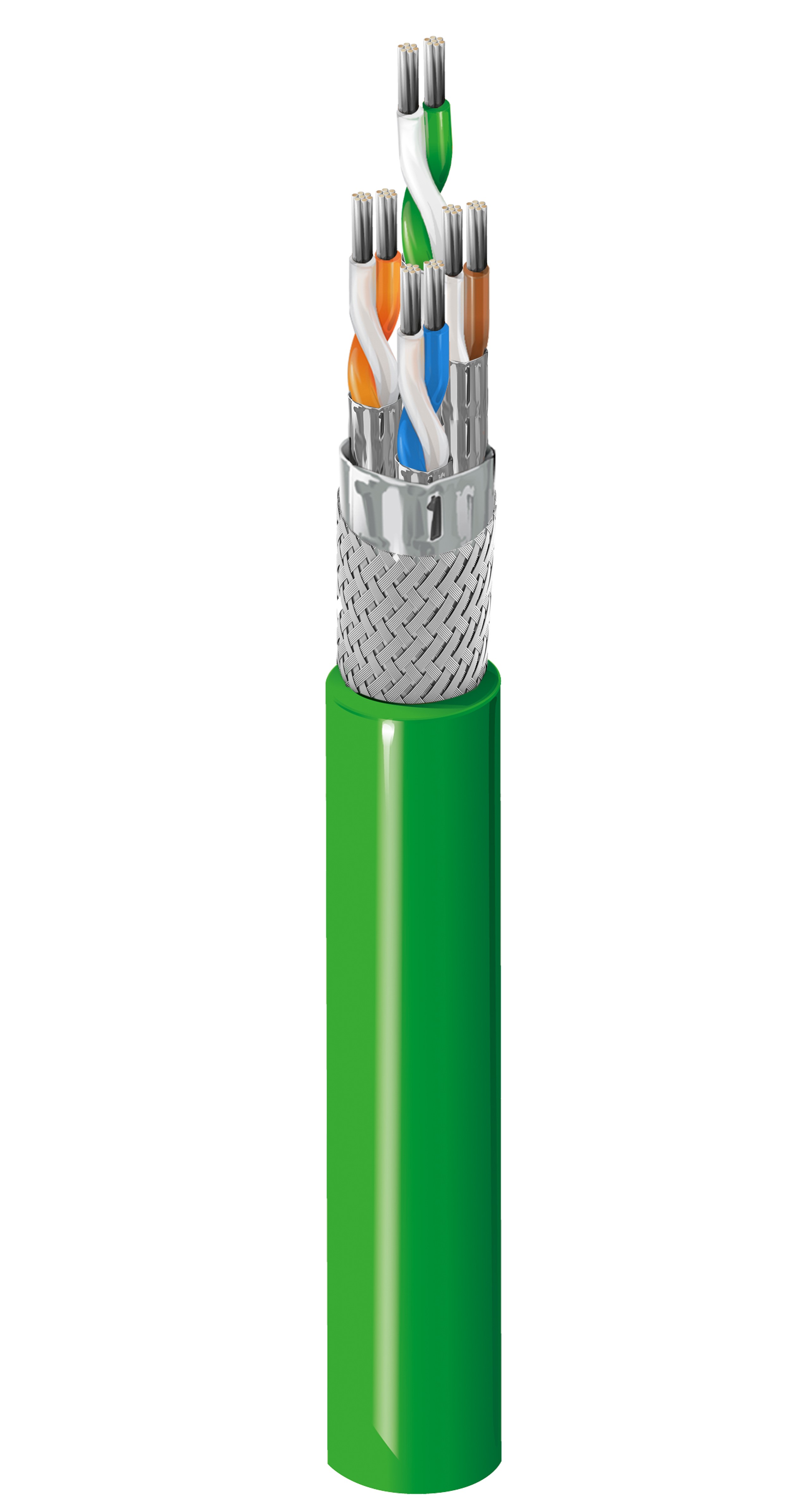

BELDEN 50106AH1 Industrial Ethernet CAT6A Cable, SF/FTP, Profinet Type C, 4 Pair, 24AWG Stranded, PUR Jkt, E357312-S, AWM 20554 80C, 30V, FT2
BELDEN 50106AH1 Industrial Ethernet CAT6A Cable, SF/FTP, Profinet Type C, 4 Pair, 24AWG Stranded Tinned Copper Condsuctors, Polyethylene Insulation, Tinned Copper Braid Shield, PUR Jacket, E357312-S, AWM 20554 80C, 30V, FT2
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Ethernet:10Base-T, 100Base-TX, 1000Base-T, 1000Base-TX, 10GBase-T |
|---|
Construction Details
Conductor
| Size | Stranding | Material |
|---|---|---|
| 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 1.45 mm (0.0571 in) | White & Blue, White & Orange, White & Green, White & Brown |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 85% |
| Tapes (Each Pair) | Bi-Laminate (Alum+Poly) |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PUR - Polyurethane | 8.9 mm (0.35 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | Nom. Characteristic Impedance |
|---|---|
| 95 Ohm/km | 100 Ohm |
Delay
| Max. Delay Skew |
|---|
| ≤ 20 ns/100m |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|
| 4 | 5.7 dB/100m | 66.3 | 56.0 | 23.0 |
| 10 | 9.5 db/100m | 59.5 | 46.4 | 25.0 |
| 16 | 11.5 dB/100m | 57.1 | 44.1 | 25.0 |
| 31.25 | 15.8 dB/100m | 53.1 | 38.0 | 23.3 |
| 62.5 | 22.4 dB/100m | 48.4 | 32.2 | 20.8 |
| 100 | 29.0 dB/100m | 45.2 | 27.8 | 19.0 |
| 200 | 41.1 dB/100m | 40.8 | 22.0 | 17.3 |
| 250 | 46.6 dB/100m | 39.3 | 20.1 | 17.3 |
| 300 | 51.4 dB/100m | 38.2 | 18.5 | 17.3 |
| 350 | 55.8 dB/100m | 37.1 | 17.1 | 17.3 |
| 500 | 67.9 dB/100m | 34.8 | 14.0 | 17.3 |
Mechanical Characteristics
Temperature
| Operating |
|---|
| -30°C To +70°C |
Bend Radius
| Installation Min. | Flexing Min. |
|---|---|
| 71.2 mm (2.80 in) | 133.5 mm (5.256 in) |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance, UV Resistance, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
FT2, IEC 60332-1-2 |
|
AWM Compliance |
AWM 20554 |
|
Data Category |
Category 6A |
|
ISO/IEC Compliance |
IEC 61156-xx, UL 758 |
|
European Halogen Free Standards |
IEC 60754-1 - Halogen Amount = Zero |
|
European Directive Compliance |
EU Directive 2011/65/EU (RoHS 2) |
Product Notes
|
Notes |
Min No. of Drag Chain Cycles: ≥ 2.5 million Drag Chain Parameters: r=15 D, a= 3m/s^2, v= 3m/s, chain length : 5 m |
|---|
History
|
Update and Revision |
Revision Number: 0.50 Revision Date: 01-12-2025 |
|---|
