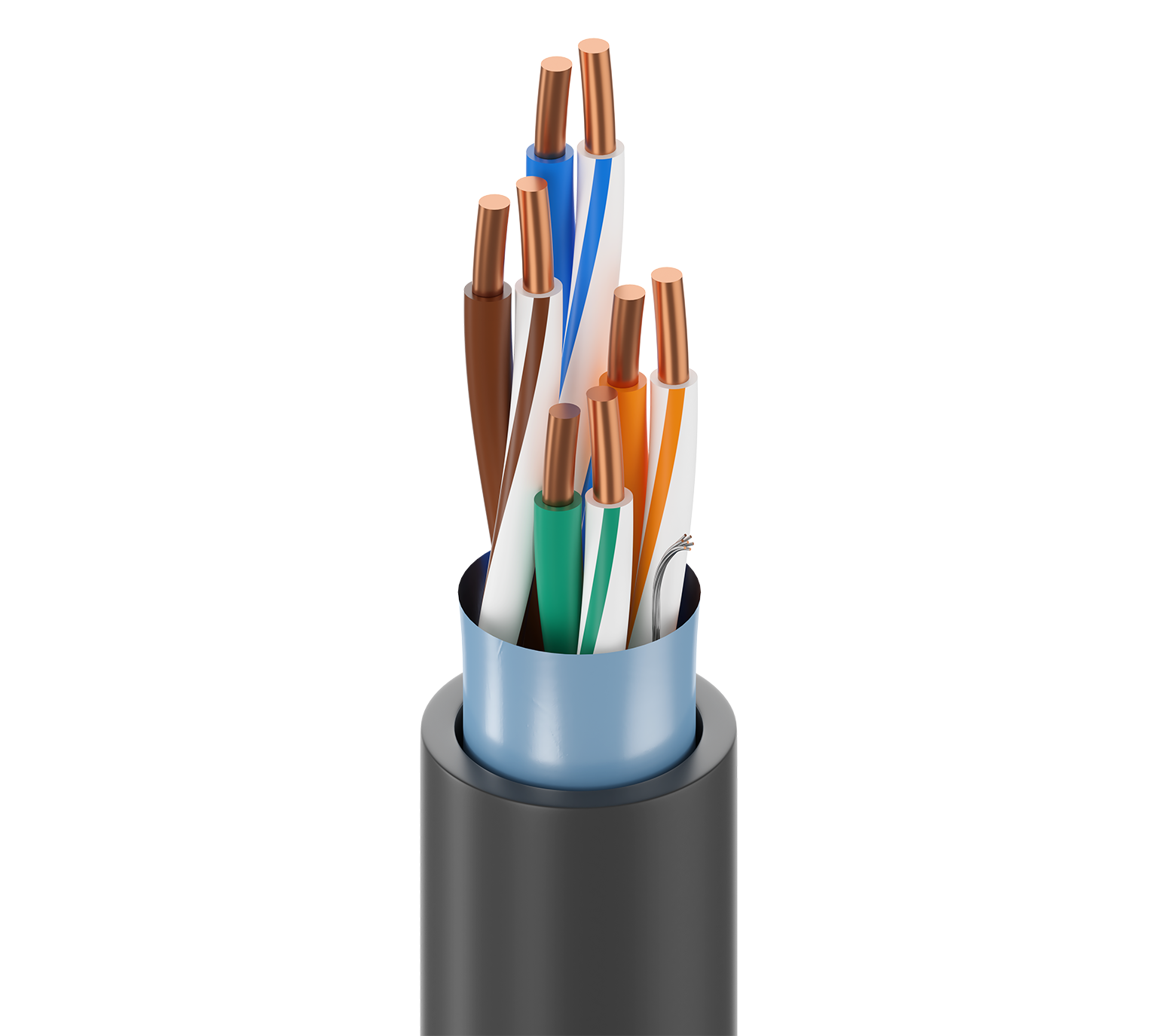

7903A

DataTuff® Cat 5e, 4 Pr #22 Sol BC, PO Ins, OS, PVC Jkt, PLTC CMR, FT4

...
Industrial Ethernet Cat 5e, 4 Pair 22AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, PLTC CMR, FT4
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

power-limited tray, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details
Conductor
Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 22 AWG Solid BC - Bare Copper 4 4
Insulation
Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC
Outer Jacket
Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.335 in (8.51 mm) No

Overall Cable Diameter (Nominal)

0.335 in (8.51 mm)

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance
56.5 Ohm/km (17.2 Ohm/1000ft) 17 pF/ft (56 pF/m) 330 pF/100m
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
510 ns/100m 25 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 65.3 62.3 63 60 63.8 60.8 20 100 ± 15 100 ± 15
4 4.1 dB/100m 56.3 53.3 51 49 51.7 48.7 23 100 ± 15 100 ± 15
8 5.8 dB/100m 51.8 48.8 46 43 45.7 42.7 24.5 100 ± 15 100 ± 15
10 6.5 dB/100m 50.3 47.3 43 41 43.8 40.8 25 100 ± 15 100 ± 15
16 8.2 dB/100m 47.3 44.3 39 36 39.7 36.7 25 100 ± 15 100 ± 15
20 9.3 dB/100m 45.8 42.8 36.5 33.5 37.7 34.7 25 100 ± 15 100 ± 15
25 10.4 dB/100m 44.3 41.3 33.9 30.9 35.8 32.8 24.3 100 ± 15 100 ± 15
31.25 11.7 dB/100m 42.9 39.9 31 28 33.9 30.9 23.6 100 ± 15 100 ± 15
62.5 17.0 dB/100m 38.4 35.4 22 19 27.8 24.8 21.5 100 ± 15 100 ± 15
100 22.0 dB/100m 35.3 32.3 14 11 23.8 20.8 20.1 100 ± 15
155 28.1 dB/100m 32.5 29.5 4.4 1.4 19.9 16.9 18.8 100 ± 25
200 32 dB/100m 30.8 27.8 4 1 17.7 14.7 18.0 100 ± 25
250 36.9 dB/100m 29.3 26.3 15.8 12.8 18 100 ± 25
300 41.0 dB/100m 28.2 25.1 14.2 11.2 17.3 100 ± 25
310 41.8 dB/100m 27.9 24.9 13.9 10.9 16.8 100 ± 25
350 44.9 dB/100m 27.2 24.1 12.9 9.9 16.3 100 ± 25
Voltage
UL Voltage Rating
300 V RMS (PLTC, CMR, CMX Outdoor), 600 V (AWM)
Mechanical Characteristics
Temperature
UL Temperature Operating Installation Storage
75°C -40°C To +75°C -25°C To +75°C -25°C To +75°C
Bend Radius
Stationary Min.
3.38 in (85.9 mm)

Max. Pull Tension

40 lbs (18 kg)

Bulk Cable Weight

43 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, Oil Resistance

Flammability / Reaction to Fire

UL1666 Riser

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

CMR, PLTC

AWM Compliance

AWM 21047

CEC / C(UL) Compliance

CMR

Data Category

Category 5e

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 5e

ISO/IEC Compliance

ISO/IEC 11801 Cat 5e

UK Regulation Compliance

UKCA Mark

Product Notes

Notes

Operating temperatures are subject to length de-rating

History

Update and Revision

Revision Number: 0.358 Revision Date: 11-06-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
7903A 0103000 612825421924
7903A 0101000 Black Reel 1,000 ft 612825421917
7903A 0105000 Black Reel 5,000 ft 612825421931
