7953T

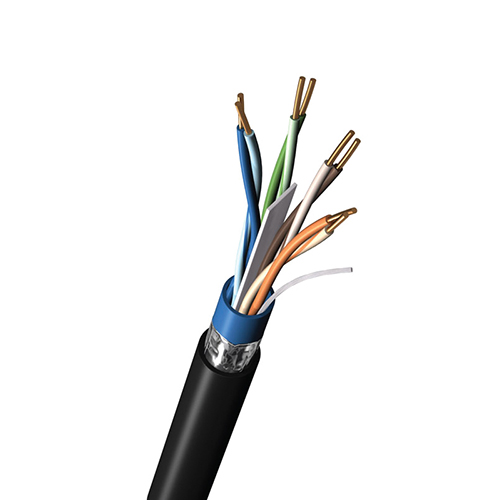

DataTuff® 6, 4 Bonded-Pr #23 Sol BC, PO Ins, OS, PO Jkt, LSZH Jkt, CMG-ST1, FT4

...
Industrial Ethernet Cat 6, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, LSZH Jacket, Overall Beldfoil® Shield, LSZH Jacket, Flame Barrier, LSZH Outer Jacket, NFPA 130, CMG-ST1, FT4

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

shipboard, transportation, outdoor, in cabinet with high volt devices, such as motor control center, mining, noisy environment, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Construction Details
Conductor
Element Size Stranding Material No. of Pairs
Pair(s) 23 AWG Solid BC - Bare Copper 4
Insulation
Element Material Nom. Insulation Diameter Color Code
Pair(s) PO - Polyolefin 0.043 in (1.1 mm) Blue & White/Blue, Orange & White/Orange, Green & White/Green, Brown & White/Brown

Bonded-Pair

Yes

Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Outer Jacket
Material Material Trade Name Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) Haloarrest® 0.487 in (12.4 mm)

Overall Cable Diameter (Nominal)

0.487 in (12.4 mm)

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Capacitance Unbalance
25 Ohm/1000ft (82 Ohm/km) 330 pF/100m
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
537 ns/100m 45 ns/100m 72%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm]
1 2 dB/100m 74.3 72.3 72.3 70.3 67.8 64.8 21 100 ± 15
4 3.8 dB/100m 65.3 63.3 61.5 59.5 55.8 52.7 24 100 ± 15
8 5.3 dB/100m 60.8 58.8 55.4 53.4 49.7 46.7 25.5 100 ± 15
10 6 dB/100m 59.3 57.3 53.3 51.3 47.8 44.8 26 100 ± 15
16 7.6 dB/100m 56.2 54.3 48.7 46.7 43.7 40.7 26 100 ± 15
20 8.5 dB/100m 54.8 52.8 46.3 44.3 41.8 38.8 26 100 ± 15
25 9.5 dB/100m 53.3 51.3 43.8 41.8 39.8 36.8 25.3 100 ± 15
31.25 10.7 dB/100m 51.9 49.9 41.2 39.2 37.9 34.9 24.6 100 ± 15
62.5 15.4 dB/100m 47.4 45.4 32 30 31.9 28.9 22.5 100 ± 15
100 19.8 dB/100m 44.3 42.3 24.5 22.5 27.8 24.8 21.1 100 ± 15
155 25.2 dB/100m 41.5 39.5 16.3 14.3 23.9 20.9 19.8 100 ± 22
200 29 dB/100m 39.8 37.8 10.8 8.8 21.8 18.8 19 100 ± 22
250 32.8 dB/100m 38.3 36.3 5.5 3.5 19.8 16.8 18.3 100 ± 32
Voltage
UL Voltage Rating
300 V RMS
Mechanical Characteristics
Temperature
UL Temperature Operating Installation Storage
60°C -30°C To +60°C -20°C To +75°C -30°C To +60°C
Bend Radius
Stationary Min. Installation Min.
3.0 in (76 mm) 4.9 in (120 mm)

Max. Pull Tension

55 lbs (25 kg)

Bulk Cable Weight

144 lbs/1000ft (214 kg/km)

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Non-Halogenated, UV Resistance

Flammability / Reaction to Fire

UL 1685 FT4 Loading, FT4, IEEE 1202

NEC / UL Compliance

Article 800, CMG-ST1

CEC / C(UL) Compliance

CMG-ST1

Data Category

Category 6

TIA/EIA Compliance

ANSI/TIA-568.2-D Category 6

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

NFPA 130

History

Update and Revision

Revision Number: 0.306 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color
7953T 0101000
7953T 0104000
7953T 0105000 Black
