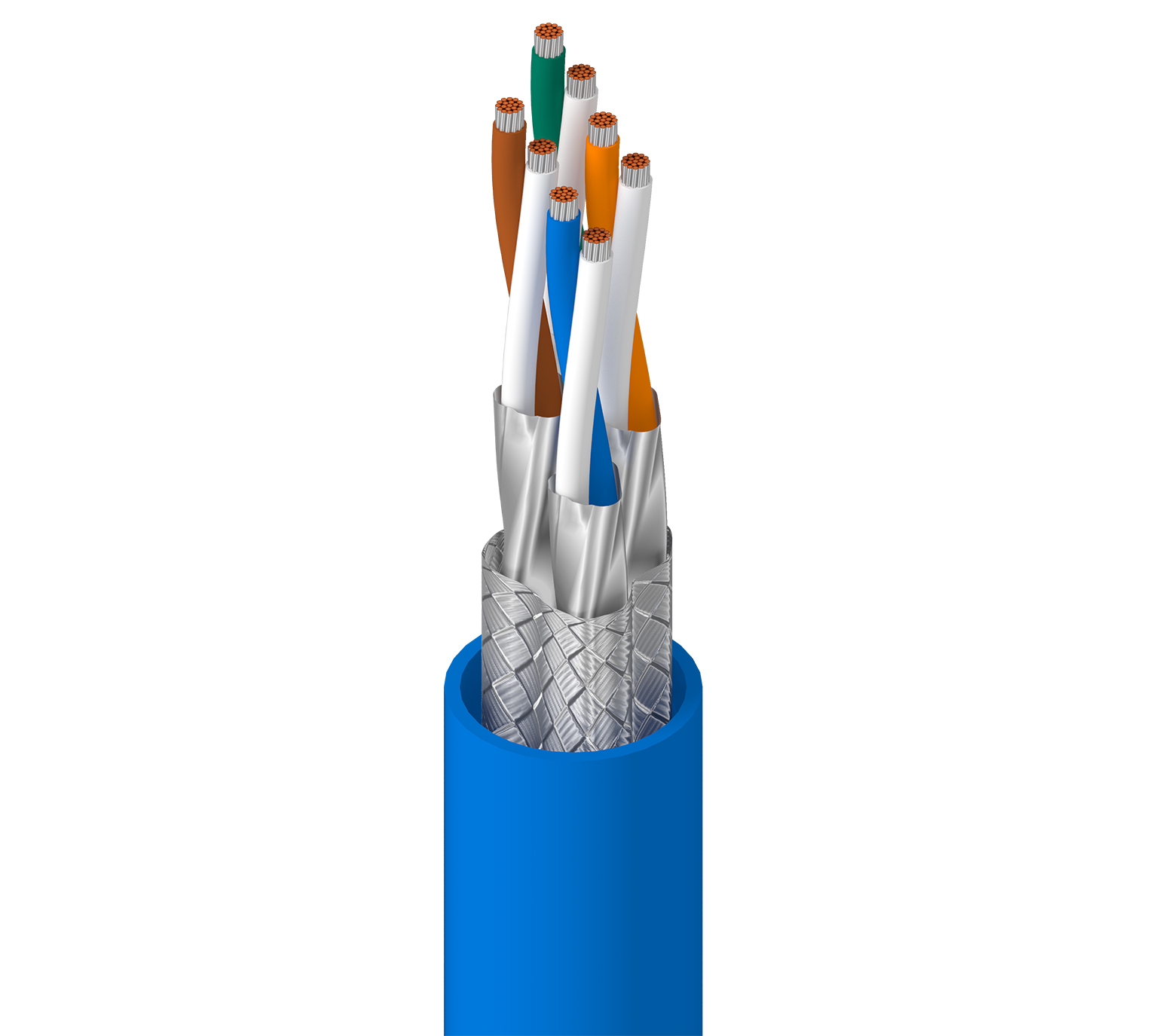

BE43802

Railtuff ® 7, 4PR #24 Str TC, XLPE ins, S/FTP, LSNH Jkt, EN 45545 HL 1-3, ECE R118.03

...
Railtuff ® 7, 4 Pair AWG 24 Tinned Copper - Stranded, XLP/XLPO, XLPE insulation, S/FTP - Overall Braid + Foil shielding,Crosslinked e-beam LSZH / FRNC jacket , EN 45545-2 HL 1-3, ECE R118.03
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

For use in railway applications such as rolling stock, buses or other vehicles, cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305 and EN 45545-2, ECE R118.03

Construction Details
Conductor
Size Stranding Material No. of Pairs No. of Elements
24 AWG 19x36 TC - Tinned Copper 4 8
Insulation
Material Nom. Insulation Diameter Color Code Notes
PO - Polyolefin (Foam) 1.45 mm (0.0571 in) White & Blue, White & Orange, White & Green, White & Brown eBeam Cross-Linked

Table Notes

Insulation OD tolerance +/- 0.05mm

Cable Core
Description
4 pairs twisted together
Inner Shield
Element Shield Type Material Coverage
Individual Shielded Pair Tape Bi-Laminate (Alum+Poly) 100%

Table Notes

Aluminium facing outside

Outer Shield
Shield Type Material Coverage
Braid Tinned Copper (TC) 80%
Outer Jacket
Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) 8.1 mm (0.32 in)

Table Notes

e-Beamed to Cross-link, cable meets smoke test of LU 1-085. Jacket OD +/- 0.3mm

Overall Cable Diameter (Nominal)

8.1 mm (0.32 in)

Electrical Characteristics
Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
95 Ohm/km 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm
Delay
Max. Delay Skew Nom. Velocity of Prop.
25 ns/100m 78%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation)
1 2.9 dB/100m
4 5.6 dB/100m
10 8.8 dB/100m
16 11.1 dB/100m
31.2 15.6 dB/100m
62.5 22.3 dB/100m
100 28.5 dB/100m
300 51.3 dB/100m
500 67.9 dB/100m
600 75.1 dB/100m
1000 100.4 dB/100m

Table Notes

Limits below 4MHz are for information only. Values at 1000 MHz are for information only

Transfer Impedance
Frequency Max. Transfer Impedance
1 MHz Max. 5 mOhm/m
10 MHz Max. 5 mOhm/m
30 MHz Max. 30 mOhm/m
100 MHz 100 mOhm/m

Transfer Impedance Class

Grade 1

Table Notes

IEC 61156-6

Screening Class

Type I

Table Notes

Coupling attenuation

Voltage
Voltage Rating
300 V
Mechanical Characteristics
Temperature
Operating Installation Storage
-40°C to +90°C -25°C To +50°C -40°C to +90°C
Bend Radius
Stationary Min. Installation Min.
32 mm (1.3 in) 64 mm
Standards and Compliance

Environmental Suitability

Indoor, Oil Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-2-25, UN ECE R118.03

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Data Category

Category 7

ISO/IEC Compliance

ISO/IEC 11801-1

CENELEC Compliance

EN 45545-2, Segregation class according EN50174-2 = d

European Halogen Free Standards

IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

European Directive Compliance

EU CE Mark

History

Update and Revision

Revision Number: 0.246 Revision Date: 05-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
BE43802.00500 Blue Reel 500 m 8719605026576
