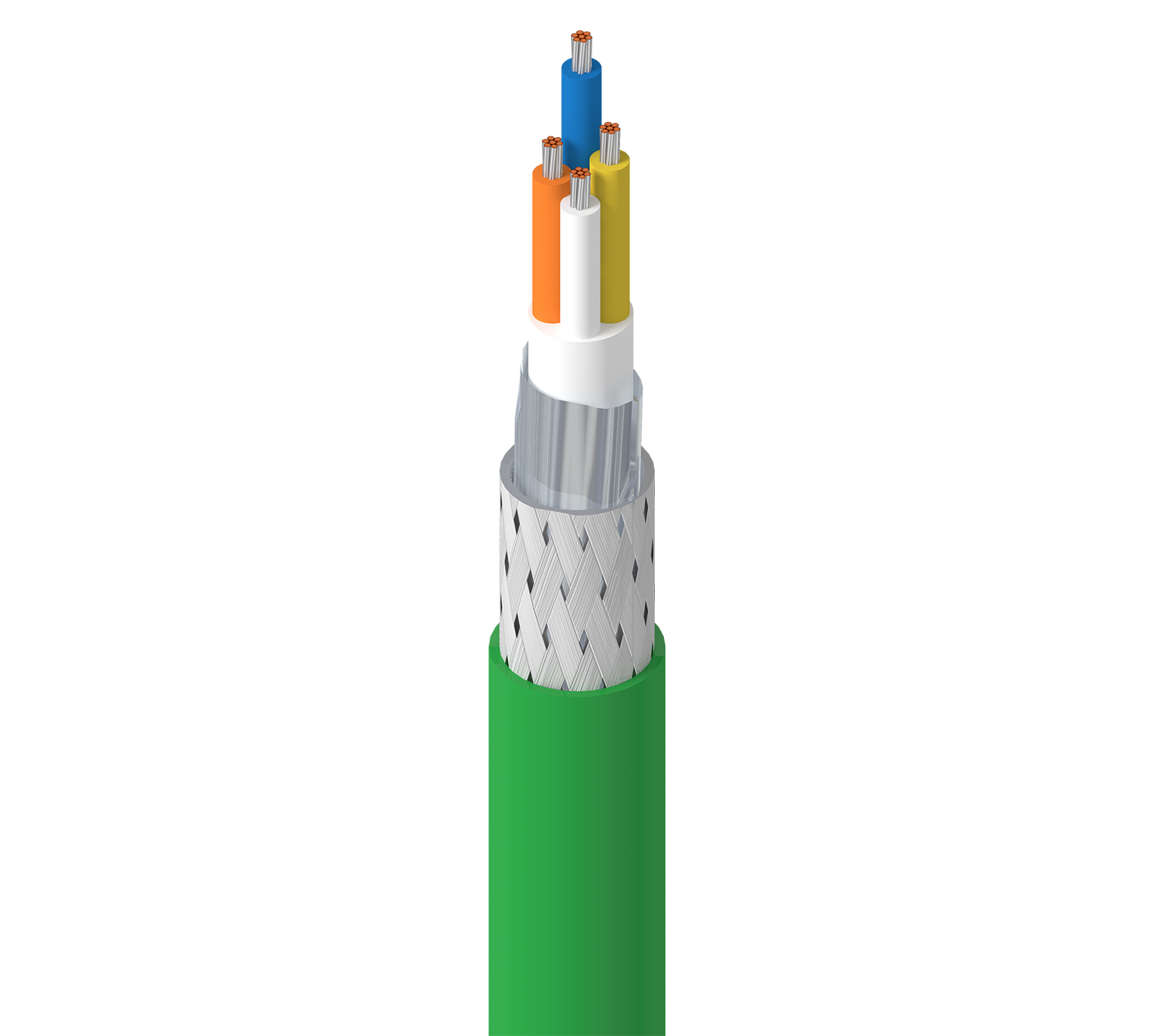

BE43885

DataTuff® 5E, 1Q #22 Str TC, PO ins, LSNH Jkt, PROFINET ECE R118, AWM 21286

...
DataTuff® 5E, 1 Quad AWG 22 Tinned Copper - Stranded, Polyethylene insulation, SF/UTP - Overall Braid+ Foil shielding, LSZH / FRNC jacket , PROFINET ECE R118, AWM 21286
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Cat5e, For use in buses or other vehicles, cable meets the requirements of the standard ECE R118.03

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details
Conductor
Size Stranding Material No. of Pairs No. of Elements
22 AWG 7x0.25 mm TC - Tinned Copper 2 4
Insulation
Material Nom. Insulation Diameter Color Code
PE - Polyethylene 1.55 mm (0.0610 in) White & Blue & Yellow & Orange
1 Quad
Cable Core
Description
1 quad with center filler
Inner Jacket
Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 4.1 mm (0.16 in)

Table Notes

Bedding

Outer Shield
Material
Bi-Laminate (Alum+Poly)
Tinned Copper (TC)
Outer Jacket
Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.5 mm (0.26 in)

Overall Cable Diameter (Nominal)

6.5 mm (0.26 in)

Electrical Characteristics
Electricals
Max. Conductor DCR Nom. Characteristic Impedance
57.1 Ohm/km 100 Ohm
Delay
Max. Delay Nom. Velocity of Prop.
530 ns/100m 68%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. ACRF (ELFEXT) [dB] Min. SRL (Structural Return Loss) [dB]
1 2.1 dB/100m 65.3 64
4 4.1 dB/100m 56.3 52 23
10 6.5 dB/100m 50.3 44 25
16 8.3 dB/100m 47.2 40 25
31.25 11.7 dB/100m 43 34 23.6
62.5 17 dB/100m 38.4 28 21.5
100 22 dB/100m 35.3 24 20.1

Table Notes

Reference standard: ISO/IEC 11801 ed 2.0, Cat 5e

Transfer Impedance
Frequency
10 MHz
Mechanical Characteristics
Temperature
Operating Installation
-25°C to +70°C -5°C To +50°C
Standards and Compliance

Environmental Suitability

Indoor - Euroclass Eca

Flammability / Reaction to Fire

IEC 60332-1-2, UN ECE R118.03

CPR Compliance

CPR Euroclass: Eca

Data Category

Category 5e

ISO/IEC Compliance

ISO/IEC 11801-1

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

European Directive Compliance

EU CE Mark

History

Update and Revision

Revision Number: 0.140 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
BE43885.00500 Green Reel 500 m 8719605190567
