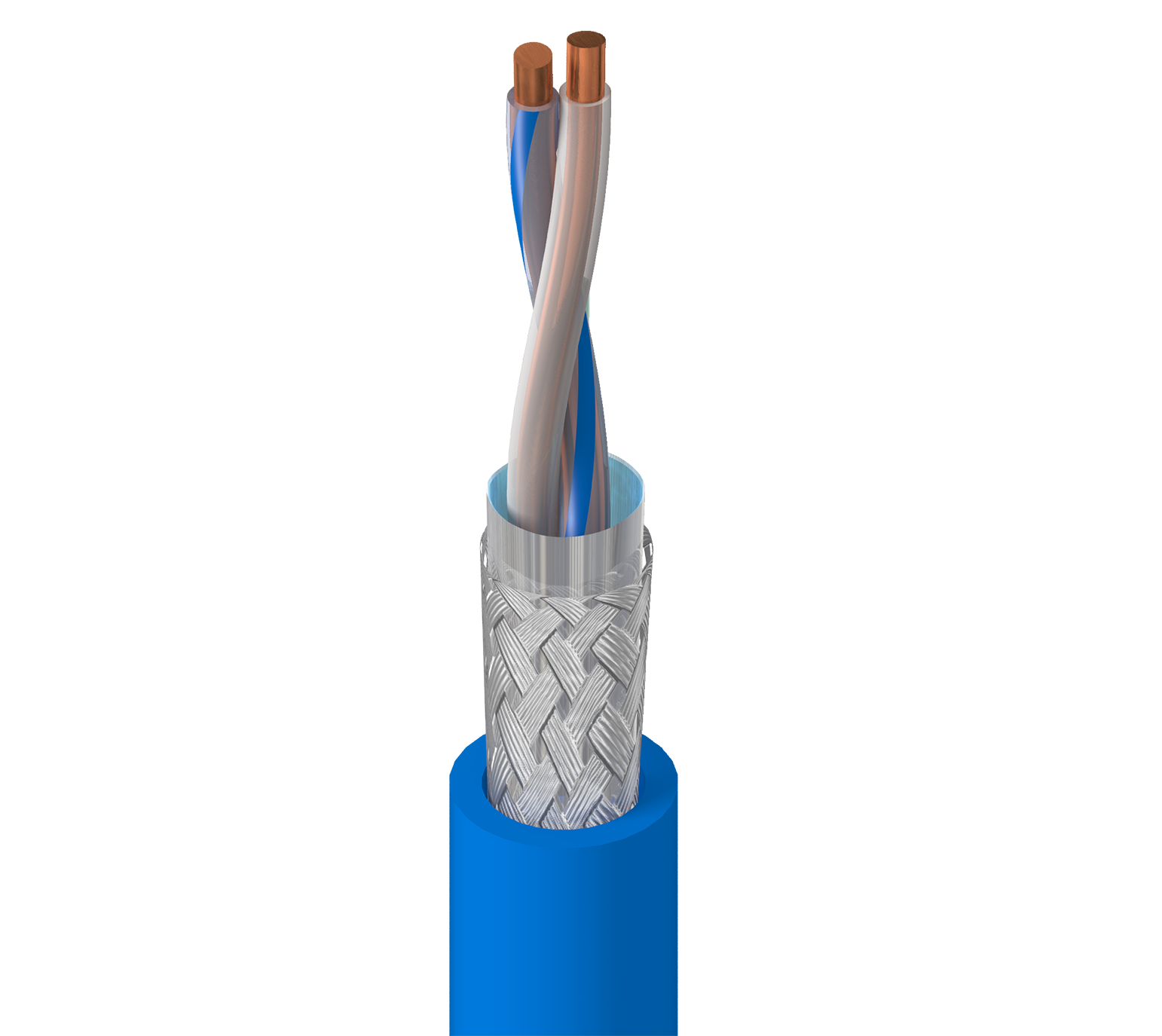

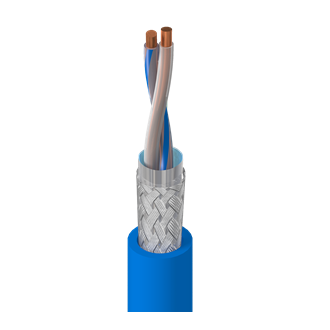

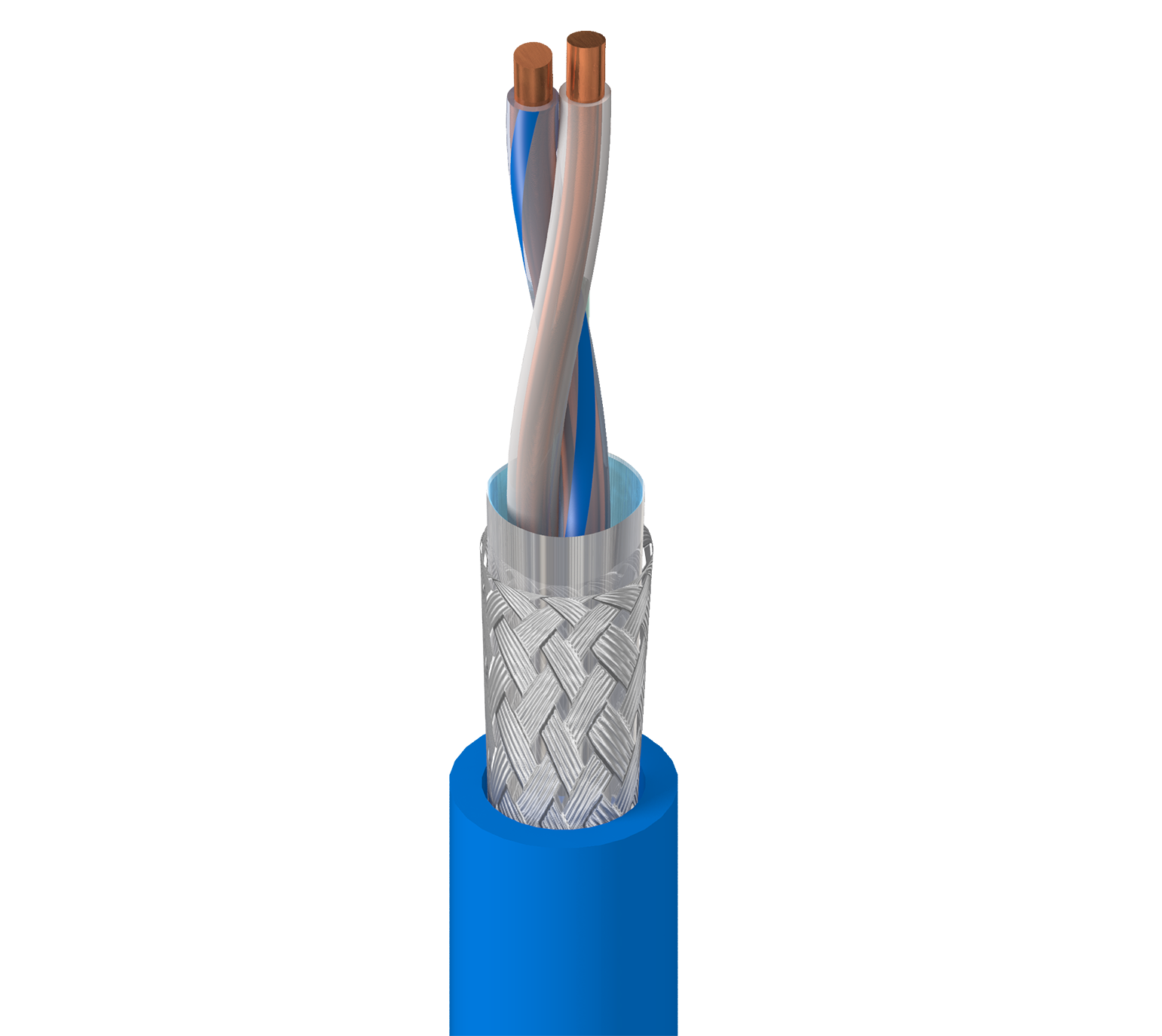

DataTuff Ind SPE 40m 1Gbps 100 Ohm 26AWG SFTP PVC
|
Suitable Applications |
Noisy environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 26 AWG | Solid | BC - Bare Copper | 1 |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PP - Polypropylene | 0.051 in (1.3 mm) | Natural & Natural/Blue |
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 80% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.161 in (4.09 mm) |
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 145 Ohm/km | 1,600 pF/km |
| Frequency | Max. Delay | Max. Delay Skew |
|---|---|---|
| 100 MHz | 538 ns/100m | 25 ns/100m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] | Max. Surface Transfer Impedance [mOhm/m] | Min. Coupling Attenuation [dB] |
|---|---|---|---|---|---|---|
| 1 | 3.1 dB/100m | 40 | 40 | 15 | ||
| 4 | 5.6 dB/100m | 20 | 40 | 28 | 50 | |
| 8 | 7.8 dB/100m | 24.5 | 36.5 | 21.9 | 93 | |
| 10 | 8.7 dB/100m | 25 | 35.0 | 20.0 | 100 | |
| 16 | 11 dB/100m | 25 | 31.9 | 15.9 | 135 | |
| 20 | 12.3 dB/100m | 25 | 30.5 | 14 | 155 | |
| 25 | 13.8 dB/100m | 24.2 | 29 | 12 | 178 | |
| 30 | 15.1 dB/100m | 23.5 | 27.8 | 10.5 | 200 | 85 |
| 60 | 21.4 dB/100m | 20.9 | 23.3 | 5 | 85 | |
| 100 | 27.8 dB/100m | 19 | 20 | 5 | 85 | |
| 200 | 39.7 dB/100m | 16.4 | 15.5 | 5 | 79 | |
| 250 | 44.6 dB/100m | 15.6 | 14 | 5 | 77 | |
| 300 | 49.0 dB/100m | 14.9 | 12.8 | 5 | 75 | |
| 350 | 53.2 dB/100m | 14.3 | 11.8 | 5 | 74 | |
| 400 | 57.0 dB/100m | 13.8 | 11 | 5 | 73 | |
| 450 | 60.7 dB/100m | 13.4 | 10.2 | 5 | 72 | |
| 500 | 64.1 dB/100m | 71 | 9.5 | 5 | 71 | |
| 550 | 67.5 dB/100m | 12.6 | 8.9 | 5 | 70 | |
| 600 | 70.7 dB/100m | 12.3 | 8.3 | 5 | 69 |
| UL Voltage Rating | Voltage Rating |
|---|---|
| 300 V (UL AWM 2095) | 300 V (IEC 61156-12) |
| UL Temperature | Operating |
|---|---|
| 80°C | -20°C To +80°C |
| Installation Min. |
|---|
| 1.7 in (43 mm) |
|
Bulk Cable Weight |
7.7 lbs/1000ft |
|---|
|
Environmental Suitability |
Indoor, Outdoor, UV Resistance, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
FT2, IEC 60332-1-2 |
|
AWM Compliance |
AWM 2095, AWM I A/B |
|
IEEE Compliance |
IEEE 802.3bp |
|
ISO/IEC Compliance |
IEC 61156-12 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. |
|---|
|
Update and Revision |
Revision Number: 0.39 Revision Date: 04-29-2024 |
|---|
