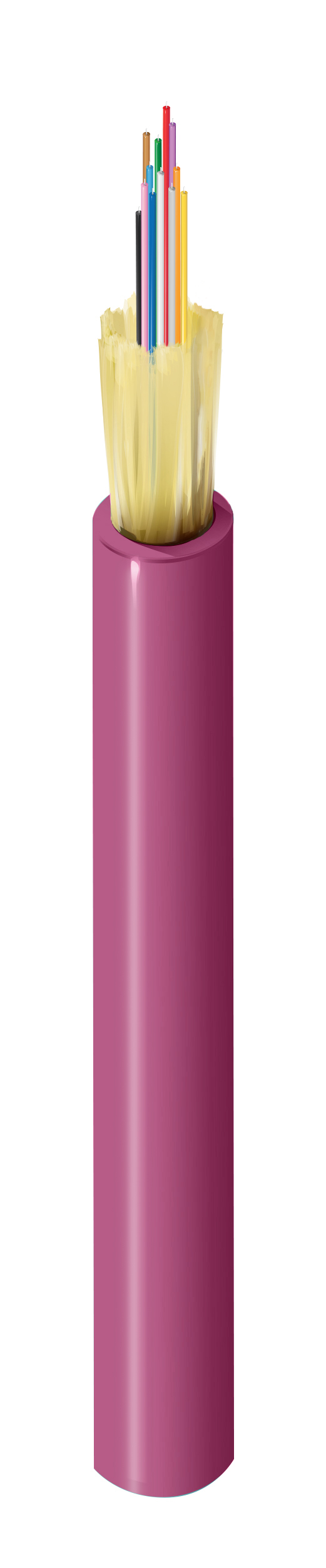

FI4M012P2

Indoor Plenum OM4 Mini-Distribution 12 Fibers

...
FX Indoor OM4 Mini Distribution 12 Fibers OFNP 3.0 mm Erika Violet Jacket

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Indoor, data center, patching, inside cabinets, workstation equipment connections

Fiber Specifications

Fiber Type

OM4

Fiber Core Diameter

50/125 µm

Fiber Diameter

250 µm

Fiber Count

12

Fiber Color Coding

TIA-598-D

Outer Jacket Specifications

Jacket Material

PVC - Polyvinyl Chloride

Nom. Diameter

0.118 in (3.0 mm)

Color

Erika Violet

Optical Characteristics
Wavelength 850 nm 1300 nm
Max. Attenuation 3.0 dB/km 1.2 dB/km
Mechanical Characteristics

Min. Bend Radius During Installation

20 x Cable OD

Min. Bend Radius During Operation

10 x Cable OD

Max. Tensile Strength During Installation

220 N (50 lbf)

Max. Tensile Strength During Operation

75 N (17 lbf)

Crush Resistance

35 N/cm

Bulk Cable Weight

5.2 lbs/kft (7.81 kg/km)

Temperature Range

Installation Temperature Range

0°C to +60°C

Operating Temperature Range

0°C to +70°C

Storage Temperature Range

-40°C to +70°C

Standards and Compliance

Environmental Suitability

Indoor

Sustainability

CA Prop 65

NEC / UL Compliance

OFNP

CEC / C(UL) Compliance

FT6

ICEA Compliance

S-83-596

Telcordia Compliance

GR-409

History

Update and Revision

Revision Number: 0.97 Revision Date: 10-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type UPC
FI4M012P2 Erika Violet Reel 612825288596
