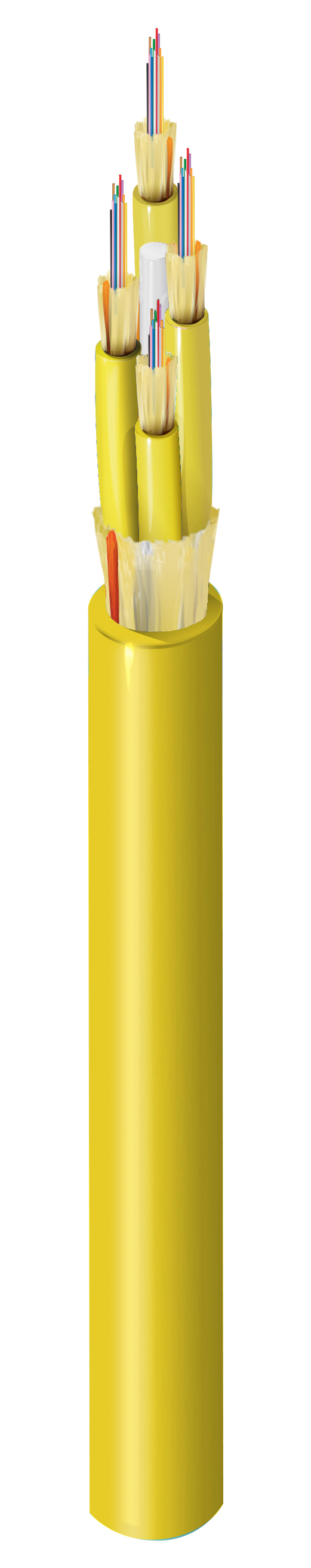

FISM048P1

Indoor Mini-Distribution OS2 48 Fibers OFNP Sub-units 2.0 mm (12F)

...
FX Indoor, Mini-Distribution, OS2, 48 Fibers, OFNP, Sub-units 2.0 mm (12F), Yellow Jacket

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Product Category

Fiber Mini Distribution Cable

Suitable Applications

Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking

Fiber Specifications

Fiber Type

OS2, G.657.A1, G.652.D

Fiber Core Diameter

8.2/125 µm

Fiber Diameter

250 µm

Fiber Count

48

Fiber Color Coding

TIA-598-D

Cable Construction

Number of Active Subunits

4

Fibers Per Subunit

12

Subunit Diameter

0.078 in (2.0 mm)

Subunit Color

Yellow

Subunit Strength Members

Aramid yarns

Central Strength Member

GRP

Outer Jacket Specifications

Strength Member

Aramid Yarns

Jacket Material

PVC - Polyvinyl Chloride

Nom. Diameter

0.272 in (6.9 mm)

Color

Yellow

Number of Ripcords

1

Optical Characteristics
Wavelength 1310 nm 1550 nm
Max. Attenuation 0.5 dB/km 0.50 dB/km
10 Gigabit Ethernet Performance 10,000 m 50,000 m
Mechanical Characteristics

Min. Bend Radius During Installation

15x Cable OD

Min. Bend Radius During Operation

10x Cable OD

Max. Tensile Strength During Installation

660 N (150 lbf)

Max. Tensile Strength During Operation

200 N (45 lbf)

Crush Resistance

100 N/cm

Bulk Cable Weight

32 lbs/kft (46 kg/km)

Temperature Range

Installation Temperature Range

0°C to +60°C

Operating Temperature Range

0°C to +70°C

Storage Temperature Range

-40°C to +70°C

Standards and Compliance

Environmental Suitability

Indoor

Flammability / Reaction to Fire

NFPA 262, FT6

NEC / UL Compliance

OFNP

CEC / C(UL) Compliance

OFNP

ICEA Compliance

S-83-596

TIA/EIA Compliance

598-D

Telcordia Compliance

GR-409

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment)

History

Update and Revision

Revision Number: 0.83 Revision Date: 03-10-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type UPC
FISM048P1 Yellow Reel 612825287094
