9182

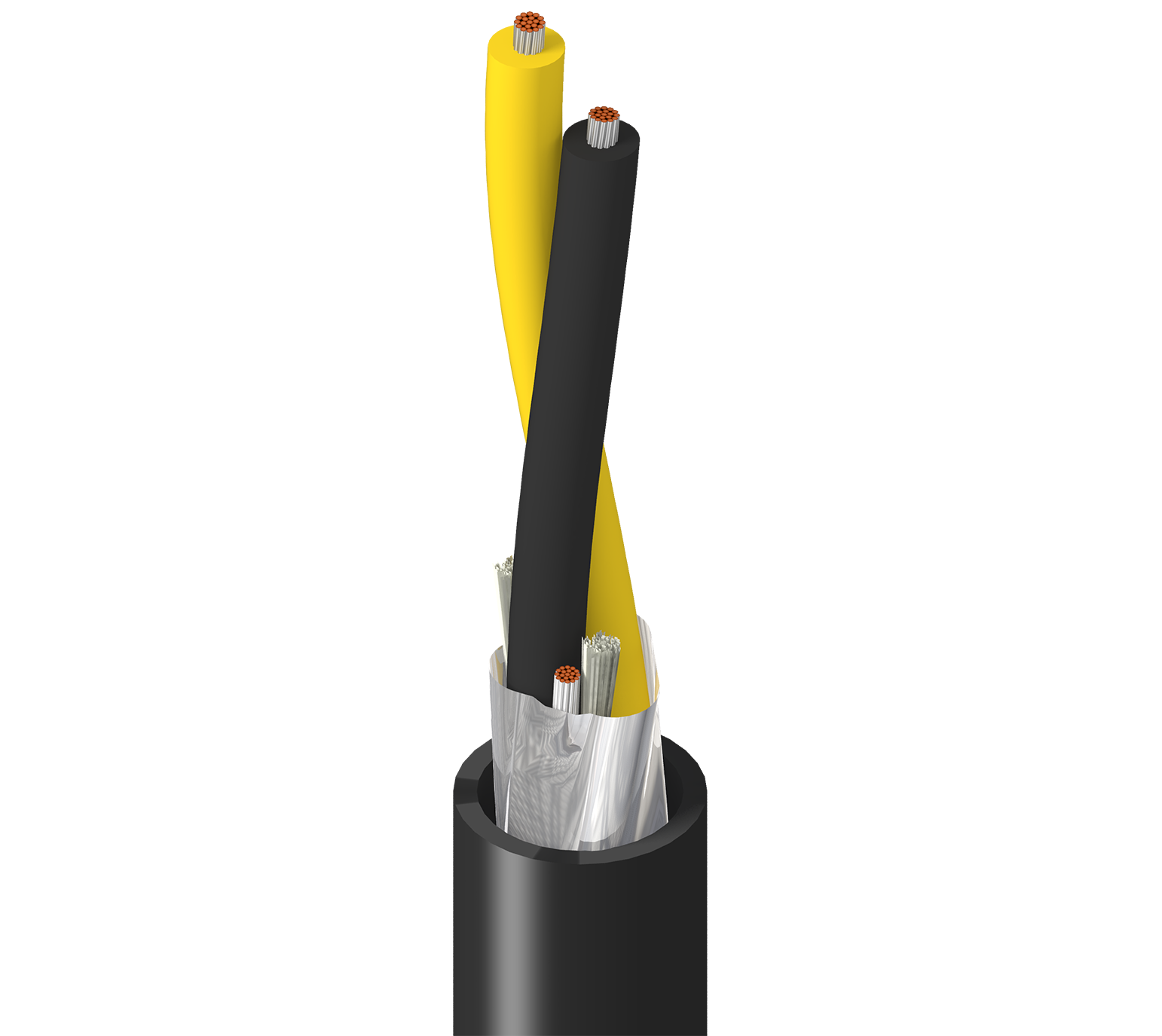

150Ω Twinax, 1 Pr #22 Str TC, FPE Ins, OA Duofoil®, PVC Jkt, CMX

...
Twinax 150Ω, 1 Pair 22AWG (19x34) Tinned Copper, Foam PE Insulation, Overall Duofoil® Shield, PVC Outer Jacket, CMX

Regions Available: Global
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details
Conductor
Element No. of Elements Size Stranding Nom. Diameter Material
Pair(s) 2 22 AWG 19x34 0.030 in TC - Tinned Copper
Insulation
Element Material Nom. Insulation Diameter Color Code
Pair(s) PE - Polyethylene (Foam) 0.134 in (3.40 mm) Black & Yellow
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.345 in (8.76 mm)

Overall Cable Diameter (Nominal)

0.345 in (8.76 mm)

Electrical Characteristics
Attenuation
Frequency Nom. Attenuation
1 MHz 0.40 dB/100ft
10 MHz 1.20 dB/100ft
50 MHz 2.70 dB/100ft
100 MHz 4.30 dB/100ft
200 MHz 6.20 dB/100ft
400 MHz 8.80 dB/100ft
Electricals
Element Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Cond (Mutual) Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
Pair(s) 14.0 Ohm/1000ft 6.3 Ohm/1000ft (21 Ohm/km) 8.8 pF/ft (29 pF/m) 16.5 pF/ft (54.1 pF/m) 150 Ohm 78%
Voltage
UL Voltage Rating
300 V (CMX)
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
6.0 in (150 mm) 3.5 in (89 mm)

Max. Pull Tension

28 lbs (13 kg)

Bulk Cable Weight

40 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Sunlight Resistance, Aerial - Black only, When supported by messenger wire

Sustainability

CA Prop 65

Flammability / Reaction to Fire

VW-1, FT1

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, Article 800, CL2X, CMX

AWM Compliance

AWM 2668

CEC / C(UL) Compliance

CMX

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

89182

Product Notes

Notes

Cable contains fillers for better electrical performance.

History

Update and Revision

Revision Number: 0.520 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
9182 010500 Black Reel 500 ft 612825225126 C
9182 010U500 Black Reel 500 ft 612825225102
9182 0101000 Black Reel 1,000 ft 612825225119 C
9182 0105000 Black Reel 5,000 ft 612825225133 C
