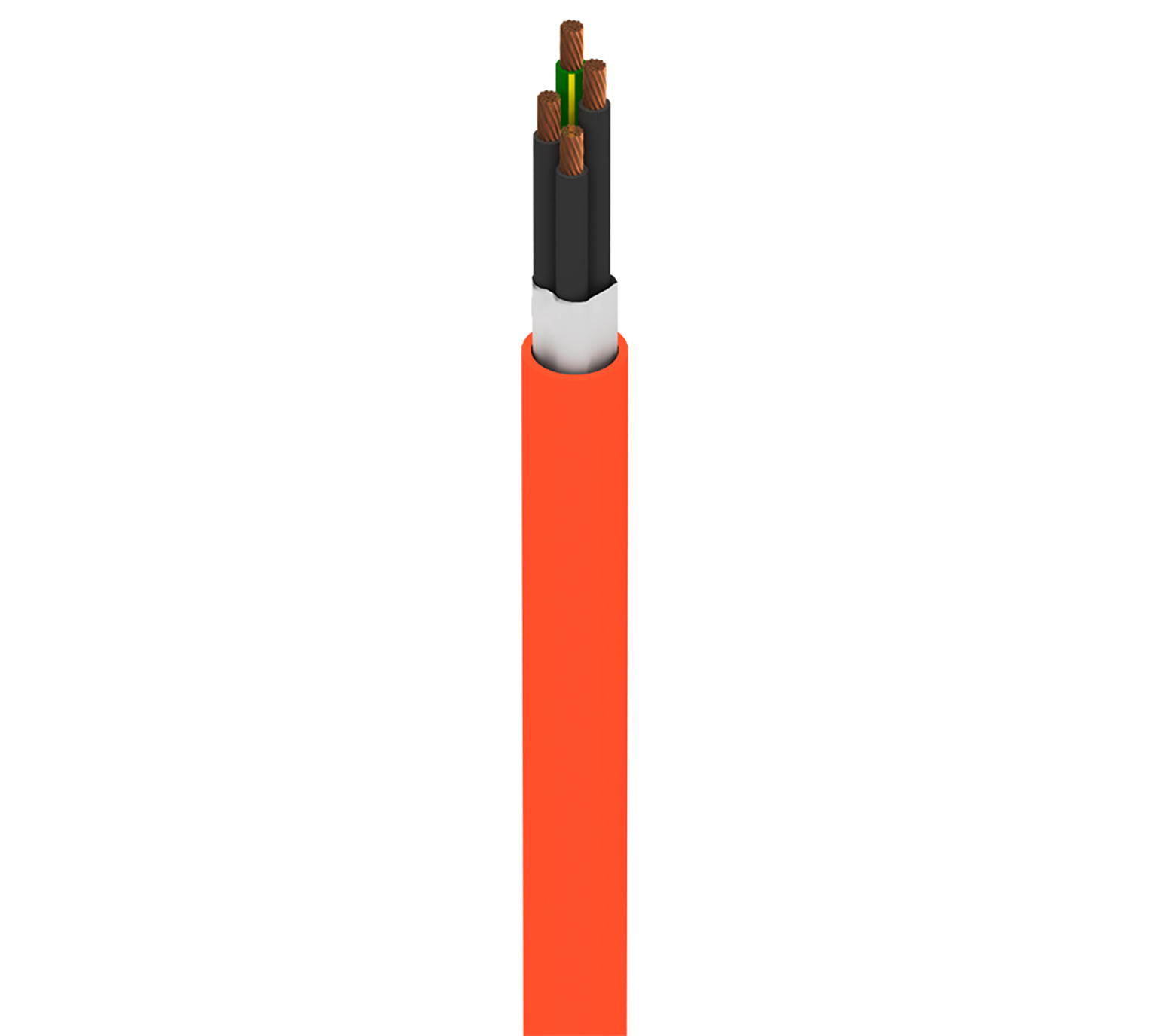

Product Number: 7145W
MachFlex™, 3+1G C #12 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER
MachFlex™ for High Flex, 3+1G Conductor 12AWG (413(7x59)x38) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Robotics, Robot, Continuous Flex |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 12 AWG | 413x38 | BC - Bare Copper |
| Ground Wire | 1 | 12 AWG | 413x38 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PVC/Nylon - Polyvinyl Chloride + Nylon | 0.021 in (0.53 mm) | 0.146 in (3.71 mm) | Black and Numbered |
| Ground Wire | PVC/Nylon - Polyvinyl Chloride + Nylon | 0.021 in (0.53 mm) | 0.146 in (3.71 mm) | Green/Yellow |
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Separator | Material | Nom. Thickness | Nom. Diameter |
|---|---|---|---|
| non-Woven Tape | TPE - Thermoplastic Elastomer | 0.047 in (1.2 mm) | 0.446 in |
|
Overall Cable Diameter (Nominal) |
0.446 in |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Max. Current |
|---|---|---|
| Conductor(s) | 1.68 Ohm/1000ft | 36 Amps per Conductor at 30ºC |
| Ground Wire | 1.72 Ohm/1000ft (5.64 Ohm/km) | 57.5 Amps per Conductor at 30ºC |
Voltage
| UL Voltage Rating |
|---|
| 1000 V (WTTC), 600 V (TC-ER) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| UL : 90°C Dry, 75°C Wet; AWM 20328 : 105°C | -40°C To 105°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.78 in (45.2 mm) | 2.23 in |
|
Max. Pull Tension |
332.8 lbs (151.0 kg) |
|---|---|
|
Bulk Cable Weight |
152 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance |
|---|---|
|
Flammability / Reaction to Fire |
UL1685 UL Loading, IEEE 1202 FT4 |
|
NEC / UL Compliance |
Article 336 |
|
AWM Compliance |
AWM 20328, AWM I/II A/B |
|
CEC / C(UL) Compliance |
CIC, TC |
|
European Directive Compliance |
EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.290 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.290 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC | Footnote |
|---|---|---|---|
| 7145W 0031000 | Orange | 612825182597 | C |
| 7145W 003250 | Orange | 612825182603 | C |
| 7145W 0035000 | Orange | 612825182610 |
