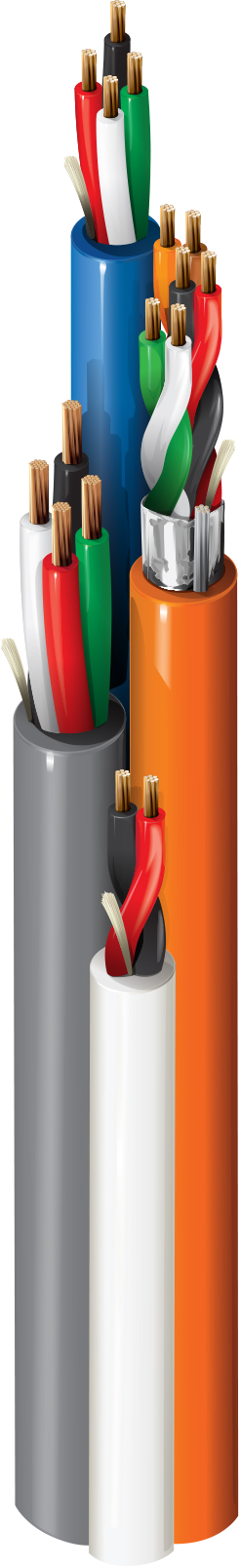

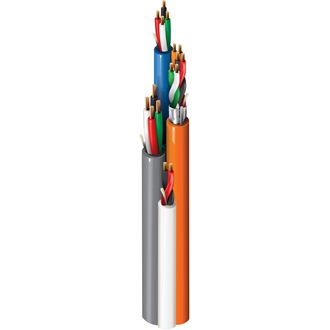

Access Control, 16c (#22-3pr, #18-4c, #22-6c), Only Card Reader Pairs Shielded, Banana Peel®, CMP
|
Suitable Applications |
Access Control, Security System, Power Limited Controls |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Element Description | Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|---|
| Card Reader | Pair(s) | 3 | 22 AWG | 7x30 | BC - Bare Copper |
| Door Contact | Conductor(s) | 2 | 22 AWG | 7x30 | BC - Bare Copper |
| REX/Spare | Conductor(s) | 4 | 22 AWG | 7x30 | BC - Bare Copper |
| Lock Power | Conductor(s) | 4 | 18 AWG | 7x26 | BC - Bare Copper |
| Element Description | Element | Material | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Card Reader | Pair(s) | PVC - Polyvinyl Chloride | Black & Red, White & Green, Brown & Orange | |
| Door Contact | Conductor(s) | PVC - Polyvinyl Chloride | Black, Red | |
| REX/Spare | Conductor(s) | PVC - Polyvinyl Chloride | Black, Red, White, Green | |
| Lock Power | Conductor(s) | PVC - Polyvinyl Chloride | 0.062 in (1.6 mm) |
| Element Description | Element | Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|---|---|
| Card Reader | Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Door Contact | Conductor(s) | No Shield | |||
| REX/Spare | Conductor(s) | No Shield | |||
| Lock Power | Conductor(s) | No Shield |
| Element Description | Element | Material | Nom. Diameter | Ripcord | Color |
|---|---|---|---|---|---|
| Card Reader | Pair(s) | PVC - Polyvinyl Chloride | 0.216 in (5.49 mm) | Yes | Orange |
| Door Contact | Conductor(s) | PVC - Polyvinyl Chloride | 0.120 in (3.05 mm) | Yes | White |
| REX/Spare | Conductor(s) | PVC - Polyvinyl Chloride | 0.139 in (3.53 mm) | Yes | Blue |
| Lock Power | Conductor(s) | PVC - Polyvinyl Chloride | 0.180 in (4.57 mm) | Yes | Gray |
| Nom. Diameter |
|---|
| 0.396 in (10.1 mm) |
|
Overall Cable Diameter (Nominal) |
0.396 in (10.1 mm) |
|---|
| Element Description | Element | Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield | Max. Current |
|---|---|---|---|---|---|---|
| Card Reader | Pair(s) | 16.3 Ohm/1000ft (53.5 Ohm/km) | 14.9 Ohm/1000ft (48.9 Ohm/km) | 24 pF/ft (79 pF/m) | 60 pF/ft (200 pF/m) | 2 Amps per Conductor at 25ºC |
| Door Contact | Conductor(s) | 16.4 Ohm/1000ft (53.8 Ohm/km) | 2.2 Amps per Conductor at 25ºC | |||
| REX/Spare | Conductor(s) | 16.4 Ohm/1000ft (53.8 Ohm/km) | 2.2 Amps per Conductor at 25ºC | |||
| Lock Power | Conductor(s) | 6.5 Ohm/1000ft (21 Ohm/km) | 4 Amps per Conductor at 25ºC |
| UL Voltage Rating |
|---|
| 300 V (UL CMP) |
| Operating |
|---|
| 0°C to +75°C |
|
Max. Pull Tension |
147 lbs (66.7 kg) |
|---|---|
|
Bulk Cable Weight |
86 lbs/1000ft (130 kg/km) |
|
Environmental Suitability |
Indoor - Plenum, Indoor |
|---|---|
|
Flammability / Reaction to Fire |
NFPA 262 |
|
NEC / UL Compliance |
Article 800, CMP |
|
CEC / C(UL) Compliance |
CMP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
558AMS |
|
Notes |
Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation. |
|---|
|
Update and Revision |
Revision Number: 0.126 Revision Date: 05-31-2024 |
|---|
