Product Number: 5220FL
Fire Alarm, #16-2c BC, Shielded, FPLR

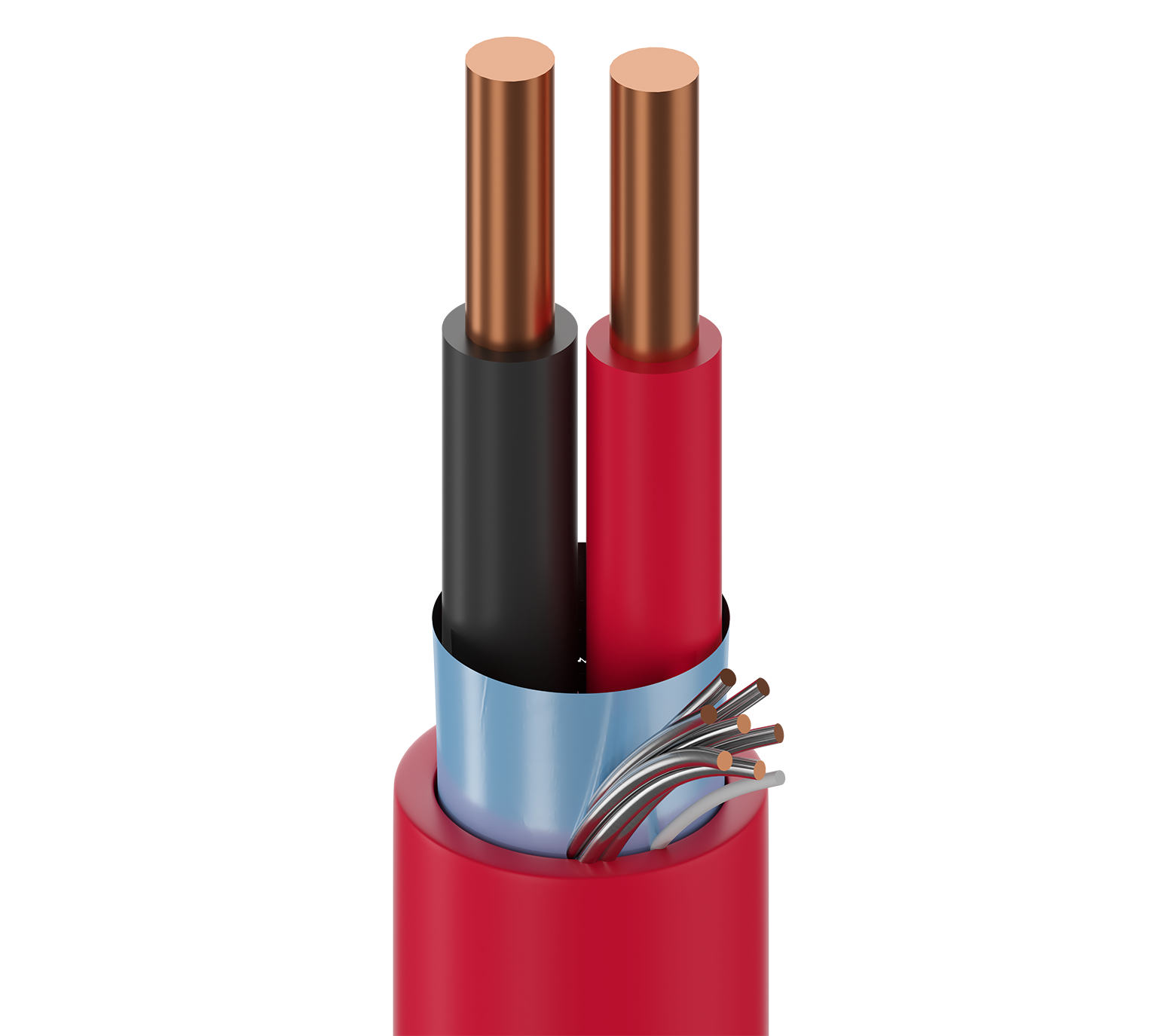

Fire Alarm Cable, Riser-FPLR, 2-16 AWG solid bare copper conductors with polypropylene insulation, overall Beldfoil® shield, PVC jacket with ripcord
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 16 AWG | Solid | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PP - Polypropylene | 0.007 in (0.18 mm) | 0.065 in (1.7 mm) | Black, Red |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (Solid) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.170 in (4.32 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.170 in (4.32 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 3.9 Ohm/1000ft | 65.5 pF/ft (215 pF/m) | 118 pF/ft (387 pF/m) | 6.3 Amps per conductor @ 25°C |
Voltage
| UL Voltage Rating |
|---|
| 300 V (FPLR) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.7 in (43 mm) | 1.7 in (43 mm) |
|
Max. Pull Tension |
75 lbs (34 kg) |
|---|---|
|
Bulk Cable Weight |
23 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor - Riser, Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL 1666 Riser, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 760, FPLR |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
6220FL |
History
|
Update and Revision |
Revision Number: 0.464 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.464 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC | Footnote |
|---|---|---|---|
| 5220FL D151000 | Blue | 612825158301 | |
| 5220FL 0021000 | Red | 612825158318 | C |
| 5220FL 0091000 | White | 612825158325 |
