Product Number: 6524UL
Fire Alarm, #22-6c BC, FPLP

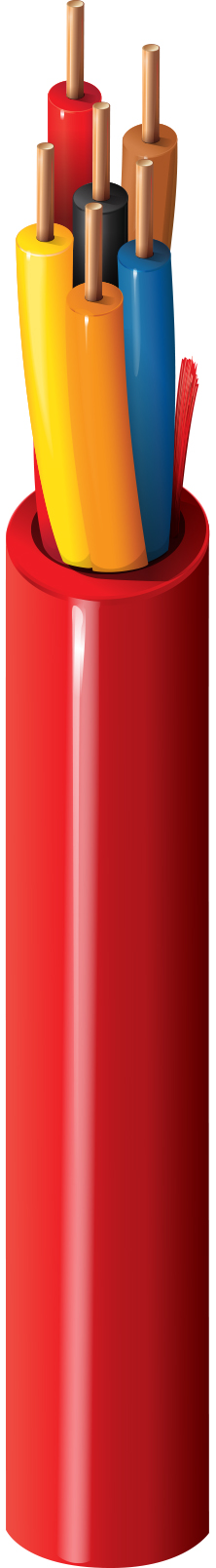

Fire Alarm Cable, Plenum-FPLP,6-22 AWG solid bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|
| 22 | Solid | BC - Bare Copper | 6 |
|
Conductor Count |
6 |
|---|
Insulation
| Material | Material Trade Name | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.009 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black |
| 2 | Red |
| 3 | Brown |
| 4 | Blue |
| 5 | Orange |
| 6 | Yellow |
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Material | Material Trade Name | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.162 in | 0.015 in | Yes |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR |
|---|
| 15.7 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor |
|---|
| 25 pF/ft |
Current
| Max. Recommended Current [A] |
|---|
| 2 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
UL Temp Rating |
75°C |
|---|---|
|
Operating Temperature Range |
0°C To +75°C |
Mechanical Characteristics
|
Bulk Cable Weight |
20.8 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
46.8 lbs |
|
Min. Bend Radius/Minor Axis |
1.6 in |
Standards
|
NEC Articles |
Article 760 |
|---|---|
|
NEC/(UL) Compliance |
FPLP |
|
Other Specification |
California State Fire Marshall |
Applicable Environmental and Other Programs
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|---|---|
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
NFPA 262 Plenum Flame Test (UL910) |
|---|---|
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
Yes |
|---|
Related Part Numbers
|
Non-Plenum Number |
5524UL |
|---|
History
|
Update and Revision |
Revision Number: 0.298 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.298 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 6524UL 002C500 | Red | 612825178194 |
