Product Number: R301603

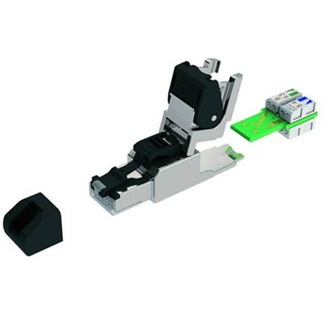

IND RUGG RJ45 T568A AWG24-26 IP20 CAT6A UTP/STP FIELD KIT
DATATUFF ® INDUSTRIAL ETHERNET RUGGEDIZED RJ45 T568A PLUG CAT6A UTP/STP (FIELD KIT) SUITABLE FOR USE IN IP20 INSTALLATION
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
noisy environment, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
Physical Characteristics (Overall)
|
Height |
0.62 |
|---|---|
|
Width |
0.54 |
|
Depth |
2.06 |
|
Wiring Scheme |
T568A |
|
Packaging |
Individually packaged in a plastic bag. |
|
Weight |
0.060 lbs |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Front Connection | Copper Clad PCB, Gold plated contacts | RJ45 |
| Rear Connection | Zinc diecast - Nickel plated | Ind DataTuff |
| Connector Body | Nickel plated zinc alloy diecast |
Electrical Characteristics
|
Dielectric Strength |
1,000V RMS @ 60 Hz for 1 minute (Signals to Ground) |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Termination Resistance |
2.5 m-Ohm |
Temperature Range
|
Installation Temperature Range |
-40°C To +85°C |
|---|---|
|
Storage Temperature Range |
-40°C To +85°C |
|
Operating Temperature Range |
-40°C To +85°C |
Mechanical Characteristics
|
Footprint/Type |
Modular |
|---|---|
|
Plug /Jack Compatibility |
RJ45 |
|
Termination Front Connection |
Mated Connection |
|
Termination Front Connection Durability |
750 cycles |
|
Termination Rear Connection |
Mated Connection |
|
Termination Rear Connection Durability |
750 cycles |
|
Connector/Hardware Retention |
20 lbs |
|
Plug/Connector Retention |
11.250 lbs |
Standards
|
UL Rating |
UL94V-0 |
|---|---|
|
TIA/EIA Compliance |
Category 6A - TIA 568.2-D, Category 6A - ISO/IEC 11801:2002 Ed.2 |
|
IEEE Compliance |
Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W) |
|
Other Standards |
IEC 60603-7, FCC Part 68-F |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL2043 Air Handling Spaces |
|---|---|
|
Safety Listing |
c(UL)us Listed |
Related Part Numbers
|
Related Parts |
DataTuff Cables, Connectors and Accessories |
|---|
Product Notes
|
Notes |
Please see Installation Guide PX105479. Suitable for use with cables 300V RMS and 600V AWM. Outer Jacket Diameter range: 0.197 to 0.354 in. Insulation Diameter range: 0.033 to 0.042 in. Parallel Pliers-Wrench recommended as per Installation Guide. |
|---|
