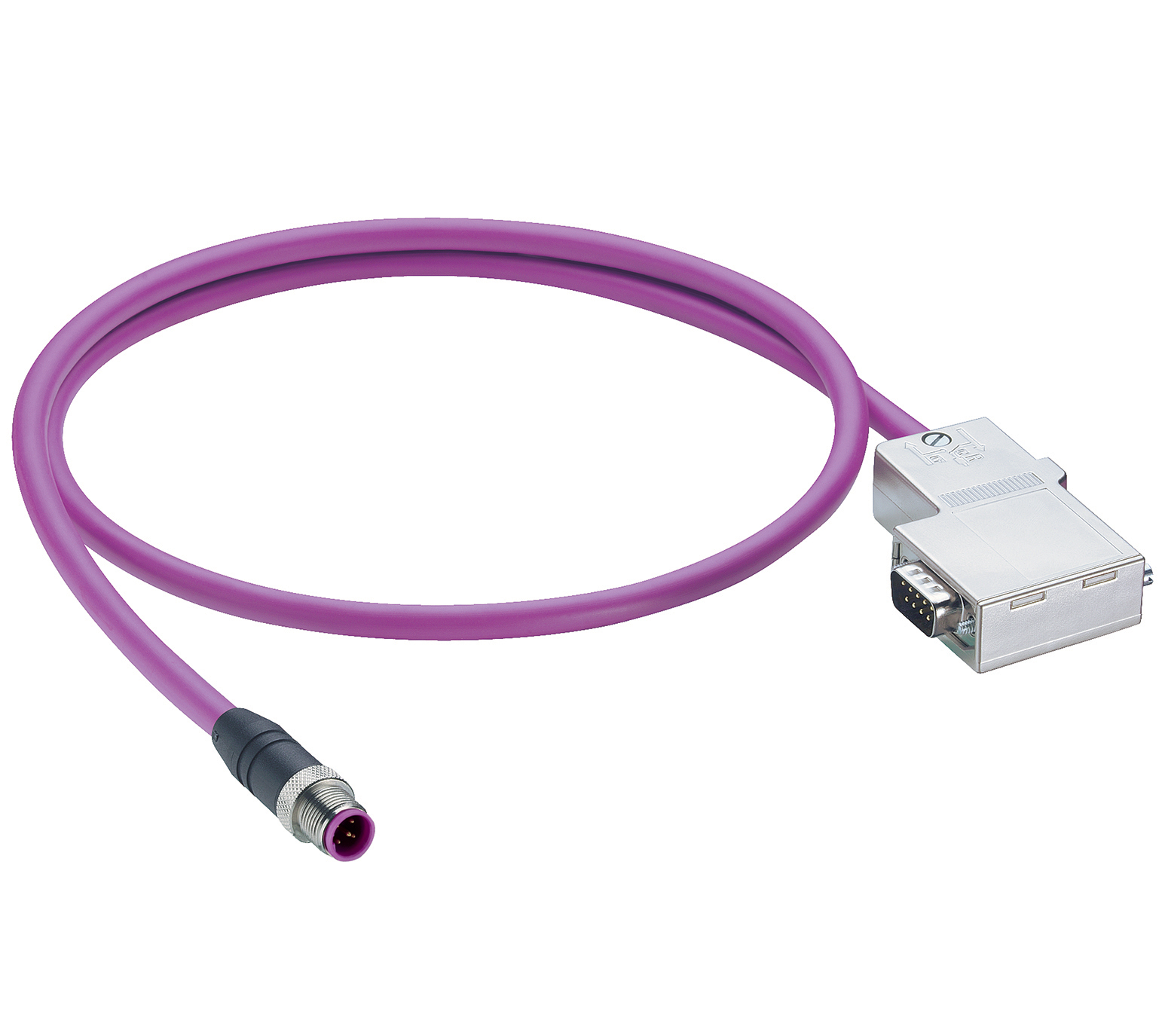

PROFIBUS Data Double-Ended Cordset: Male straight B-coded black M12 Standard to male angled SUB-D-coded SUB-D, shielded, + 4.75 … +5.25 V DC, 12.5 mA; PUR violet cable, 2-wires, 0.34 mm²

Request Quote

Get Product Alerts

Specifications

Report An Error

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5
n.c.	green	n.c.	red	n.c.

Pin 1	Pin 2	Pin 3	Pin 4	Pin 5	Pin 6	Pin 7	Pin 8	Pin 9
n.c.	n.c.	green	n.c.	n.c.	n.c.	n.c.	red	n.c.

Product Sub Family	M12 Standard
Type of Contact / Gender	Male
Connector Design	Straight
Attachment Type	Coupling Screw
Number of Pins	5
Coding	B
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 25 °C - + 80 °C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	I acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuZn
Contact Plating	Cu/Au
Contact Bearer Material	TPU-GF
Contact Bearer Color	Violett
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Shielding Material	CuZn, tin-plated
Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight
Note	Do not connect or disconnect under load.

Cable Number	254
Conductor Size	0.34 mm²
Number of Wires	2
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 1 M
Conductor material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	violet matt similarly RAL 4001
Cable Diameter D	ø 7.60 ± 0.30 mm
Wire Insulation Material	PE
Insulated Wire Diameter	ø 2.60 ± 0.05 mm
Overall Shield (Cable)	Cu-ETP1 tinned
Foil shield	Al-PT Foil
Ambient Temperature (Fixed Installation)	- 50 °C - + 80 °C
Ambient Temperature (Flex Installation)	- 25 °C - + 80 °C
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2, flame-retardant
Cable Characteristics	Exclusion of dangerous materials; Line fulfills the transmission values RS485 (Type A) of the PROFIBUS user organization; Free of lacquer wetting disturbing substances; Good microbes and hydrolysis resistance Mainly plasticizer diffusion free; Good chemical and oil resistance; Exclusion of PVC and Silicone; Coldness flexibility
Core Colors	red, green

Product Sub Family, Side 2	SUB-D
Type of Contact / Gender, Side 2	Male
Connector Design, Side 2	Angled
Number of Pins, Side 2	9
Coding, Side 2	SUB-D
Contact Resistance, Side 2	≤ 20 mOhm
Ambient Temperature (Operation), Side 2*	0 °C - + 60 °C
Protection Degree / IP Rating, Side 2**	IP40
Overvoltage Category, Side 2	I acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2	CuZn
Contact Plating, Side 2	Cu/Au
Contact Bearer Material, Side 2	PA
Contact Bearer Color, Side 2	Black
Flammability Class (Contact Bearer), Side 2	UL 94 V-0
Molded Body Material, Side 2	ABS, nickel-plated
Molded Body Color, Side 2	Nickel

RoHS Compliant	yes

Halogenfree	DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating	Notice derating

Update and Revision	Revision Number: 0.61 Revision Date: 01-19-2023
