0985 YM57530 103

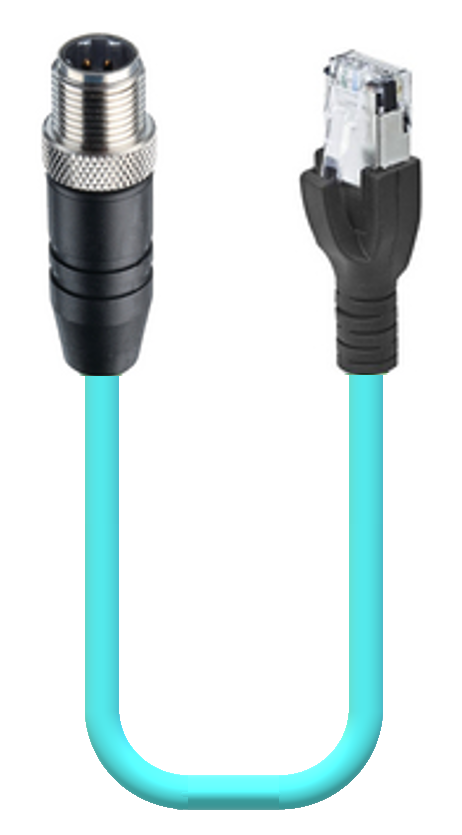

Fast Ethernet Cat5e, double-ended cord set, M12 male, straight, 4-pin, D-coding to a RJ45 male, straight, 8-pin, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with teal jacket

Request Quote

Get Product Alerts

Specifications

Report An Error

Product Sub Family	M12 Standard
Type of Contact / Gender	Male
Connector Design	Straight
Attachment Type	Knurled Screw
Number of Pins	4
Coding	D
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 25 °C - + 75 °C
Protection Degree / IP Rating**	IP65, IP67
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material	CuSn
Contact Plating	Cu/Au
Contact Bearer Material	PBT
Contact Bearer Color	Black
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Black
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
Shielding Material	CuZn, tin-plated
Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Cable Type	103
Cable Number	YM57530
Conductor Size	24 AWG
Number of Wires	2 Pair (bonded twisted pairs)
Minimal Bending Radius (Fixed Inst)	5 x D
Minimal Bending Radius (Flexible Inst)	10 x D
Cycles (Bending)	3
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Cable Jacket Material	TPE
Cable Jacket Color	Teal
Cable Diameter D	ø 7.62 mm
Wire Insulation Material	Polyolefin
Insulated Wire Diameter	ø 1.02 ± 0.05 mm
Overall Shield (Cable)	TC Braid 65%
Foil shield	Al Foil 100%
Ambient Temperature (Fixed Installation)	- 40 °C - + 75 °C
Ambient Temperature (Flex Installation)	- 25 °C - + 75 °C
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM 20626, 80C 600 V
Cable Characteristics	NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e, Indoor/Outdoor Yes, Oil Res
Core Colors	Bonded Twisted pairs: wh/or \| wh/gn

Product Sub Family, Side 2	RJ45
Type of Contact / Gender, Side 2	Male
Connector Design, Side 2	Straight
Attachment Type, Side 2	Plug
Number of Pins, Side 2	8 (4 terminated)
Coding, Side 2	RJ45
Mating Cycles, Side 2	≤ 750
Ambient Temperature (Operation), Side 2*	- 40 °C - + 70 °C
Protection Degree / IP Rating, Side 2**	IP20
Contact Base Material, Side 2	P / CuSN
Contact Plating, Side 2	Au
Contact Bearer Material, Side 2	Polycarbonate
Contact Bearer Color, Side 2	Clear
Molded Body Material, Side 2	Elastomer Polyolefin
Molded Body Color, Side 2	Black

RoHS Compliant	Yes

Oil Resistance	Yes

Note Derating	Notice derating

Update and Revision	Revision Number: 0.37 Revision Date: 08-25-2022
