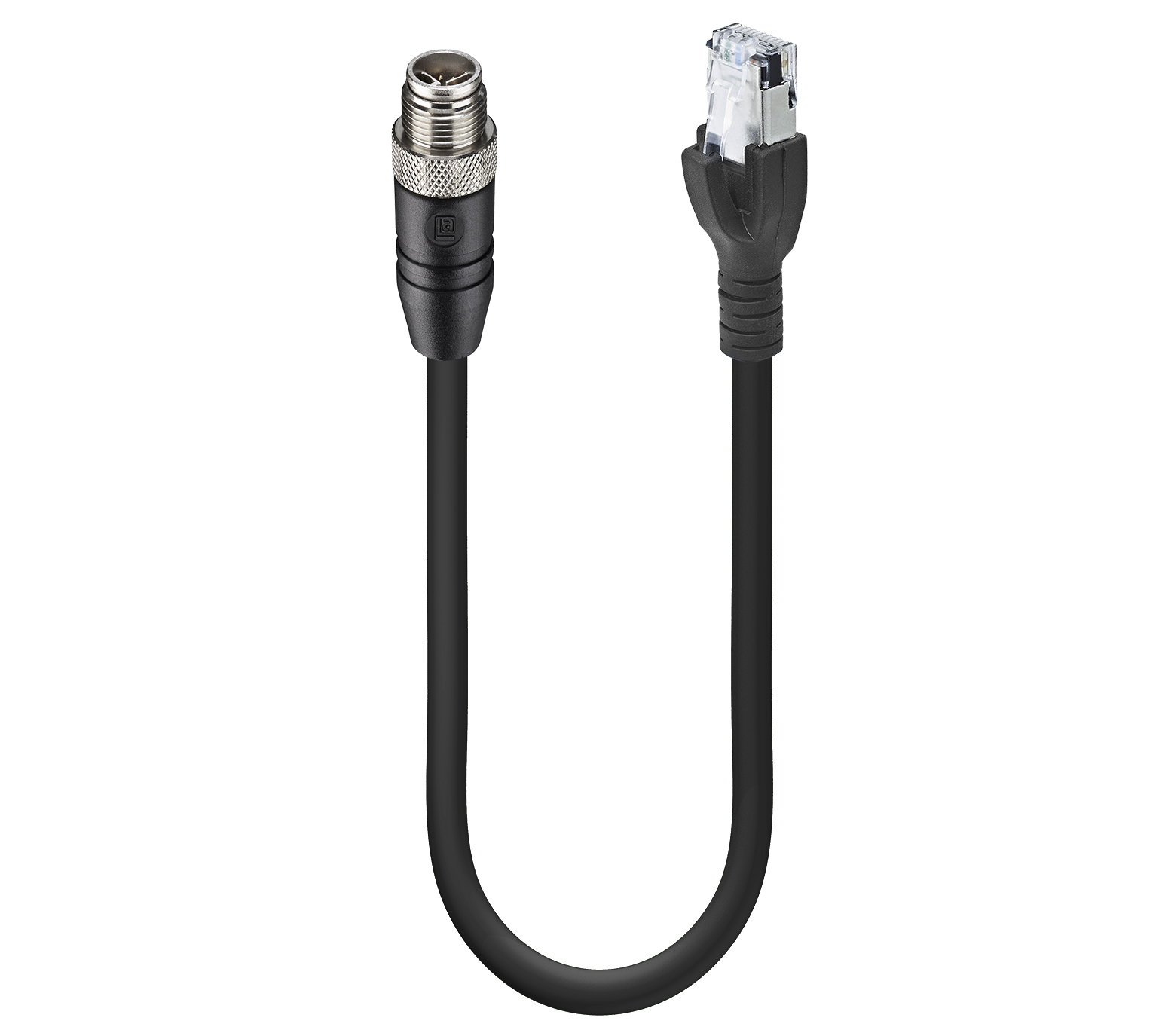

Gigabit Ethernet Cat7 Data Double-Ended Cordset: Male straight X-coded black M12 Standard to male straight RJ45-coded black RJ45, shielded, 30 V AC / 42 V DC, 0.5 A; PUR black cable, 8-wires, 4x2x0.14 mm²
| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 |
|---|---|---|---|---|---|---|---|
| white (orange) | orange | white (green) | green | white (brown) | brown | white (blue) | blue |
| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 |
|---|---|---|---|---|---|---|---|
| white (orange) | orange | white (green) | blue | white (blue) | green | white (brown) | brown |
|
Product Family |
Data Connectors |
|---|---|
|
Connector Type |
Cordset, double ended |
|
Shielding |
Shielded |
|
Rated Voltage |
60 V |
|
Rated Impulse Voltage |
0.8 kV |
|
Operating Voltage |
30 V AC / 42 V DC |
|
Rated Current* |
0.5 A |
|
Data Transmission |
Gigabit Ethernet Cat7 |
|
Data Transmission Rate |
10 Gbit/s |
|
Product Sub Family |
M12 Standard |
|---|---|
|
Type of Contact / Gender |
Male |
|
Connector Design |
Straight |
|
Attachment Type |
Coupling Screw |
|
Number of Pins |
8 |
|
Coding |
X |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 40 °C - + 80 °C |
|
Protection Degree / IP Rating** |
IP65, IP67 |
|
Design Standard |
IEC 61076-2-109 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
I acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
PA |
|
Contact Bearer Color |
Black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Molded Body Material |
PA |
|
Molded Body Color |
Black |
|
Flammability Class (Molded Body) |
UL 94 V-0 |
|
Attachment Material |
CuZn |
|
Attachment Plating |
Nickel-plated |
|
Shielding Material |
GD-Zn, nickel-plated |
|
Fastening Torque (Attachment) |
M 12x1: (50-60) Ncm, hand-tight |
|
Note |
Do not connect or disconnect under load. |
|
Cable Number |
478 |
|---|---|
|
Conductor Size |
4x2x0.14 mm² |
|
Number of Wires |
8 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 30 mm |
|
Minimal Bending Radius (Flexible Inst) |
˃ 65 mm |
|
Cycles (Bending) |
˃ 0.2 M |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PUR |
|
Cable Jacket Color |
black |
|
Cable Diameter D |
ø 6.8 ± 0.3 mm |
|
Wire Insulation Material |
PE |
|
Insulated Wire Diameter |
ø 1.05 ± 0.05 mm |
|
Overall Shield (Cable) |
Cu-ETP1 tinned |
|
Foil shield |
Al-PT Foil |
|
Ambient Temperature (Fixed Installation) |
- 40 °C - + 80 °C |
|
Ambient Temperature (Flex Installation) |
0 °C - +50 °C |
|
UL Cable Type |
AWM: 21327 |
|
Core Colors |
Twisted pairs: white & blue, white & orange, white & green, white & brown |
|
Product Sub Family, Side 2 |
RJ45 |
|---|---|
|
Type of Contact / Gender, Side 2 |
Male |
|
Connector Design, Side 2 |
Straight |
|
Number of Pins, Side 2 |
8 |
|
Coding, Side 2 |
RJ45 |
|
Contact Resistance, Side 2 |
≤ 20 mOhm |
|
Insulation Resistance, Side 2 |
˃ 10^9 Ohm |
|
Mating Cycles, Side 2 |
≤ 750 |
|
Ambient Temperature (Operation), Side 2* |
- 10 °C - + 60 °C |
|
Protection Degree / IP Rating, Side 2** |
IP20 |
|
Design Standard, Side 2 |
IEC 60603-7 |
|
Overvoltage Category, Side 2 |
I acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material, Side 2 |
Copper Alloy |
|
Contact Plating, Side 2 |
Cu/Au |
|
Contact Bearer Material, Side 2 |
PC |
|
Contact Bearer Color, Side 2 |
Clear |
|
Flammability Class (Contact Bearer), Side 2 |
UL 94 V-0 |
|
Molded Body Material, Side 2 |
PVC |
|
Molded Body Color, Side 2 |
Black |
|
Shielding Material, Side 2 |
Copper, nickel-plated |
|
RoHS Compliant |
yes |
|---|
|
Halogenfree |
IEC 60754-2 |
|---|---|
|
Oil Resistance |
IEC 60811-2-1 |
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
Note Derating |
Notice derating |
|
Update and Revision |
Revision Number: 0.53 Revision Date: 01-19-2023 |
|---|
| Item # | Item Description | Cable Length |
|---|---|---|
| 13395 | RSTS 8X-RJ45 G-478/0,3 M | 0.3 m |
| 12208 | RSTS 8X-RJ45 G-478/0,5 M | 0.5 m |
| 12384 | RSTS 8X-RJ45 G-478/1 M | 1 m |
| 12385 | RSTS 8X-RJ45 G-478/2 M | 2 m |
| 13017 | RSTS 8X-RJ45 G-478/3 M | 3 m |
| 12386 | RSTS 8X-RJ45 G-478/4 M | 4 m |
| 10438 | RSTS 8X-RJ45 G-478/5 M | 5 m |
| 12387 | RSTS 8X-RJ45 G-478/7 M | 7 m |
| 18995 | RSTS 8X-RJ45 G-478/7,5 M | 7.5 m |
| 13173 | RSTS 8X-RJ45 G-478/8 M | 8 m |
| 11385 | RSTS 8X-RJ45 G-478/10 M | 10 m |
| 21698 | RSTS 8X-RJ45 G-478/12 M | 12 m |
| 11396 | RSTS 8X-RJ45 G-478/15 M | 15 m |
| 11397 | RSTS 8X-RJ45 G-478/20 M | 20 m |
| 14329 | RSTS 8X-RJ45 G-478/25 M | 25 m |
| 13170 | RSTS 8X-RJ45 G-478/30 M | 30 m |
| 13242 | RSTS 8X-RJ45 G-478/40 M | 40 m |
| 13171 | RSTS 8X-RJ45 G-478/50 M | 50 m |
| 13147 | RSTS 8X-RJ45 G-478/55 M | 55 m |
| 13148 | RSTS 8X-RJ45 G-478/60 M | 60 m |
| 15571 | RSTS 8X-RJ45 G-478/75 M | 75 m |
