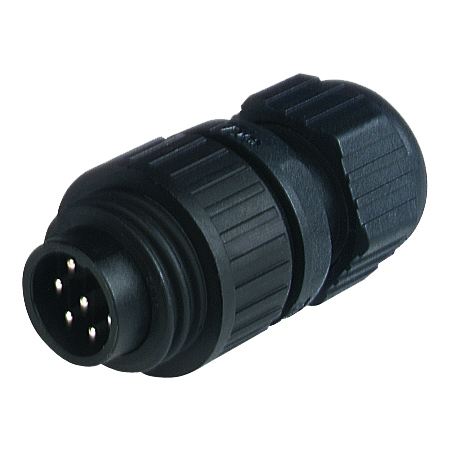

Product Number: CA 6 LS
Circular Field Attachable Power Connector (CA Series): Male, straight, 7-pin(6+PE), integrated strain relief, 230 V AC/DC, 10 A
Circular Field Attachable Power Connector (CA Series): Male, straight, 7-pin(6+PE), integrated strain relief, 230 V AC/DC, 10 A
-
Availability:
Global
-
Global inventory:
Available
Specifications
Face View
|
Product Family |
Power Connector |
|---|---|
|
Product Sub Family |
CA-Series |
|
Connector Type |
Field Attachable |
|
Type of Contact / Gender |
male |
|
Connector Design |
straight |
|
Number of Pins |
7(6+PE) |
|
Shielding |
Unshielded |
|
Attachment Type |
Coupling Screw |
|
Rated Voltage |
250 V AC/DC |
|
Rated Impulse Voltage |
4.0 kV |
|
Operating Voltage |
230 V AC/DC |
|
Rated Current* |
10 A (0.75 mm²) |
|
Contact Resistance |
≤ 10 mOhm |
|
Type of Connection |
solder |
|
Cable Gland |
TR22 |
|
Conductor Cross Section |
max. 0.75 mm² |
|
Strain-Relief |
clamping cage |
|
Suitable Cables |
Ø6 mm to Ø12 mm, Gasket Ø9 mm for cables with Ø6 - 9 mm, Gasket Ø12 mm for cables with Ø9 - 12 mm |
|
Ambient Temperature (Operation)* |
-40°C to +90°C, notice derating |
|
Temperature Range (Gasket) |
-40°C to +90°C |
|
Protection Degree / IP Rating** |
IP66, IP67 |
|
Design Standard |
DIN EN 61984 (VDE 0627) |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Clearance / Creepage Distance |
DIN EN 60664-1 (2008/01); VDE 0110-1 |
Materials
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
Cu/Ag |
|
Contact Bearer Material |
PA 66 GF |
|
Contact Bearer Color |
black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Attachment Material |
PA 66 GF |
|
Flammability Class (Attachment) |
UL 94 V-0 |
|
Gasket Material |
NBR |
Circuitry
|
Fastening Torque (Cable Gland) |
TR22: min. 250 Ncm |
|---|---|
|
Mating Connectors / Fitting to |
934-127-100 CA 6 LD (field attachable, straight), 934-131-100 CA 6 W LD (field attachable, angled), 932-325-100 CA 6 GD (receptacle, straight) |
|
Accessories to Order Separately |
CA00 SD 1: 831-530-400, cap |
Approvals
|
UL-File |
E95522, Series CA 3 |
|---|---|
|
VDE |
VDE-Reg.-Nr. 2745 |
Notes
|
Note Derating |
* Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
Information
|
Note Derating |
* Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
Part Numbers
| Item # | Item Description | Housing Color | Housing Material | Cable Gland Material |
|---|---|---|---|---|
| 934126100 | CA 6 LS | black | PA 66 | PA 66 |
