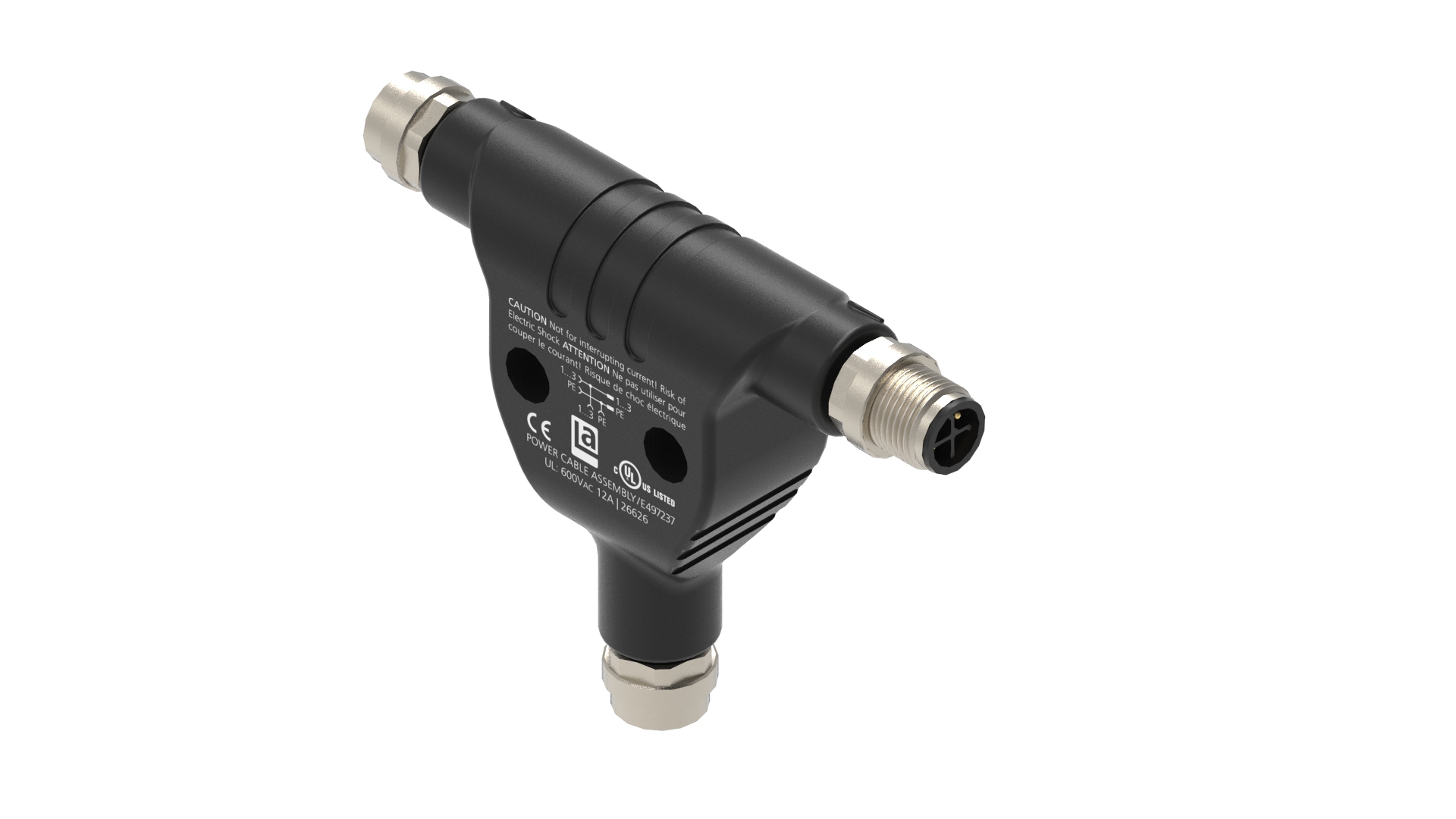

M12 Power T-splitter: input: male, 3+PE, S-coded; output: 1-2, female, 3+PE, S-coded
|
Product Family |
Power Connector |
|---|---|
|
Connector Type |
Molded Splitter |
|
Rated Voltage |
630 VAC |
|
Rated Voltage (UL) |
600 VAC |
|
Rated Current* |
12 A |
|
Product Sub Family |
M12 Power |
|---|---|
|
Type of Contact / Gender |
male, M12 |
|
Connector Design |
T shape |
|
Attachment Type |
Coupling Nut |
|
Number of Pins |
3+PE |
|
Coding |
S |
|
Insulation Resistance |
≥10^8 Ohm |
|
Mating Cycles |
≥100 |
|
Ambient Temperature (Operation)* |
-30°C to +90°C, notice derating |
|
Design Standard |
IEC 61076-2-111 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
PA |
|
Contact Bearer Color |
black |
|
Molded Body Material |
TPU |
|
Molded Body Color |
black |
|
Attachment Material |
CuZn |
|
Attachment Plating |
Cu/Ni |
|
O-Ring Material |
FPM/FKM |
|
Ambient Temperature (Fixed Installation) |
-30°C to +90°C |
|---|
|
Product Sub Family, Side 2 |
M12 Power |
|---|---|
|
Type of Contact / Gender, Side 2 |
female, M12 |
|
Number of Pins, Side 2 |
3+PE |
|
Coding, Side 2 |
S |
|
Contact Base Material, Side 2 |
CuZn |
|
Contact Plating, Side 2 |
Cu/Au |
|
Contact Bearer Material, Side 2 |
PA |
|
Contact Bearer Color, Side 2 |
black |
|
Attachment Material, Side 2 |
CuZn |
|
Coding, Side 3 |
S |
|---|---|
|
Contact Base Material, Side 3 |
CuZn |
|
Contact Bearer Color, Side 3 |
black |
|
Contact Bearer Material, Side 3 |
PA |
|
Contact Plating, Side 3 |
Cu/Au |
|
Number of Pins, Side 3 |
3+PE |
|
Protection Degree / IP Rating (IEC 60529), Side 3 |
IP65, IP67, IP68 |
|
Rated Current*, Side 3 |
12 A |
|
Rated Voltage, Side 3 |
630 VAC |
|
Rated Voltage (UL), Side 3 |
600 VAC |
|
Type of Contact / Gender, Side 3 |
female, M12 |
|
Product Sub Family, Side 4 |
M12 Power |
|---|---|
|
Protection Degree / IP Rating (IEC 60529), Side 4 |
IP65, IP67, IP68 |
|
Rated Current*, Side 4 |
12 A |
|
UL-File |
E497237 |
|---|---|
|
UL |
cULus |
|
RoHS Compliant |
yes |
|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
Note Derating |
* Notice derating |
| Item # | Item Description |
|---|---|
| 26626 | MPS-TU-RST 4S-2RKT 4S |
