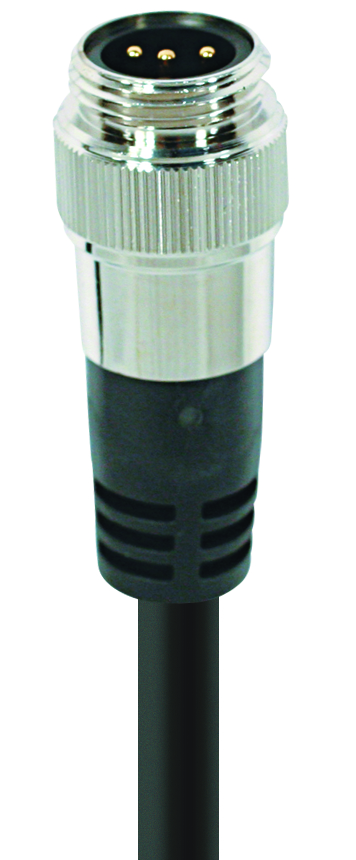

Mini Power Single-Ended Cordset: 7/8", male, straight, 3-pin(2+PE), black body, 600 V, 18 A; TPE black cable, 14 AWG
|
Product Family |
Power Connector |
|---|---|
|
Product Sub Family |
7/8" |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
male |
|
Connector Design |
straight |
|
Number of Pins |
3(2+PE) |
|
Shielding |
Unshielded |
|
Attachment Type |
Coupling Nut |
|
Rated Voltage (UL) |
600 V |
|
Rated Current (UL)* |
18 A |
|
Ambient Temperature (Operation)* |
-30 °C to +90 °C |
|
Protection Degree / IP Rating** |
IP 67, IP 68 |
|
Contact Base Material |
CuSn |
|---|---|
|
Contact Plating |
Ni/Au |
|
Contact Bearer Material |
PVC |
|
Contact Bearer Color |
black |
|
Molded Body Material |
PVC |
|
Molded Body Color |
black |
|
Attachment Material |
CuZn |
|
Cable Number |
802 |
|---|---|
|
Conductor Size |
14 AWG |
|
Number of Wires |
3 |
|
Cable Jacket Material |
TPE |
|
Cable Jacket Color |
black |
|
Cable Diameter D |
ø 0.359" |
|
Wire Insulation Material |
PVC/NYLON |
|
Ambient Temperature (Fixed Installation) |
-30 °C to +90 ° |
|
Flammability Class (Cable Jacket) |
FT-4 |
|
UL-File |
E482233 |
|---|---|
|
UL |
TC-ER |
|
RoHS Compliant |
Yes |
|---|
|
Oil Resistance |
Oil Res I/II |
|---|---|
|
UV Resistance |
Sunlight Res |
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|
| Item # | Item Description | Cable Length |
|---|---|---|
| 511000672 | RSPA 3-802/0.5M | 0.5 m |
| 511000673 | RSPA 3-802/1M | 1 m |
| 511000675 | RSPA 3-802/2M | 2 m |
| 511000677 | RSPA 3-802/3M | 3 m |
| 511000678 | RSPA 3-802/4M | 4 m |
| 511000679 | RSPA 3-802/5M | 5 m |
| 511000680 | RSPA 3-802/6M | 6 m |
| 511000681 | RSPA 3-802/8M | 8 m |
| 511000682 | RSPA 3-802/10M | 10 m |
| 511000683 | RSPA 3-802/12M | 12 m |
| 511000684 | RSPA 3-802/14M | 14 m |
| 511000685 | RSPA 3-802/15M | 15 m |
| 511000686 | RSPA 3-802/18M | 18 m |
| 511000687 | RSPA 3-802/20M | 20 m |
| 511000688 | RSPA 3-802/22M | 22 m |
| 511000689 | RSPA 3-802/25M | 25 m |
| 511000690 | RSPA 3-802/30M | 30 m |
| 511000691 | RSPA 3-802/35M | 35 m |
| 511000692 | RSPA 3-802/40M | 40 m |
| 511000693 | RSPA 3-802/45M | 45 m |
| 511000694 | RSPA 3-802/50M | 50 m |
| 511000674 | RSPA 3-802/1.5M | 1.5 m |
| 511000676 | RSPA 3-802/2.5M | 2.5 m |
