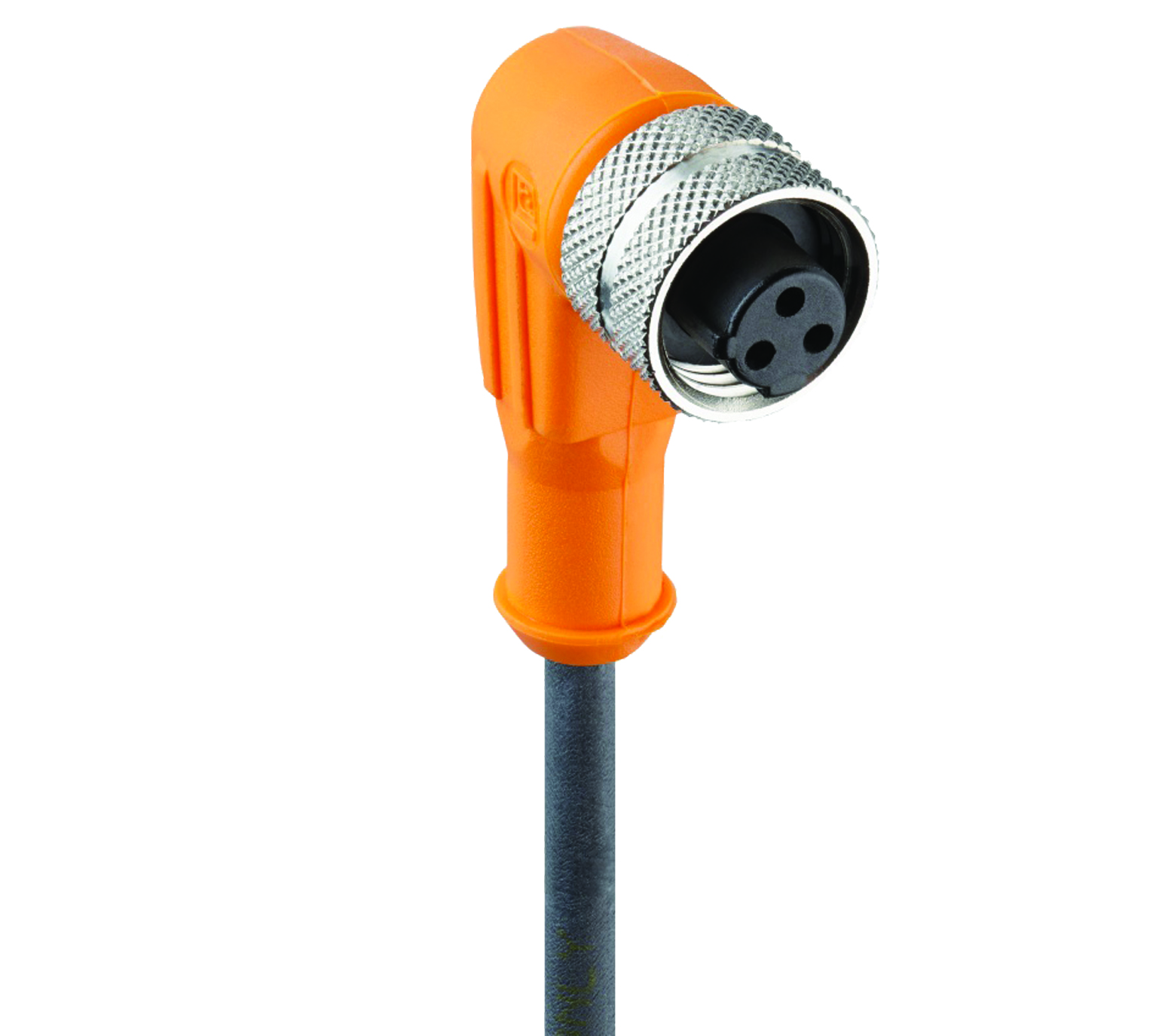

1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset: Female, angled, 3-pin, U-coded, orange body, 230 V AC/DC, 4 A; PUR black cable, 3-wires, 0.50 mm²
| Pin 1 | Pin 2 | Pin 3 |
|---|---|---|
| green-yellow | brown | blue |
|
Product Family |
Sensor / Actuator Connectors |
|---|---|
|
Product Sub Family |
1/2"-20UNF-2B |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
Female |
|
Connector Design |
Angled |
|
Number of Pins |
3 |
|
Coding |
U (1/2"-20UNF-2B) |
|
Shielding |
Unshielded |
|
Attachment Type |
Coupling Nut |
|
Rated Voltage |
250 V |
|
Rated Voltage (UL) |
250 V AC |
|
Rated Impulse Voltage |
2.5 kV |
|
Operating Voltage |
230 V AC/DC |
|
Rated Current* |
4 A |
|
Rated Current (UL)* |
4 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 40 °C - + 90 °C |
|
Operating Temperature (UL) |
max. + 50 °C |
|
Protection Degree / IP Rating** |
IP65, IP67, IP69K |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
II acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuSn |
|---|---|
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
TPU |
|
Contact Bearer Color |
Black |
|
Flammability Class (Contact Bearer) |
UL 94 HB |
|
Molded Body Material |
TPU |
|
Molded Body Color |
Orange |
|
Flammability Class (Molded Body) |
UL 94 HB |
|
Attachment Material |
CuZn |
|
Attachment Plating |
Nickel-plated |
|
Gasket Material |
FKM |
|
Fastening Torque (Attachment) |
M 12x1: (50-60) Ncm, hand-tight |
|---|
|
Cable Number |
226 |
|---|---|
|
Conductor Size |
0.5 mm² |
|
Number of Wires |
3 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 5 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Cycles (Bending) |
˃ 5 M |
|
Cycles (Torsion) |
˃ 5 M @ ± 360 °/1 m |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PUR |
|
Cable Jacket Color |
black |
|
Cable Diameter D |
ø 4.6 ± 0.20 mm |
|
Wire Insulation Material |
PP |
|
Insulated Wire Diameter |
ø 1.50 mm |
|
Ambient Temperature (Fixed Installation) |
- 50 °C - + 105 °C (UL: + 80 °C) |
|
Ambient Temperature (Flex Installation) |
- 25 °C - + 105 °C (UL: + 80 °C) |
|
Ambient Temperature (Drag Chain Inst) |
- 25 °C - + 60 °C |
|
UL Cable Type |
AWM: 20549 |
|
Flammability Class (Cable Jacket) |
DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2 |
|
Cable Characteristics |
Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility; Free of lacquer wetting disturbing substances |
|
UL-File |
E315587 |
|---|---|
|
UL |
UL 2238; cURus |
|
RoHS Compliant |
yes |
|---|
|
Halogenfree |
yes |
|---|---|
|
Oil Resistance |
Good chemical and oil resistance |
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
|
Product Characteristics |
Very good resistance to oils, coolants, lubricants as well as emulsions, Drag chain sustainability, Very good vibration and shock resistance |
| Item # | Item Description | Cable Length | Rated Current |
|---|---|---|---|
| 74744 | RKWT 3U-226/10 M | 10 m | 4 A |
| 80489 | RKWT 3U-226/2 M | 2 m | 4 A |
| 87382 | RKWT 3U-226/5 M | 5 m | 4 A |
| 11899 | RKWT 3U-226/20 M | 20 m | 4 A |
