Product Number: RSCI 4A

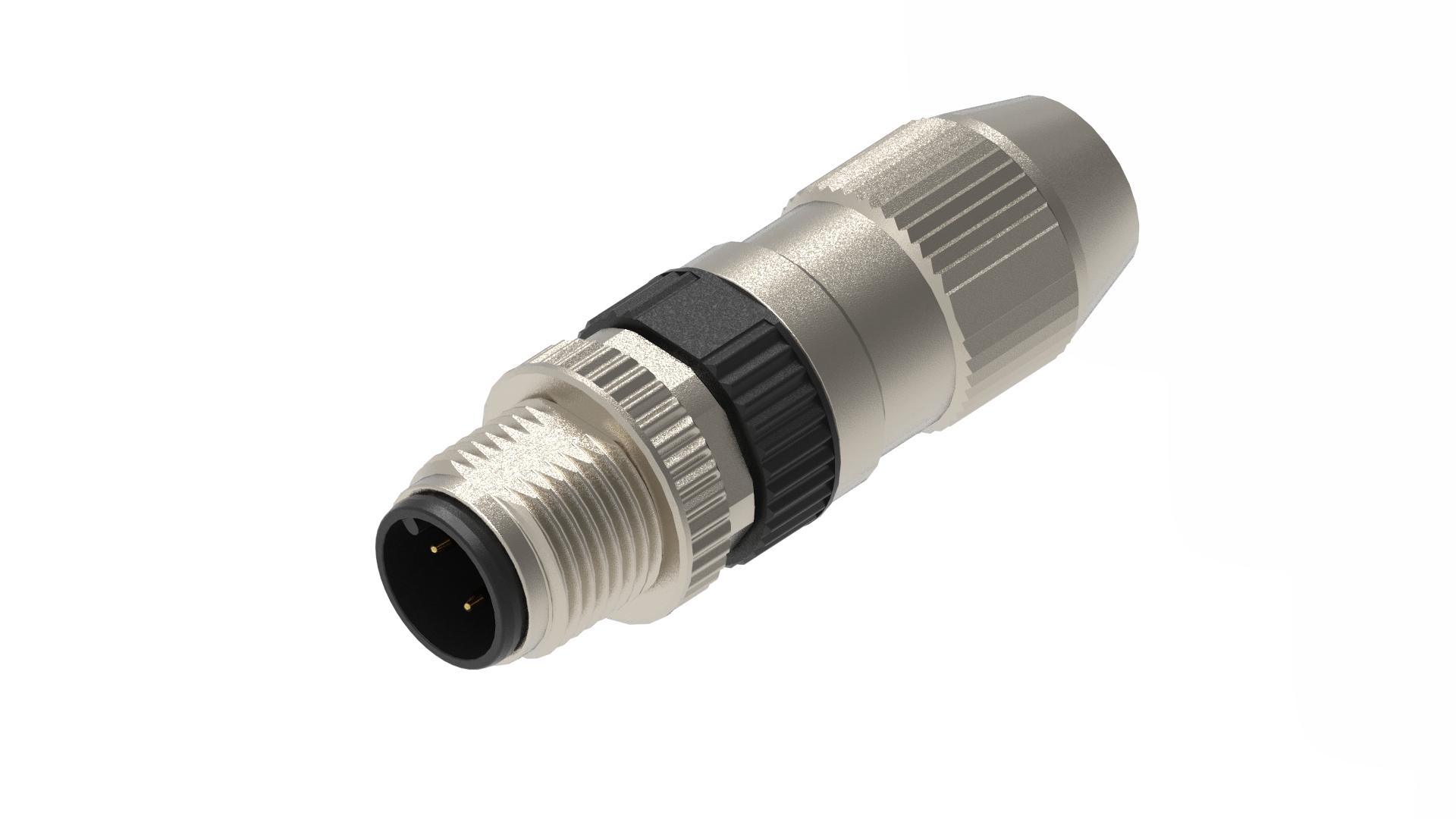

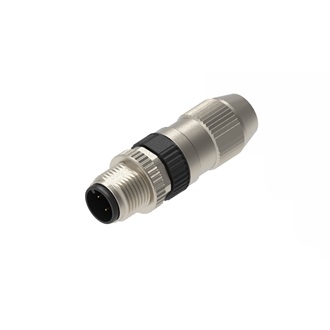

M12 Field Attachable Connector, IDC termination, slim metal housing, IP67, male, 4-pole, A-coded, unshielded, straight
M12 Field Attachable Connector for decentralized field assembly, insulation displacement contact termination method (IDC), straight, male, 4-pole, A-coded, slim design, zinc diecast metal housing for harsh environment, IP65/IP67, unshielded, 0,14…0,34mm², AWG 22AWG26, rated voltage 32V, rated current 4A
-
Availability:
Global
-
Global inventory:
Available
Specifications
Face View
|
Product Family |
Sensor / Actuator Connectors |
|---|---|
|
Product Sub Family |
M12 Standard |
|
Connector Type |
Field attachable |
|
Type of Contact / Gender |
male |
|
Connector Design |
straight |
|
Number of Pins |
4 |
|
Coding |
A |
|
Attachment Type |
Coupling Nut |
|
Rated Impulse Voltage |
1,5 kV |
|
Operating Voltage |
32 V AC/DC |
|
Rated Current* |
4 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Type of Connection |
insulation displacement contact (IDC) |
|
Maximum Wire Cross Section |
0,14mm²...0,34 mm² |
|
Strain-Relief |
clamping cage |
|
Suitable Cables |
Ø2,9...Ø5,1 mm |
|
Ambient Temperature (Operation)* |
-40°C to +85°C |
|
Operating Temperature (UL) |
max. 85 °C |
|
Protection Degree / IP Rating** |
IP65, IP67 |
|
Design Standard |
IEC 61076-2-101 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
III |
Materials
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
AuNi |
|
Contact Bearer Material |
PBT |
|
Contact Bearer Color |
black |
|
Housing Material |
zinc diecast |
|
Housing Color |
grey metallic |
|
Attachment Material |
CuZn |
|
Attachment Plating |
nickel-plated |
Circuitry
|
Fastening Torque (Attachment) |
50-60 Ncm |
|---|
Approvals
|
UL-File |
E95522 |
|---|---|
|
UL |
cURus |
Safety & Environmental Compliance
|
RoHS Compliant |
yes |
|---|
Notes
|
Note Derating |
* Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
Information
|
Note Derating |
* Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
Part Numbers
| Item # | Item Description |
|---|---|
| 935070101 | RSCI 4A |
