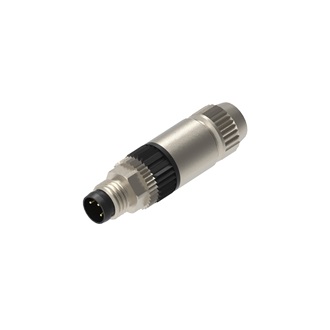

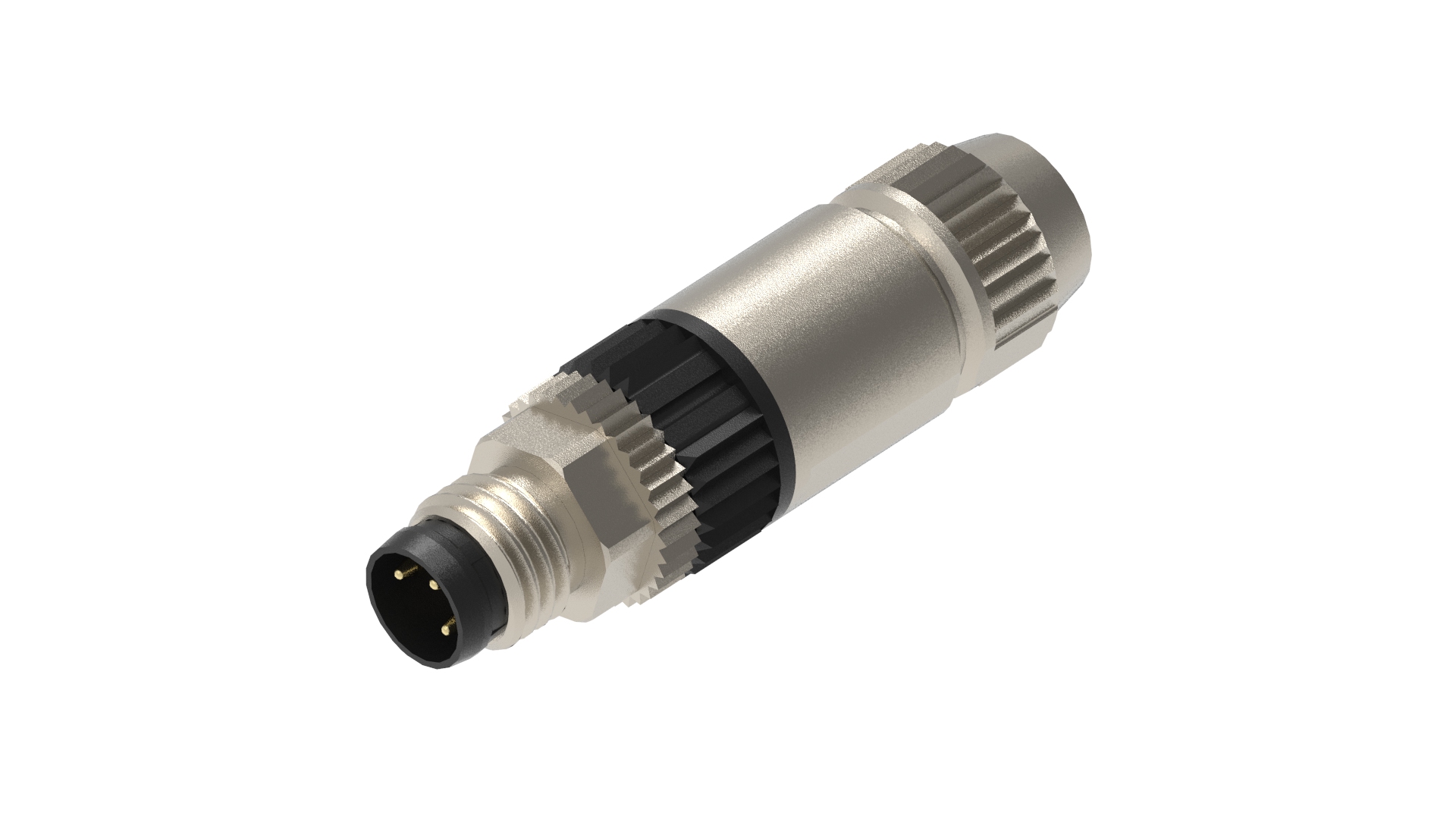

M8 Field Attachable Connector, IDC termination, slim metal housing, IP67, male, 3-pole, A-coded, unshielded, straight
|
Product Family |
Sensor / Actuator Connectors |
|---|---|
|
Product Sub Family |
M8 Standard |
|
Connector Type |
Field attachable |
|
Type of Contact / Gender |
male |
|
Connector Design |
straight |
|
Number of Pins |
3 |
|
Coding |
A |
|
Attachment Type |
Coupling Nut |
|
Rated Impulse Voltage |
1,5 kV |
|
Operating Voltage |
32 V AC/DC |
|
Rated Current* |
4 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Type of Connection |
insulation displacement contact (IDC) |
|
Maximum Wire Cross Section |
0,14mm²...0,34 mm² |
|
Strain-Relief |
clamping cage |
|
Suitable Cables |
Ø2,5...Ø5,1 mm |
|
Ambient Temperature (Operation)* |
-40°C to +85°C |
|
Operating Temperature (UL) |
max. 85 °C |
|
Protection Degree / IP Rating** |
IP65, IP67 |
|
Design Standard |
IEC 61076-2-104 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
III |
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
AuNi |
|
Contact Bearer Material |
PBT |
|
Contact Bearer Color |
black |
|
Housing Material |
zinc diecast |
|
Housing Color |
grey metallic |
|
Attachment Material |
CuZn |
|
Attachment Plating |
nickel-plated |
|
Fastening Torque (Attachment) |
50-60 Ncm |
|---|
|
UL-File |
E95522 |
|---|---|
|
UL |
cURus |
|
RoHS Compliant |
yes |
|---|
|
Note Derating |
* Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Item # | Item Description |
|---|---|
| 935070001 | RSMCI 3A |
