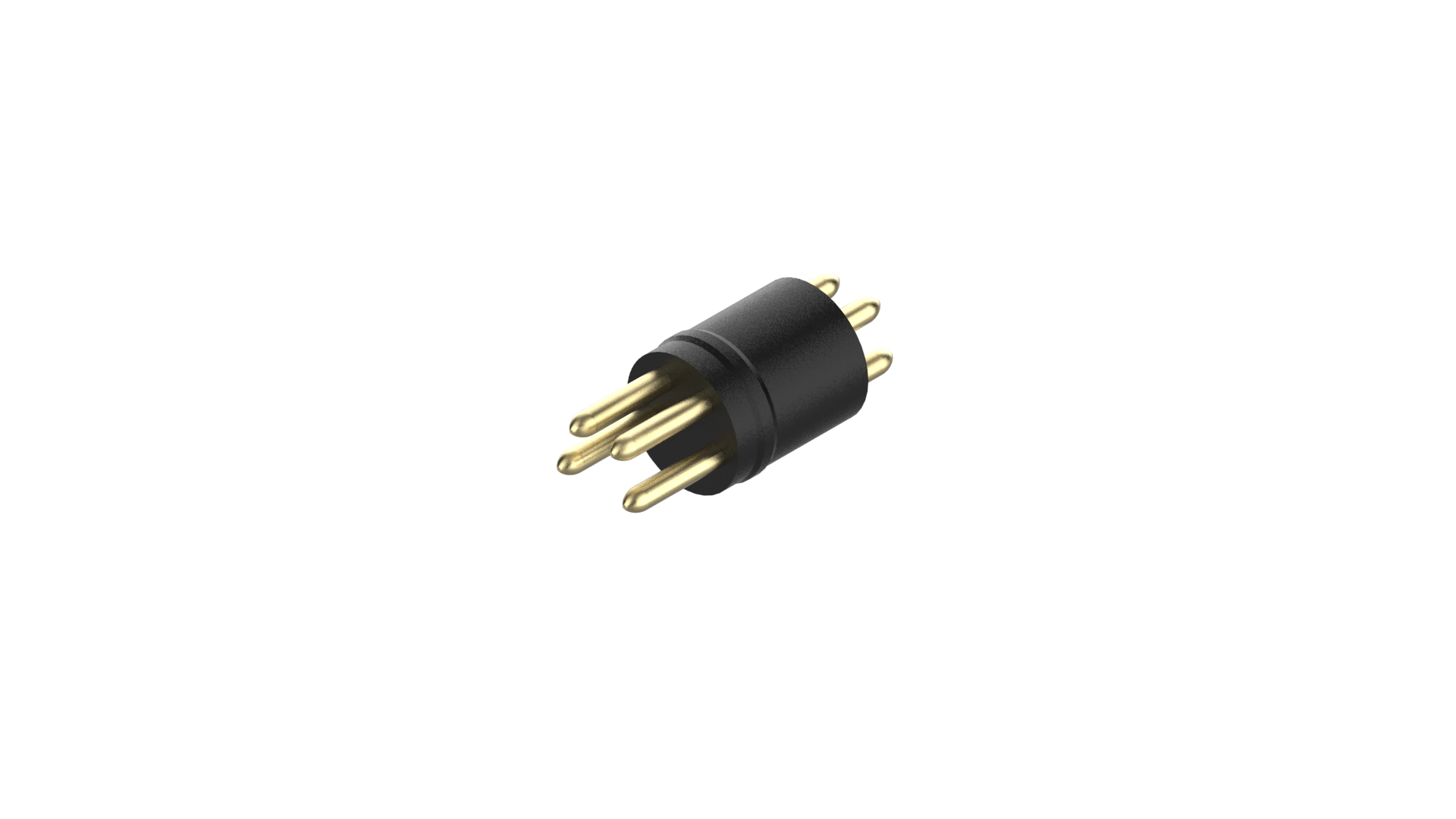

M8 Insert Sensor/Actuator Receptacle Connector: Male, insert, M8 - mating side, print contacts - connecting side, 4-pin, A-coded, unshielded, black body, 30 V AC/DC, 4 A
|
Product Family |
Sensor / Actuator Connectors |
|---|---|
|
Product Sub Family |
M8 Insert |
|
Mating Side |
M8 |
|
Connecting Side |
Print Contacts |
|
Connector Type |
Receptacle |
|
Type of Contact / Gender |
Male |
|
Connector Design |
Insert |
|
Number of Pins |
4 |
|
Coding |
A |
|
Shielding |
Unshielded |
|
Rated Voltage |
30 V |
|
Rated Impulse Voltage |
0.8 kV |
|
Operating Voltage |
30 V AC/DC |
|
Rated Current* |
4 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Type of Connection |
PCB |
|
Ambient Temperature (Operation)* |
- 25 °C - + 85 °C |
|
Design Standard |
IEC 61076-2-104 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
PA |
|
Contact Bearer Color |
Black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Potted |
No |
|
RoHS Compliant |
yes |
|---|
|
Note Derating |
* Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
* only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures. |
| Item # | Item Description |
|---|---|
| 11669 | RSMEK 4 |
