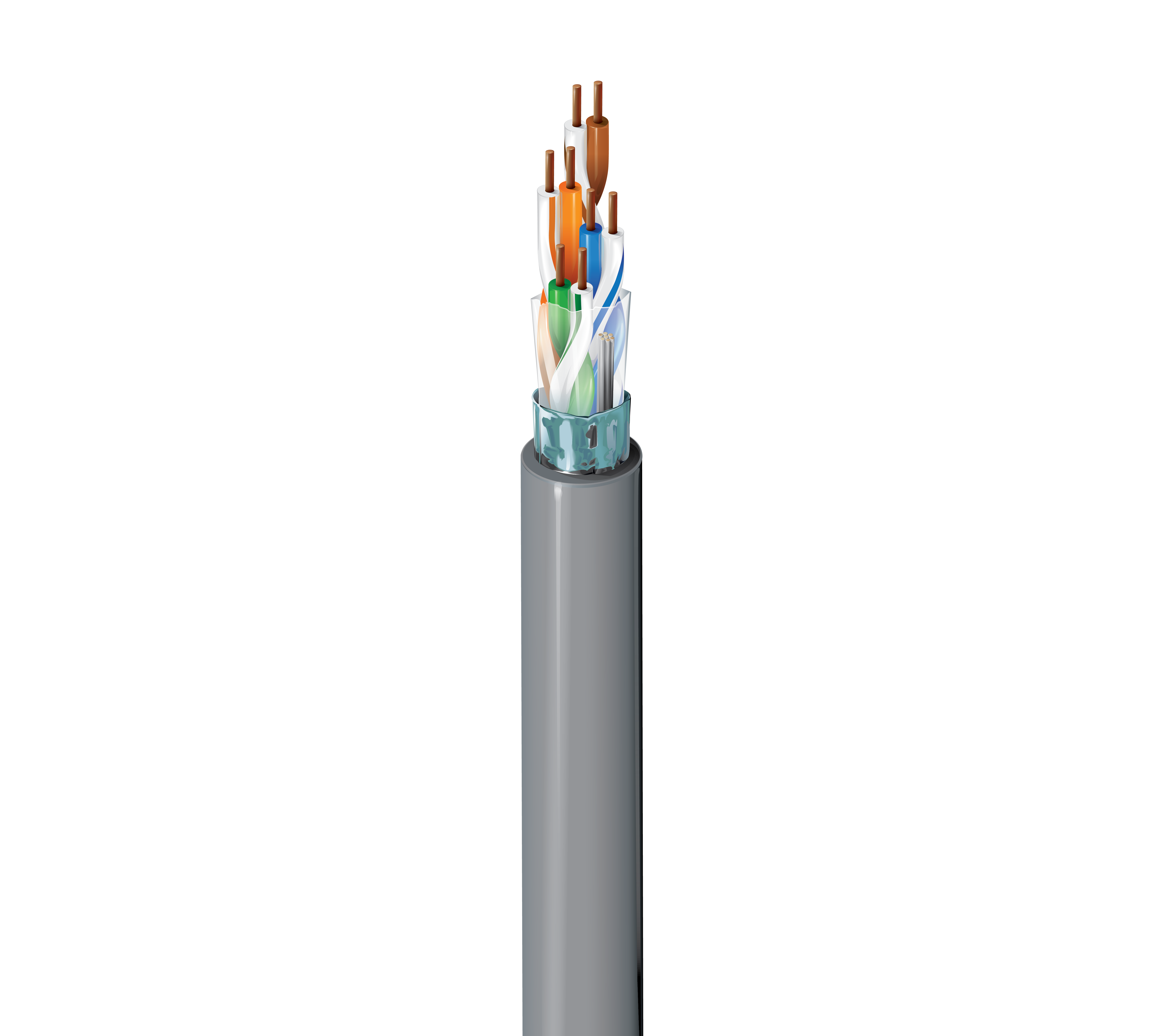

Category 5 Cable, 4 Pair, F/UTP, CMP
|
Suitable Applications |
Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE , Noisy Environments |
|---|
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 AWG | Solid | BC - Bare Copper | 4 |
| Material | Color Code |
|---|---|
| FEP - Fluorinated Ethylene Propylene | White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Polyester + Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Material | Material Trade Name | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.235 in (5.97 mm) | No |
|
Overall Cable Diameter (Nominal) |
0.235 in (5.97 mm) |
|---|
| Max. Conductor DCR |
|---|
| 93.8 Ohm/km (28.6 Ohm/1000ft) |
| Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|
| 538 ns/100m | 45 ns/100m | 67% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. SRL (Structural Return Loss) [dB] | Max./Min. Fitted Impedance [Ohm] |
|---|---|---|---|---|---|
| 1 | 2.0 dB/100m | 62.2 | 62.3 | 23 | 100 ± 15 |
| 4 | 4.1 dB/100m | 53.3 | 53.3 | 23 | 100 ± 15 |
| 8 | 5.8 dB/100m | 48.8 | 48.8 | 23 | 100 ± 15 |
| 10 | 6.5 dB/100m | 47.3 | 47.3 | 23 | 100 ± 15 |
| 16 | 8.2 dB/100m | 44.3 | 44.3 | 23 | 100 ± 15 |
| 20 | 9.3 dB/100m | 42.8 | 42.8 | 23 | 100 ± 15 |
| 25 | 10.4 dB/100m | 41.3 | 41.3 | 22 | 100 ± 15 |
| 31.25 | 11.7 dB/100m | 39.9 | 39.9 | 21.1 | 100 ± 15 |
| 62.5 | 17.0 dB/100m | 35.4 | 35.4 | 18 | 100 ± 15 |
| 100 | 22.0 dB/100m | 32.2 | 32.3 | 16 | 100 ± 15 |
| UL Voltage Rating |
|---|
| 300 V (CMP) |
| Operating |
|---|
| -20°C To +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 1 in (25 mm) | 2.35 in (59.7 mm) |
|
Max. Pull Tension |
25 lbs (11 kg) |
|---|---|
|
Bulk Cable Weight |
32 lbs/1000ft |
|
Environmental Suitability |
Plenum, Indoor |
|---|---|
|
Flammability / Reaction to Fire |
NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 800, CMP |
|
CEC / C(UL) Compliance |
CMP |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3 |
|
Data Category |
Category 5 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
1624R |
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. RJ-45 Compatible. Jacket sequentially marked at 2 ft. intervals. Third party verified to TIA/EIA-568-B.2, Category 5. |
|---|
|
Update and Revision |
Revision Number: 0.350 Revision Date: 05-31-2024 |
|---|
