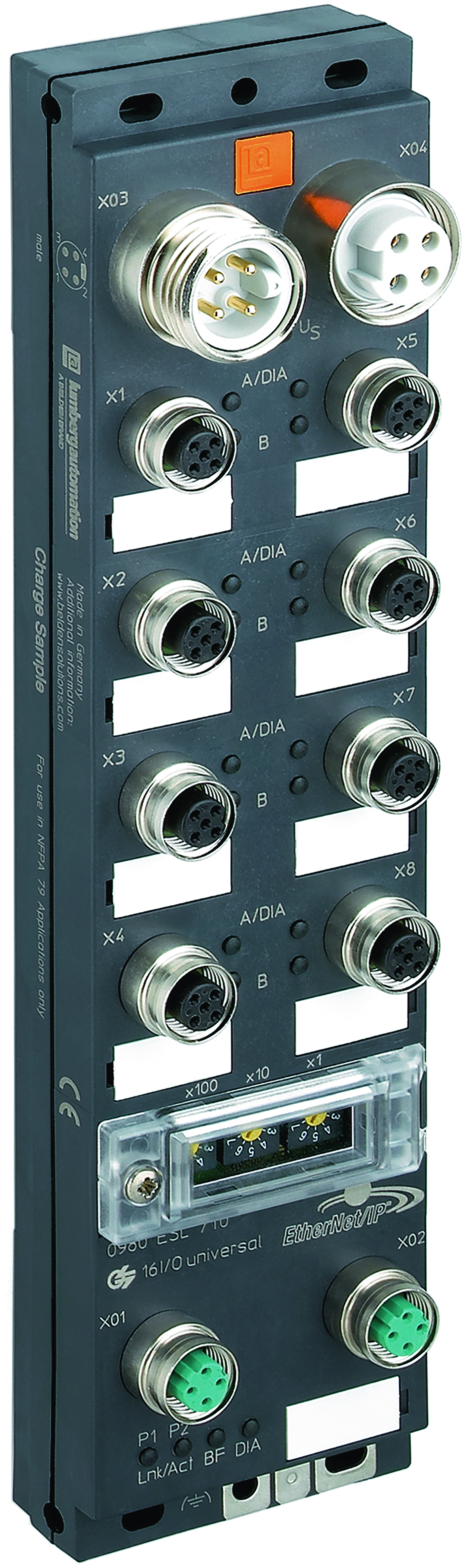

LioN-M, EtherNet/IP I/O Device, 16DIO (8x M12), 7/8" Power Supply, Plastic, 60 mm
|
Product Family |
I/O Systems: Active - Standalone |
|---|---|
|
Product Sub Family |
LioN-M |
|
Item Description |
0980 ESL 710 |
|
Device Type |
I/O Module |
|
Protocol |
EtherNet/IP |
|
I/O Function |
16DIO |
|
Bus Connection |
M12, 4-poles, D-coded |
|
Power Connection (System Supply) |
7/8" Power, 4-poles |
|
I/O Connection |
M12, 5-poles, A-coded |
|
I/O Type |
Digital In-/Output (Universal) |
|
Housing Material |
PBT + ASA |
|---|---|
|
Housing Color |
Black |
|
Protection Degree / IP Rating** |
IP67 |
|
Potted |
No |
|
Dimensions (W x H x D) |
60 mm x 40 mm x 243 mm |
|
Weight |
390 g |
|
Ambient Temperature (Operation)* |
-10 °C to 60 °C |
|
Vibration Resistance |
10 g / 5 -500 Hz |
|
Shock Resistance |
50 g / 11ms |
|
Contact Base Material |
M12, D-coded, CuSn, Gold-plated | 7/8" CuZn, Gold-plated |
|
Contact Bearer Material |
PA / TPU |
|
O-Ring Material |
FKM |
|
Mounting |
2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts. |
|
Fastening Torque (Fixing Screw) |
M4: 1 Nm |
|
Fastening Torque (Ground Connection (FE)) |
M4: 1 Nm |
|
Fastening Torque (Bus Connection) |
M12: 0.5 Nm |
|
Fastening Torque (Power Connection) |
7/8": 1.5 Nm |
|
Fastening Torque (I/O Connection) |
M12: 0.5 Nm |
|
Included in Delivery |
Attachable Labels: 15x, Sealing Caps: 4x M12 |
|
Protocol (EtherNet/IP) |
EtherNet/IP |
|---|---|
|
Connection |
M12 LAN, 4-poles, D-coded |
|
Number of Connections |
2 |
|
Specification |
CIP Edition 3.9 / EIP Adaption of CIP 1.1x |
|
Transmission Rate |
Fast Ethernet (10/100 Mbit/s), Full Duplex |
|
Transmission Method |
100 BASE-TX, with auto negotiation and auto crossing |
|
Cycle Time / Requested Packet Interval (RPI) |
min. 1 ms |
|
Addressing |
BootP, DHCP, Rotary Address Switches |
|
Address Switches Range |
0 to 255 dec |
|
Connection Types |
Exclusive Owner, Input Only, Listen Only |
|
Quick Connect (QC) |
Not supported |
|
Device Level Ring (DLR) |
Supported, beacon based |
|
Supported Network Protocols (Other) |
ACD, ARP, BootP, DHCP, HTTP, IGMP, Ping, TCP/IP |
|
Connection Module Supply Voltage |
7/8" Power, 4-poles |
|---|---|
|
Number of Connections |
2 |
|
Current Carrying Capacity of Connector |
max. 9 A |
|
Module Supply Voltage (Nominal) |
24 V DC (SELV/PELV) |
|
Module Supply Voltage (Range) |
19 V DC to 30 V DC |
|
Current Consumption (typ.) |
100 mA (at 24 V DC) |
|
Reverse Polarity Protection |
Yes |
|
Status Indicator (System Supply) |
LED green |
|
Diagnostic Indicator |
No |
|
Connection Sensor Supply Voltage |
via Module Supply Connection |
|
Current Carrying Capacity of Connector |
max. 9 A |
|
Sensor Supply Voltage (Nominal) |
24 V DC (SELV/PELV) |
|
Sensor Supply Voltage (Range) |
19 V DC to 30 V DC |
|
Reverse Polarity Protection |
Yes |
|
Status Indicator (Sensor Supply) |
LED green |
|
Diagnostic Indicator |
No |
|
Connection Actuator Supply Voltage |
via Module Supply Connection |
|
Current Carrying Capacity of Connector |
max. 9 A |
|
Actuator Supply Voltage (Nominal) |
24 V DC (SELV/PELV) |
|
Actuator Supply Voltage (Range) |
19 V DC to 30 V DC |
|
Reverse Polarity Protection |
Yes |
|
Status Indicator (Actuator Supply) |
LED green |
|
Diagnostic Indicator |
No |
|
Number of Digital Input Channels |
max. 16, universal |
|---|---|
|
Connection |
M12, 5-poles, A-coded |
|
Number of Ports |
8x, X1 to X8 |
|
Channel Type |
Type 3 acc. to IEC 61131-2 |
|
Sensor Current Supply |
max. 200 mA per port (at 30°C) |
|
Input Wiring |
2-, 3-, 4-wire |
|
Nominal Voltage |
24 V DC via US (module power supply) |
|
Nominal Current |
typ. 5 mA |
|
Sensor Type |
PNP |
|
Input Voltage Range "0" signal |
-3 V DC …+5 V DC |
|
Input Voltage Range "1" signal |
11 V DC … 30 V DC |
|
Input Filter Time |
3 ms, fixed |
|
Protective Circuit |
Electronicaly: Overload protection, short-circuit protection |
|
Status Indicator (Inputs) |
LED yellow per channel |
|
Diagnostic Indicator |
LED red per port |
|
Number of Digital Output Channels |
max. 16, universal |
|---|---|
|
Connection |
M12, 5-poles, A-coded |
|
Number of Ports |
8x, X1 to X8 |
|
Output Current per Channel |
max. 1.6 A |
|
Channel Type |
p-switching |
|
Output Wiring |
2-, 3-wire |
|
Nominal Voltage |
24 V DC via UL (actuator power supply) |
|
Output Current per Module |
max. 9 A |
|
Galvanically Isolated |
No |
|
Protective Circuit |
Electronicaly: Overload protection, short-circuit protection |
|
Overload Behavior |
Auto off and on switching |
|
Status Indicator (Outputs) |
LED yellow per channel |
|
Diagnostic Idicator |
LED red per channel |
|
US (System Supply Voltage) / FE |
500 V DC |
|---|---|
|
US / UL (Actuator Supply Voltage) |
500 V DC |
|
UL / FE |
500 V DC |
|
Bus connection / FE |
2000 V DC |
|
EMC Directive |
2014/30/EU |
|---|---|
|
EN 61000-4-2 Electrostatic Discharge (ESD) |
Criterion B; 4 kV contact discharge, 8 kV air discharge |
|
EN 61000-4-3 Electromagnetic Field |
Criterion A; Field intensity: 10 V/m |
|
EN 61000-4-4 Fast Transients (Burst) |
Criterion B, 2 kV |
|
EN 61000-4-5 Surge Voltage |
Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m |
|
EN 61000-4-6 Conducted immunity |
Criterion A; Test voltage 10 V |
|
EN 55022 Radio Interference Properties |
Class A |
|
CE |
Yes |
|---|---|
|
RoHS Compliant |
Yes |
|
UL |
cULus Listed, UL 508 |
|---|---|
|
UL-File |
E230848 |
|
ODVA |
Yes |
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
System Power Supply Connection Note |
*do not connect / disconnect under voltage! |
|
Update and Revision |
Revision Number: 0.65 Revision Date: 05-24-2023 |
