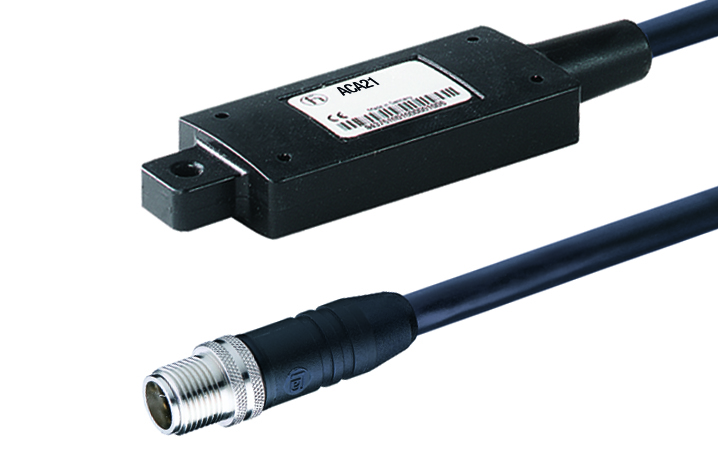

ACA21-M12 (EEC)

Auto-configuration adapter 64 MB, M12 (USB 1.1) , EEC

...
Auto-configuration adapter, with M12 connection and extended temperature range, saves two different versions of configuration data and operating software from the connected switch. It enables managed switched to be easily comissioned and quickly replaced.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product description

Type

ACA21-M12 EEC

Description

Auto-configuration adapter 64 MB, with M12 (USB 1.1) connection and extended temperature range, saves two different versions of configuration data and operating software from the connected switch. It enables managed switches to be easily commissioned and quickly replaced.

Cable Length

50 cm

More Interfaces

USB interface on the switch

M12 connection

Power requirements

Operating Voltage

via the USB interface on the switch

Software

Diagnostics

writing to ACA, reading from ACA, writing/reading not OK (display using LEDs on the switch)

Configuration

via USB interface of the switch and via SNMP/Web
Ambient conditions

MTBF

359 years (MIL-HDBK-217F)

Operating temperature

-40-+70 °C

Storage/transport temperature

-40-+85 °C

Relative humidity (non-condensing)

10-95 %

Dimensions (WxHxD)

93 mm x 29 mm x 15 mm

Weight

70 g

Mounting

plug-in module

Protection class

IP67

Mechanical stability

IEC 60068-2-6 vibration

1 g, 8,4 Hz - 200 Hz, 30 cycles

IEC 60068-2-27 shock

15 g, 11 ms duration, 18 shocks

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)

6 kV contact discharge, 8 kV air discharge

EN 61000-4-3 electromagnetic field

10 V/m

EMC emitted immunity

EN 55022

EN 55022

Approvals

Safety of industrial control equipment

cUL 508

Safety of information technology equipment

cUL 508

Hazardous locations

ISA 12.12.01 Class 1 Div. 2 ATEX Zone 2

Shipbuilding

DNV

Transportation

EN50121-4
Reliability

Guarantee

24 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery

device, operating manual

Further Instructions

Product Documentation

https://www.doc.hirschmann.com

Certificates

https://www.doc.hirschmann.com/certificates.html

History

Update and Revision

Revision Number: 0.117 Revision Date: 04-17-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Type Cable Length
943913003 ACA21-M12 (EEC) 50 cm
