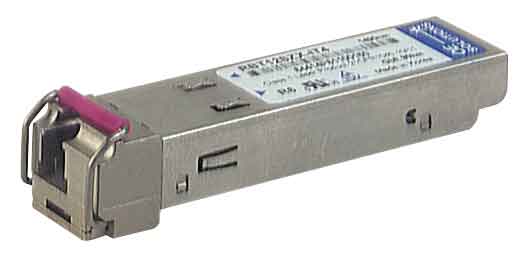

M-SFP-BIDI-Bundle LX/LC EEC

SFP Fiberoptic bi-directional Gigabit Ethernet Transceiver SM, bundle = 1 x type A and 1 x type B, extended temperature range

SFP Fiberoptic bi-directional Gigabit Ethernet Transceiver SM with LC connector, bundle = 1 x type A and 1 x type B, extended temperature range

Request Quote

Get Product Alerts

Specifications

Report An Error

Type	M-SFP-BIDI-Bundle LX/LC EEC
Description	SFP Fiberoptic bi-directional Gigabit Ethernet Transceiver SM, bundle = 1 x type A and 1 x type B, extended temperature range
Port type and quantity	1 x 1000 Mbit/s with LC connector

Single mode fiber (SM) 9/125 µm	0 - 20 km Type A: (Wave Length = TX: 1310 nm, RX: 1550 nm; Link Budget = 0 - 11 dB; A = 0.4 dB/km; D = 3.5 ps/(nmkm)) Type B: (Wave Length = TX: 1550 nm, RX: 1310 nm; Link Budget = 0 - 11 dB; A = 0.25 dB/km; D = 19 ps/(nmkm))

Operating Voltage	power supply via the switch
Power consumption	1 W

Diagnostics	Optical input and output power, transceiver temperature

Operating temperature	-40-+85 °C
MTBF (Telecordia SR-332 Issue 3) @ 25°C	1142 Years
Storage/transport temperature	-40-+85 °C
Relative humidity (non-condensing)	5-95 %
Dimensions (WxHxD)	13.4 mm x 8.5 mm x 56.5 mm
Weight	70 g
Mounting	SFP slot
Protection class	IP20

IEC 60068-2-6 vibration	1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock	15 g, 11 ms duration, 18 shocks

EN 61000-4-2 electrostatic discharge (ESD)	6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field	10 V/m (80-1000 MHz)
EN 61000-4-4 fast transients (burst)	2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage	power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity	3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)

EN 55022	EN 55022 Class A
FCC CFR47 Part 15	FCC 47CFR Part 15, Class A

Safety of information technology equipment	EN60950
Hazardous locations	depending on deployed switch
Shipbuilding	depending on deployed switch

Guarantee	24 months (please refer to the terms of guarantee for detailed information)

Scope of delivery	SFP module

Product Documentation	https://www.doc.hirschmann.com
Certificates	https://www.doc.hirschmann.com/certificates.html

Update and Revision	Revision Number: 0.101 Revision Date: 04-17-2024

Part Numbers

Item #	Type
943974101	M-SFP-BIDI-Bundle LX/LC EEC
