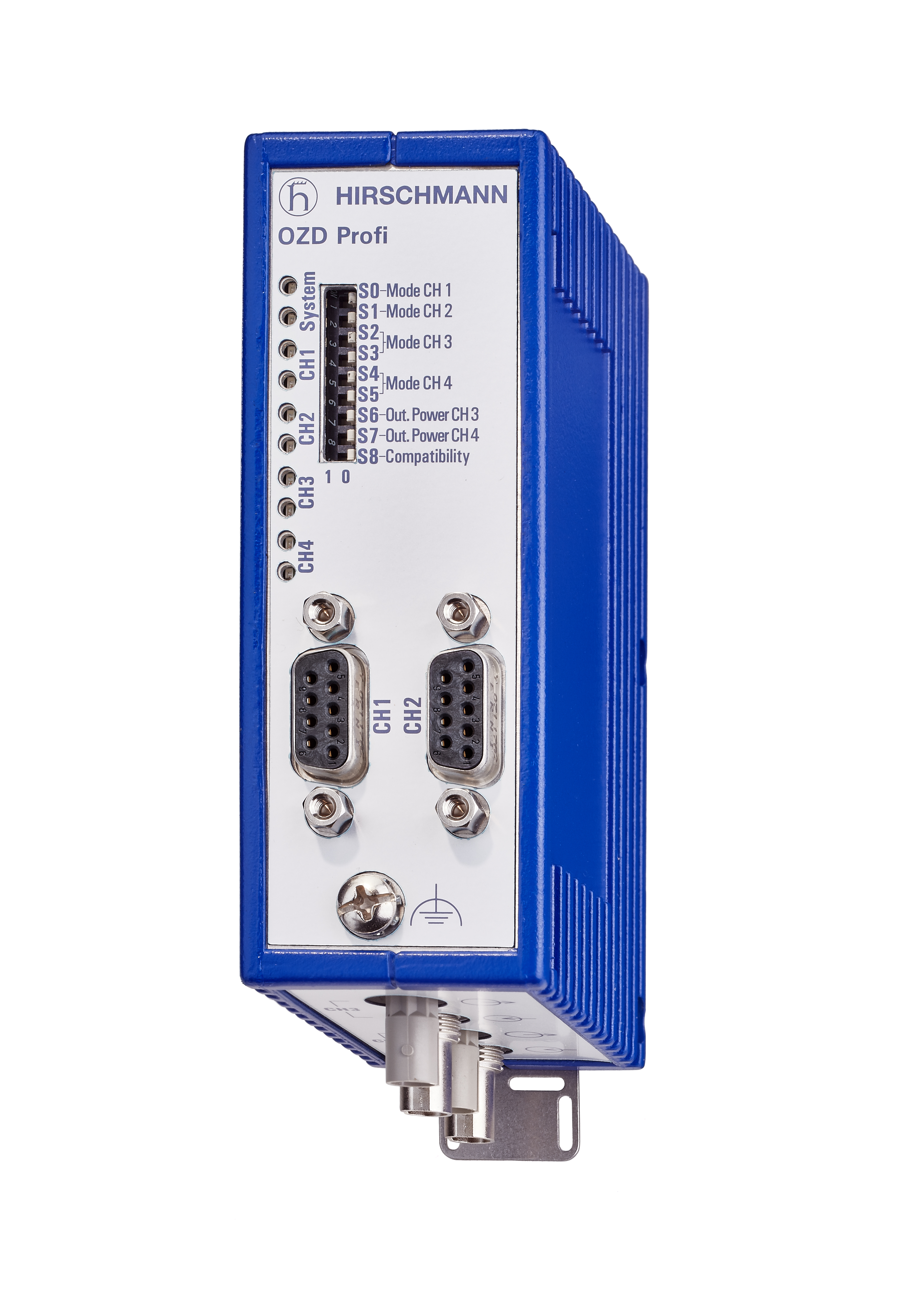

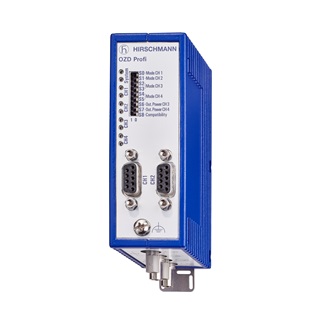

OZD Profi 12M P22

New generation: interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for plastic FO; short-haul version; approval for Ex-zone 2 (Class 1, Div. 2)

...
New generation: interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for plastic FO; short-haul version; approval for Ex-zone 2 (Class 1, Div. 2)
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product description

Type

OZD Profi 12M P22

Name

OZD Profi 12M P22

Port type and quantity

2 x optical: 4 sockets BFOC 2.5 (STR) 2 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1

Signal Type

PROFIBUS (DP-V0, DP-V1, DP-V2 und FMS)

More Interfaces

Measuring outputs "Optical input power"

8-pin terminal block, screw mounting

Power Supply

8-pin terminal block, screw mounting

Signaling contact

8-pin terminal block, screw mounting

Network size - length of cable

Single mode fiber (SM) 9/125 µm

-

Multimode fiber (MM) 50/125 µm

-

Multimode fiber (MM) 62.5/125 µm

-

Multimode fiber HCS (MM) 200/230 µm

400 m; 8 dB link budget at 660 nm and transmitting power default; A = 8 dB/km, 2 dB reserve

Multimode fiber POF (MM) 980/1000 µm

50 m; 15 dB link budget at 660 nm and transmitting power reduced; 80 m; 20 dB link budget at 660 nm and transmitting power default; A= 0.2 dB/m, 2 dB reserve

Power requirements

Current consumption

max. 190 mA

Input voltage range

-7 V ... +12 V

Operating Voltage

18 ... 32 VDC, typ. 24 VDC

Power consumption

4.5 W

Redundancy functions

HIPER-Ring (ring structure), redundant 24 V infeed
Power Output

Output voltage/output current (pin6)

5 VDC +5%, -10%, short circuit-proof/10 mA

Ambient conditions

MTBF (Telecordia SR-332 Issue 3) @ 25°C

2 502 670 h

Operating temperature

0-+60 °C

Storage/transport temperature

-40-+70 °C

Relative humidity (non-condensing)

10-95 %

Dimensions (WxHxD)

39.5 x 137.5 x 84 mm

Weight

560 g

Housing Material

die-cast zink

Mounting

DIN rail or mounting plate

Protection class

IP40

Approvals

Basis Standard

EU Conformity, FCC Conformity, AUS Conformity Australia

Safety of industrial control equipment

cUL61010-2-201

Hazardous locations

ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2
Reliability

Guarantee

60 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery

device, 4 optical BFOC ST plugs, start-up instructions
