Product Number: REVConnect Wall-Mount Mod. 16P

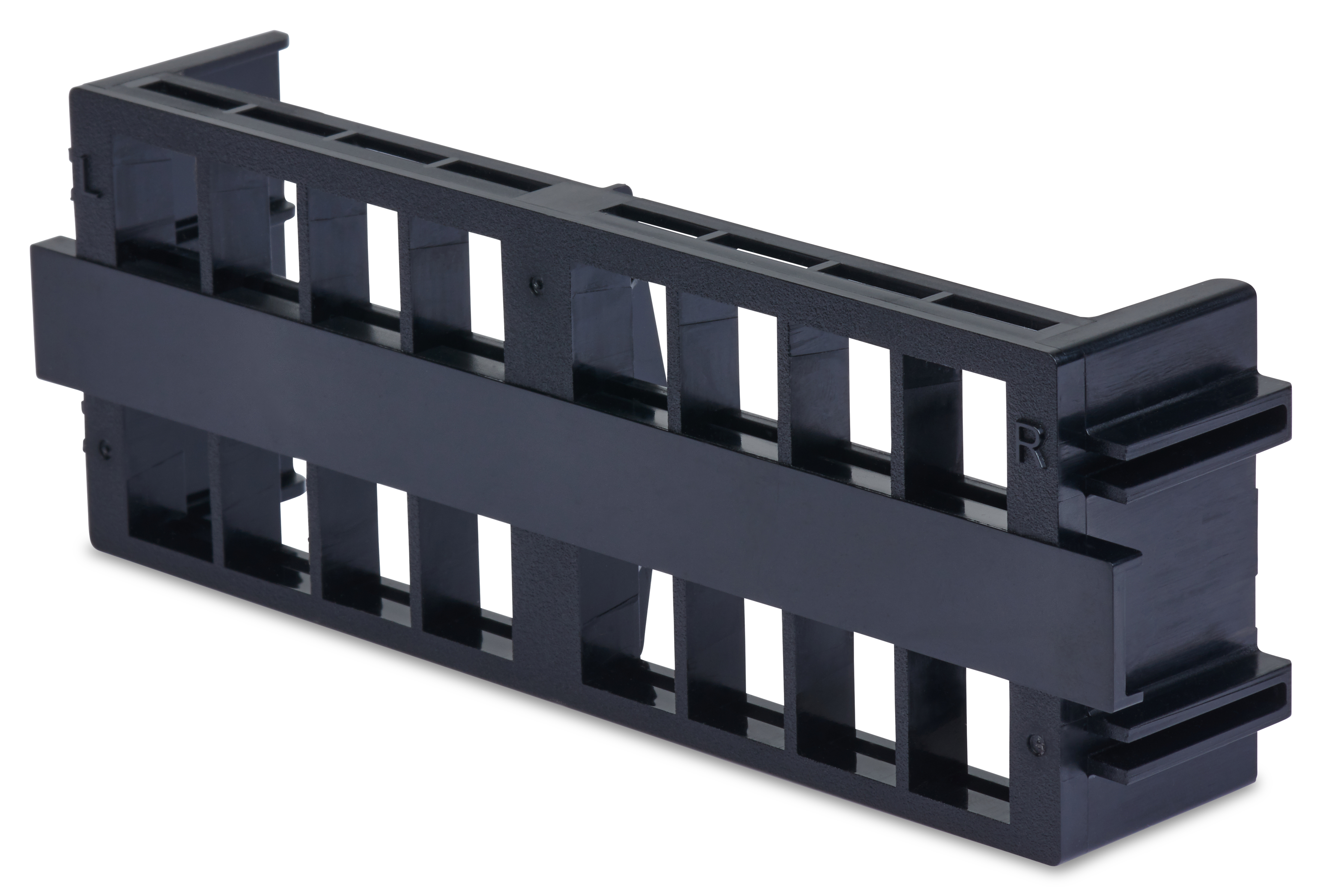

RVUXCCM16E-REVConnect Wall-Mount Connector Module, 16-Port (Empty)
The REVConnect Wall-Mount Connector Module for 16-Ports comes with unloaded ports
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
10GX System |
|---|
Physical Characteristics (Overall)
|
Height |
2.275 in |
|---|---|
|
Width |
6.791 in |
|
Depth |
1.276 in |
|
Front Connection |
Flush |
|
Packaging |
Individually packaged in a plastic bag. |
|
Weight |
.1 lbs |
Connectors
Materials
| Description | Material | Color |
|---|---|---|
| Frame | Lexan | Black |
Construction and Dimensions
|
Max Capacity |
16 Ports |
|---|
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
Standards
|
UL Rating |
UL1863 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
c(UL)us Listed |
|---|
Related Part Numbers
|
Related Parts |
REVConnect wall termination kit, REVConnect wall connector mount, REVConnect wall cable dressing module, REVConnect cable management channel, REVConnect wall horizontal channel kit |
|---|
History
|
Update and Revision |
Revision Number: 0.165 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.165 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| RVUXCCM16E | Black | 611589238410 |
