Product Number: FCSD06SAFP

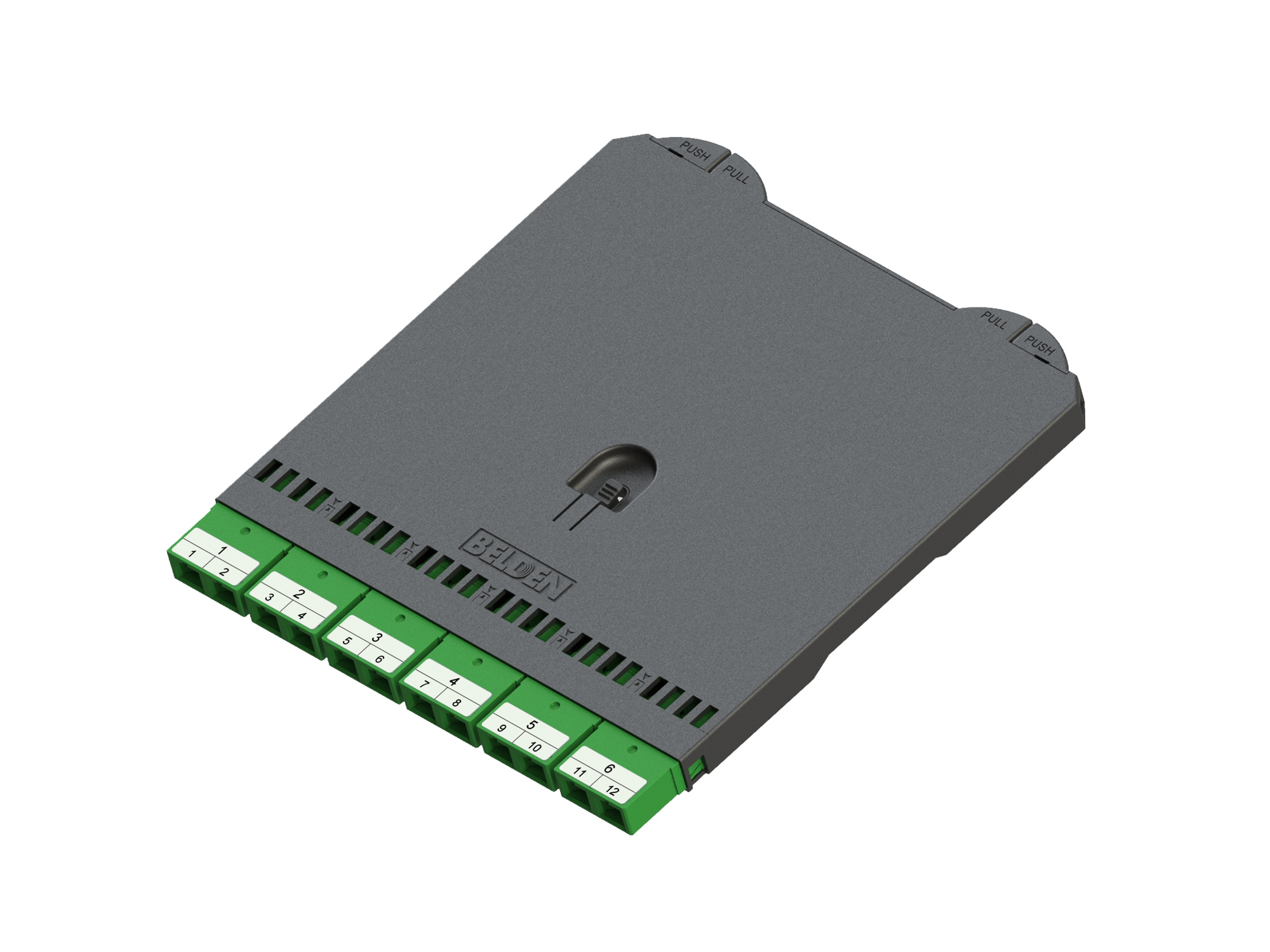

FX DCX Splice Cassette, OS2, 06 Ports SC/APC Duplex with 250µm Pigtails
FX DCX Splice Cassette, OS2, 06 Ports SC/APC Duplex with 250µm Pigtails, Green Adapters
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
DCX, Data Centers, Central Equipment Room |
|---|
Construction
Fiber Cable Construction
| Fiber Type |
|---|
| OS2 |
|
Weight |
0.460 lbs |
|---|---|
|
Height |
0.500 in |
|
Width |
6.830 in |
|
Length |
7.430 in |
Physical Specifications
|
Max Capacity |
12 Fibers |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
|
Front Connection |
Static |
|---|
Temperature Range
|
Operating Temperature Range |
-10°C to +60°C |
|---|---|
|
Storage Temperature Range |
-10°C to +75°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Cassette Assembly | Plastic - UL94V-0 | Black | |
| Front Connector Body | Plastic - UL94V-0 | Green | SC/APC Duplex |
| Adapter Sleeve | Zirconia-Ceramic |
Fiber Connector Performance
| Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|
| SC/APC Duplex | 0.25 dB | -65 dB |
Standards
|
MII Order #39 (China RoHS) |
EUP 50 |
|---|
Related Part Numbers
|
Included Parts |
250μm color coded pigtails, splice chip, splice protection sleeve, micro splice protection sleeve, cable retention rubber: 2mm & 3mm |
|---|---|
|
Related Parts |
DCX,Frames Modules & Patch Panels |
Product Notes
|
Packaging |
Individually packaged in a plastic shell, Shipped in cardboard box |
|---|
History
|
Update and Revision |
Revision Number: 0.190 Revision Date: 08-12-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.190 Revision Date: 08-12-2024 |
|---|
Part Numbers
| Item # | Connector Type |
|---|---|
| FCSD06SAFP | SC Duplex |
