Product Number: ECX-06WM

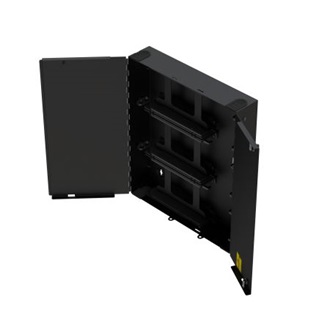

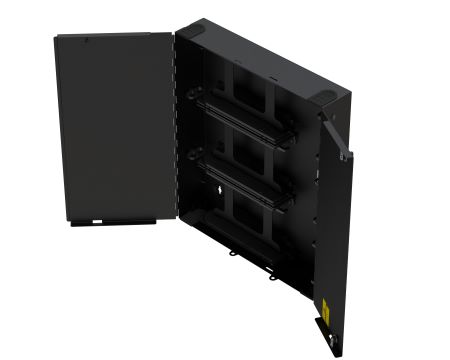

FX ECX Wall-Mount Patch Panel, 6-Module
FX ECX Wall-Mount Patch Panel, 6-Module, Black, Empty
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room |
|---|
Construction
|
Weight |
22.40 lbs |
|---|---|
|
Height |
23.900 in |
|
Width |
20.700 in |
|
Depth |
4.400 in |
Physical Specifications
|
Max Capacity |
6 Cassettes/Frames: 192 Fibers (LC); 96 Fibers (SC) |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Product Material
Materials
| Description | Material | Color |
|---|---|---|
| Wall Mount Module | Steel | Black |
| Cassette Rail Assembly | PC/ABS | Black |
| Grommet | Elastomer | Black |
| Management clip | Polycarbonate | Black |
Standards
|
MII Order #39 (China RoHS) |
EUP 50 |
|---|
Related Part Numbers
|
Included Parts |
ECX-WALLMOUNT-06; Bonding Wire Kit; (4) Wood Screws, (12) Velcro Straps; Identification Label, Installation Guide |
|---|---|
|
Related Parts |
FiberExpress ECX Cassettes & Frames, Fiber Patch Cords, Distribution Fiber Cable |
Product Notes
|
Notes |
For more information, please refer to our web site at http://www.belden.com. Installation Guide: TBD |
|---|
History
|
Update and Revision |
Revision Number: 0.14 Revision Date: 02-12-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.14 Revision Date: 02-12-2025 |
|---|
Part Numbers
| Item # | Color |
|---|---|
| ECX-06WM | Black |
