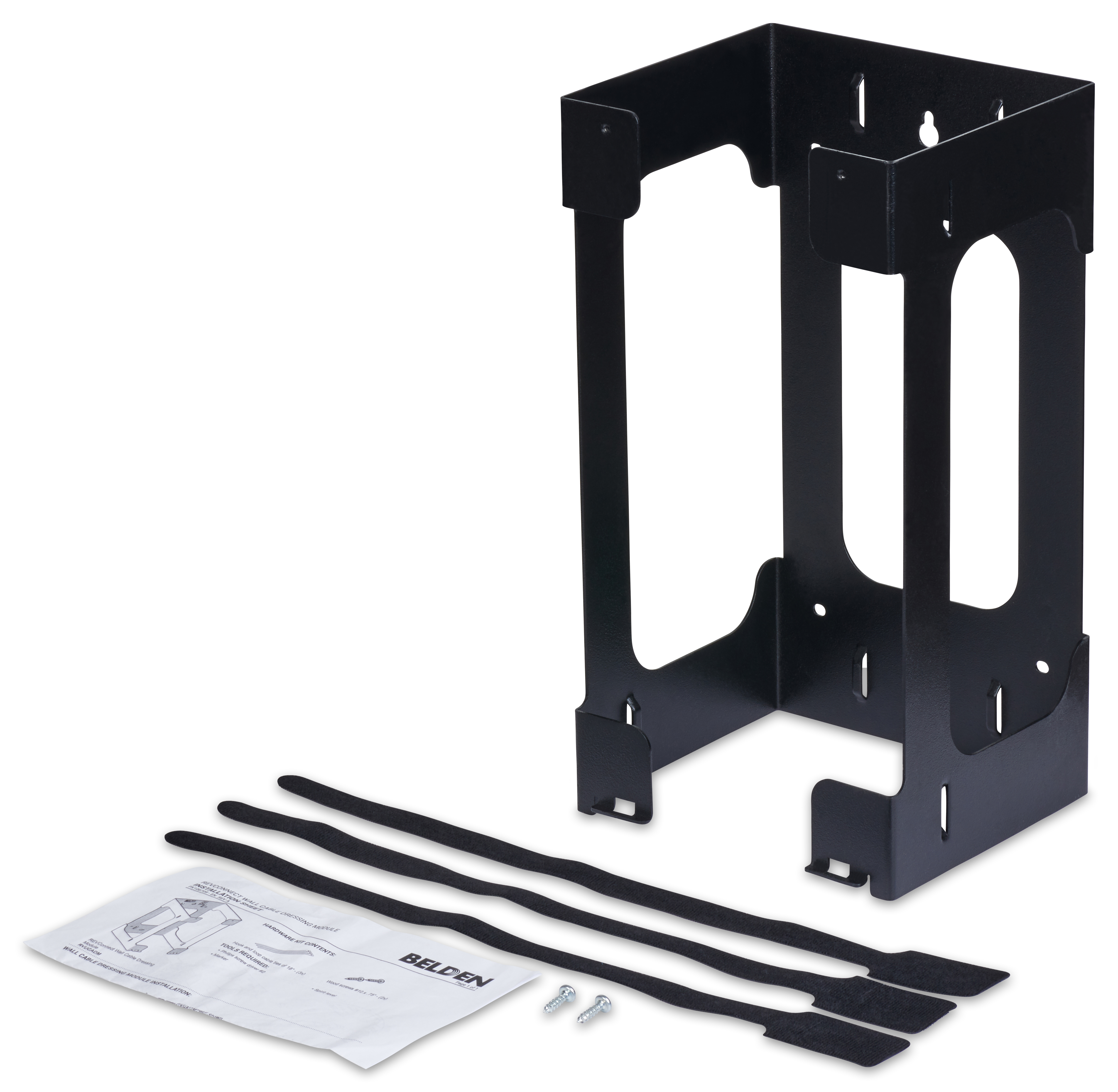

REVConnect WM Dressing Module

REVConnect Wall-Mount Cable Dressing Module

The REVConnect Wall-Mount Cable Dressing Module is designed for use with the REVConnect Wall-Mount Kits.

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Suitable Applications	IBDN System 4800,3600,2400,1200,10GX

Height	15.25 in
Width	8.11 in
Depth	7.28 in
Packaging	Individually packaged in a cardboard box.
Weight	3.9 lbs

Description	Material	Color
Module	Steel	Black

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C

UL Rating	UL1863

Environmental Space	Indoor
EU Directive 2002/95/EC (RoHS)	Yes

Safety Listing	c(UL)us Listed

Related Parts	REVConnect wall termination kit, REVConnect wall connector mount, REVConnect wall cable dressing module, REVConnect cable management channel, REVConnect wall horizontal channel kit

Included Parts	2 Wood screws; 3 Velcro cable tie; 1 installation guide

Notes	Refer to Installation Guide PX106709 (English) or visit our web site at http://www.belden.com

Update and Revision	Revision Number: 0.26 Revision Date: 11-09-2022

Part Numbers

Item #	Color	UPC
RVUCADM	Black	611589237949
