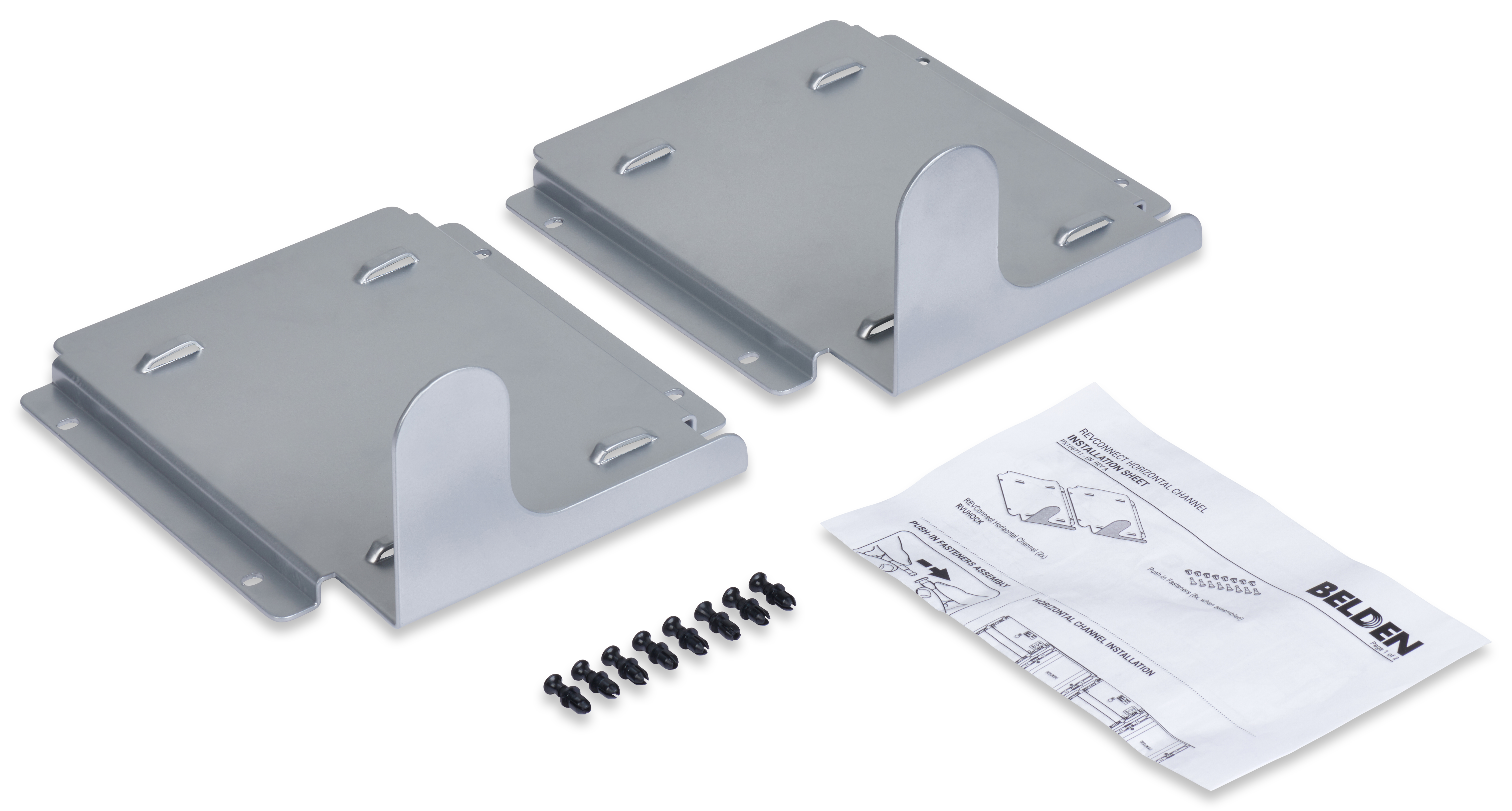

REVConnect WM Hor. Channel Kit

RVUHOCK-REVConnect Wall-Mount Horizontal Channel Kit

The REVConnect Wall-Mount Horizontal Channel Kit comes with 2 components per kit

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Suitable Applications	IBDN System 4800,3600,2400,1200,10GX

Height	4.575 in
Width	8.229 in
Depth	9.241 in
Packaging	Packaged in a cardboard box
Weight	1.6 lbs

Description	Material	Color
Module	Aluminum	Silver

Installation Temperature Range	-10°C To +60°C
Storage Temperature Range	-40°C To +70°C

UL Rating	UL1863

Environmental Space	Indoor
EU Directive 2002/95/EC (RoHS)	Yes

Safety Listing	c(UL)us Listed

Related Parts	REVConnect wall termination kit, REVConnect wall connector mount, REVConnect wall cable dressing module, REVConnect cable management channel, REVConnect wall horizontal channel kit

Included Parts	8 grommets; 8 plungers; 1 installation guide

Notes	Refer to Installation Guide PX106711 (English) or visit our web site at http://www.belden.com

Update and Revision	Revision Number: 0.231 Revision Date: 11-19-2024

Part Numbers

Item #	Color	UPC
RVUHOCK	Silver	611589237963
